2011 Yamaha Stryker Seat OEM Parts Diagram

Submodel STRYKER - XVS13CACB - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

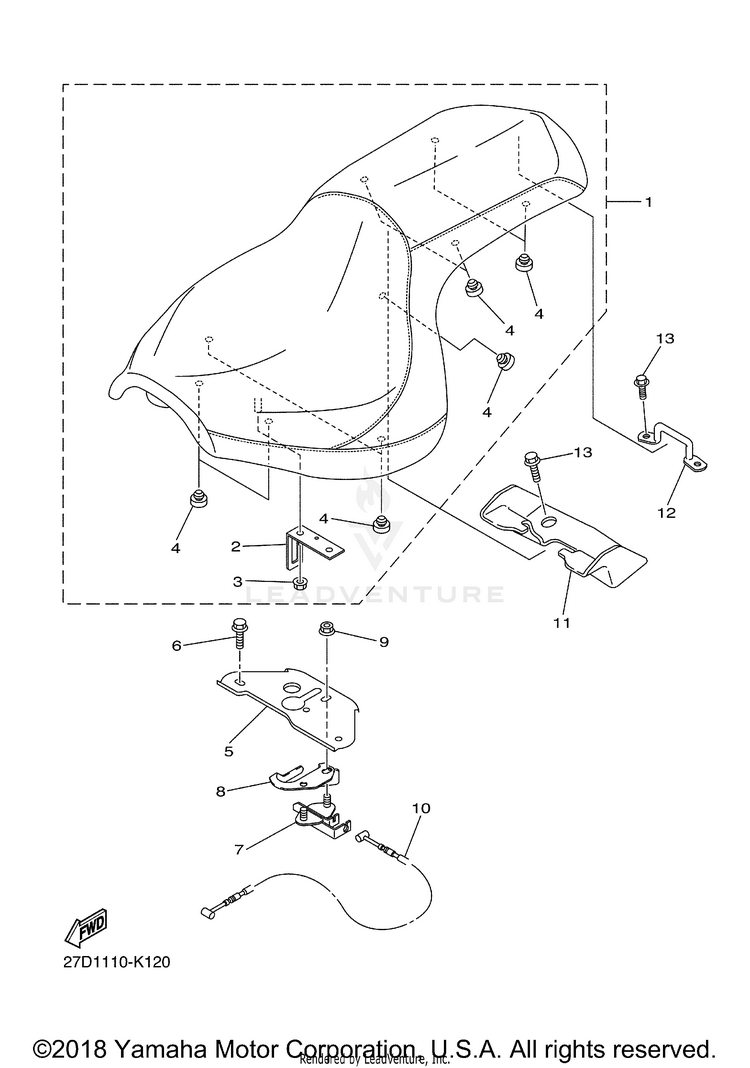

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
127D-24730-01-00

(replaces part #
27D-24730-00-00)

DOUBLE SEAT ASSY$423.99$349.98Usually ships in 7-10 business days
24NK-24728-00-00BRACKET, SEAT$12.99$10.65Usually ships in 7-10 business days
395604-06200-00

(replaces part #
95602-06200-00)

NUT, U FLANGE$2.95$2.5410+ In-Stock
422W-24741-00-00PAD, SEAT$9.49$7.4010+ In-Stock
53D8-21341-10-00BRACKET, SEAT 1$15.49$12.70Usually ships in 7-10 business days
695817-06012-00

(replaces part #
95802-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
74BP-24780-00-00SEAT LOCK ASSY$105.99$82.67Usually ships in 7-10 business days
827D-24792-00-00PLATE$15.49$12.70Usually ships in 7-10 business days
995702-06500-00NUT, WITH WASHER$2.60$2.2410+ In-Stock
105PX-2478E-00-00CABLE, SEAT LOCK$22.99$18.85Usually ships in 7-10 business days
1127D-2475N-00-00BRACKET$20.99$17.21Usually ships in 7-10 business days
121D7-2475R-00-00BRACKET 6$18.99$15.57Usually ships in 7-10 business days
1395022-08012-00BOLT, FLANGE$13.49$10.524 In-Stock
