2011 Yamaha TW200 Steering OEM Parts Diagram

Submodel TW200 - TW200A1C - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

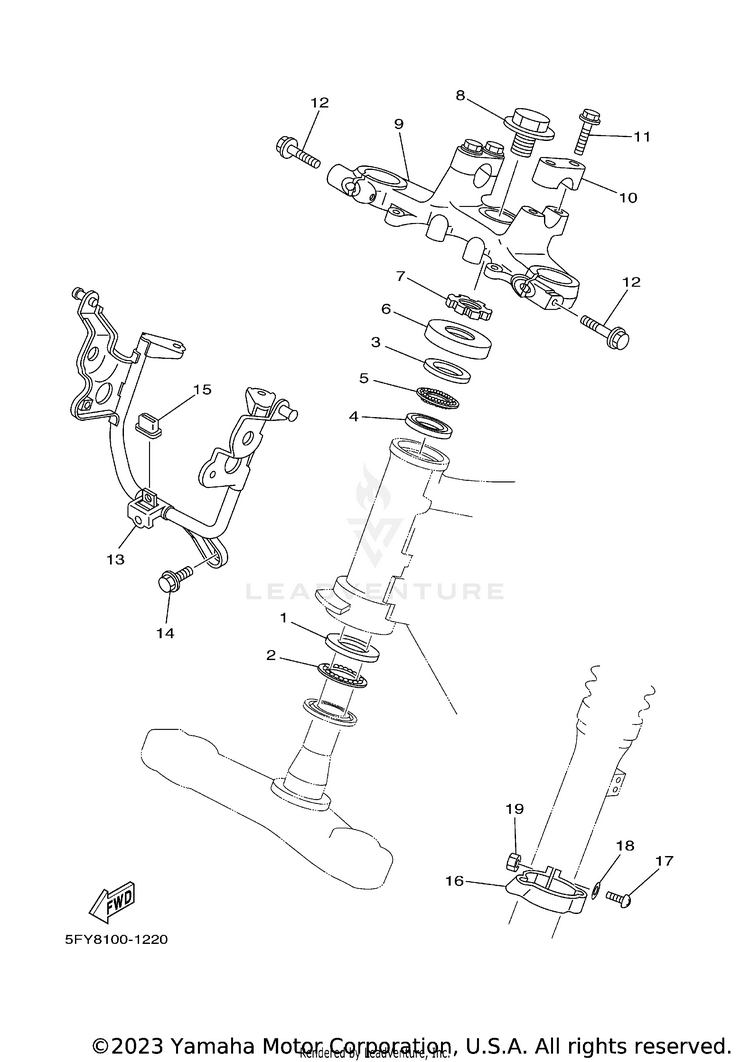

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B6E-23412-00-00

(replaces part #
156-23412-00-00)

RACE, BALL 2$14.49$11.3010+ In-Stock
2B6E-2341E-00-00

(replaces part #
156-2341E-00-00)

RETAINER, BALL BEARI$16.49$13.521 In-Stock
3BP2-23411-00-00

(replaces part #
22F-23411-01-00)

RACE, BALL 1$12.49$9.747 In-Stock
4BP2-23412-00-00

(replaces part #
22F-23412-01-00)

RACE, BALL 2$8.49$6.626 In-Stock
5BP2-2341E-00-00

(replaces part #
22F-2341E-00-00)

RETAINER, BALL BEARI$15.49$12.083 In-Stock
636X-23416-00-00COVER, BALL RACE 2$14.49$11.88Usually ships in 7-10 business days
790179-25004-00NUT$26.99$21.055 In-Stock
890105-14102-00BOLT, FLANGE$6.49$5.063 In-Stock
92JX-23435-10-35

(replaces part #
2JX-23435-00-35)

CROWN, HANDLE | SL FOR PWS1$146.99$114.65Usually ships in 7-10 business days
101E6-23441-10-35HOLDER, HANDLE UPPER | SL FOR PWS1$25.99$20.274 In-Stock
1195814-08035-00

(replaces part #
95824-08035-00)

BOLT, FLANGE$9.49$7.405 In-Stock
1295024-08050-00BOLT, FLANGE (SMALL HEAD)$9.49$7.4010+ In-Stock
135FY-23174-00-00STAY, HEADLIGHT$106.99$83.454 In-Stock
1495817-06012-00

(replaces part #
95807-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
1530X-23445-00-00DAMPER$10.99$8.574 In-Stock
1634X-23317-00-00HOLDER, CABLE$7.49$5.845 In-Stock
1798507-05018-00SCREW, PAN HEAD$3.55$3.0510+ In-Stock
1892907-05600-00WASHER, PLATE$1.00$0.8610+ In-Stock
1995317-05600-00

(replaces part #
95307-05600-00)

NUT$2.50$2.153 In-Stock
