2011 Yamaha V-Star XVS950 Electrical 1 OEM Parts Diagram

Submodel V STAR 950 - XVS95ACL - 2011

Shop Aftermarket Parts

ELECTRICAL 1

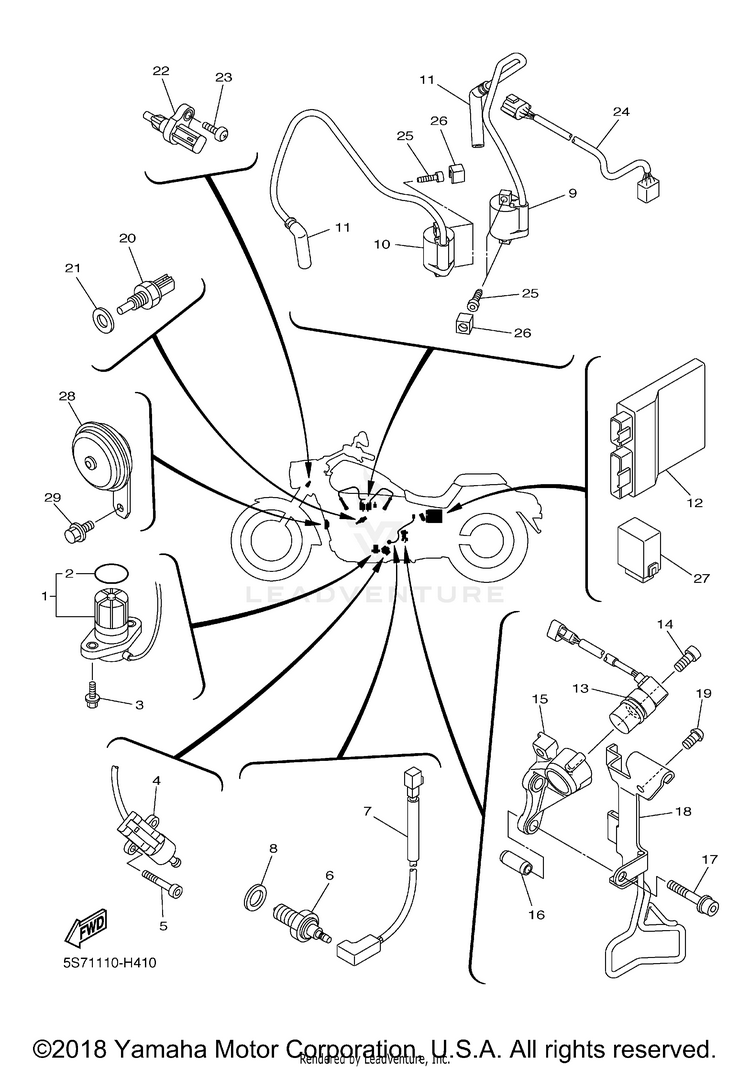

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15S7-85720-00-00OIL LEVEL GAUGE ASSY$120.99$94.37Usually ships in 7-10 business days
25VY-8A8E0-00-00O-RING$15.49$12.083 In-Stock
395022-06016-00BOLT, FLANGE$3.90$3.3510+ In-Stock
43D8-82566-71-00

(replaces part #
3D8-82566-70-00)

SWITCH, SIDE STAND$86.99$67.85Usually ships in 7-10 business days
590110-05025-00

(replaces part #
90110-05217-00)

BOLT, HEXAGON SOCKET$2.45$2.20Usually ships in 7-10 business days
63GB-82540-01-00NEUTRAL SWITCH ASSY$63.99$49.9110+ In-Stock
75S7-82509-10-00WIRE, SUB LEAD$7.99$7.19Usually ships in 7-10 business days
890430-10148-00GASKET$5.99$4.6710+ In-Stock
95S7-82310-03-00

(replaces part #
5S7-82310-00-00)

IGNITION COIL ASSY$68.99$55.26Usually ships in 7-10 business days
101D7-82310-13-00

(replaces part #
1D7-82310-10-00)

IGNITION COIL ASSY$186.99$145.85Usually ships in 7-10 business days
115S7-82370-00-00PLUG CAP ASSY$78.99$61.61Usually ships in 7-10 business days
125S7-8591A-00-00ENGINE CONTROL UNIT ASSY$843.99$704.49Usually ships in 7-10 business days
135S7-83755-01-00

(replaces part #
5S7-83755-00-00)

SENSOR, SPEED$125.99$98.27Usually ships in 7-10 business days
1491312-06014-00

(replaces part #
90110-06168-00)

BOLT$5.49$4.2810+ In-Stock
155S7-81948-00-00BRACKET$77.99$60.83Usually ships in 7-10 business days
1699530-08012-00PIN, DOWEL$6.99$5.4510+ In-Stock
1790110-06300-00BOLT, HEXAGON SOCKET HEAD$3.40$3.06Usually ships in 7-10 business days
185S7-81845-01-00PLATE$19.49$15.98Usually ships in 7-10 business days
1990149-06041-00

(replaces part #
90149-06040-00)

SCREW$1.95$1.76Usually ships in 7-10 business days
2052B-H3591-00-00

(replaces part #
4P9-83591-00-00)

THERMO UNIT$37.99$29.6310+ In-Stock
2190201-10128-00WASHER, PLATE$4.05$3.5010+ In-Stock
225YU-85886-00-00SENSOR, AIR TEMPERATURE$37.99$29.6310+ In-Stock
2398517-05012-00

(replaces part #
98502-05012-00)

SCREW, PAN HEAD$5.49$4.283 In-Stock
245S7-82509-00-00WIRE, SUB LEAD$42.99$35.25Usually ships in 7-10 business days
2591380-06016-00BOLT$7.99$7.19Usually ships in 7-10 business days
265S7-21399-00-00CAP$2.55$2.30Usually ships in 7-10 business days
275S7-83350-01-00

(replaces part #
5S7-83350-00-00)

FLASHER RELAY ASSY$107.99$84.23Usually ships in 7-10 business days
283D8-83371-00-00HORN$73.99$57.71Usually ships in 7-10 business days
2990105-082A5-00BOLT, WASHER BASED$3.80$3.42Usually ships in 7-10 business days
