2011 Yamaha WR250F Radiator Hose OEM Parts Diagram

Submodel WR250F - WR250FA - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

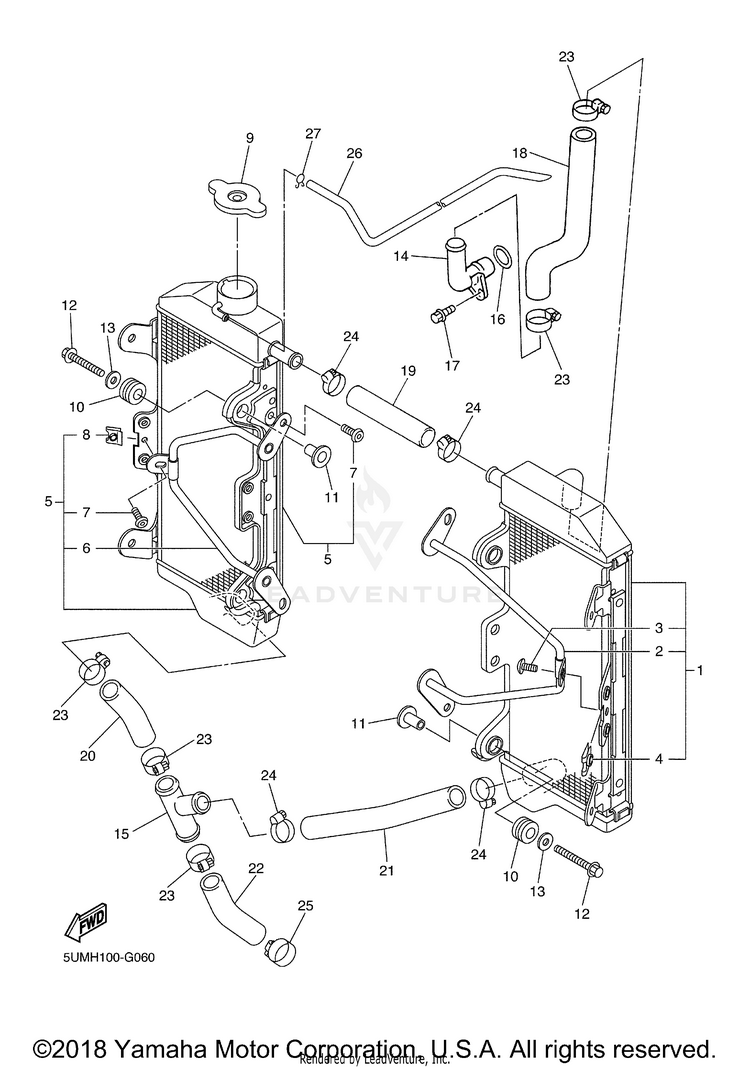

RADIATOR HOSE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15UM-1240A-E0-00RADIATOR ASSY$470.99$391.80Usually ships in 7-10 business days
22S2-12464-70-00STAY, RADIATOR$85.99$67.07Usually ships in 7-10 business days
392012-06010-00BOLT, BUTTON HEAD$4.65$4.0010+ In-Stock
490183-060A6-00NUT, SPRING$5.99$4.6710+ In-Stock
55UM-12461-E0-00RADIATOR COMP$471.99$392.03Usually ships in 7-10 business days
62S2-12464-70-00STAY, RADIATOR$85.99$67.07Usually ships in 7-10 business days
792012-06010-00BOLT, BUTTON HEAD$4.65$4.0010+ In-Stock
890183-060A6-00NUT, SPRING$5.99$4.6710+ In-Stock
94FL-12462-00-00

(replaces part #
22W-12462-00-00)

CAP, RADIATOR$68.99$53.8110+ In-Stock
1090480-15528-00GROMMET$9.49$7.4010+ In-Stock
1190387-06065-00COLLAR$13.49$10.5210+ In-Stock
1290105-06111-00BOLT, FLANGE$9.49$7.4010+ In-Stock
1390201-06571-00WASHER, PLATE$10.49$8.1810+ In-Stock
145XC-12481-90-00PIPE 1$52.99$41.331 In-Stock
155XC-12482-90-00PIPE 2$38.99$31.97Usually ships in 7-10 business days
1693210-15566-00

(replaces part #
93210-15414-00)

O-RING$8.49$6.6210+ In-Stock
1791317-06012-00

(replaces part #
91312-06012-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
185XC-12576-90-00HOSE 1$32.99$27.05Usually ships in 7-10 business days
191C3-12482-00-00PIPE 2$8.49$6.626 In-Stock
205XC-12578-90-00HOSE 3$30.99$24.171 In-Stock
215XC-12579-91-00HOSE 4$26.99$22.13Usually ships in 7-10 business days
225XC-1244H-90-00HOSE 5$19.99$15.593 In-Stock
2390450-22M14-00

(replaces part #
90450-25001-00)

HOSE CLAMP ASSY$17.49$13.6410+ In-Stock
2490450-18M09-00

(replaces part #
90450-22001-00)

HOSE CLAMP ASSY$11.49$10.0710+ In-Stock
2590450-32003-00HOSE CLAMP ASSY$18.49$14.422 In-Stock
2691A20-05145-00

(replaces part #
91A20-05140-00)

TUBE, FLEXIBLE VINYL$32.99$25.735 In-Stock
2790467-090A2-00CLIP$4.75$4.0810+ In-Stock
