2011 Yamaha XT250 Handle Switch Lever OEM Parts Diagram

Submodel XT250 - XT250AC - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH LEVER

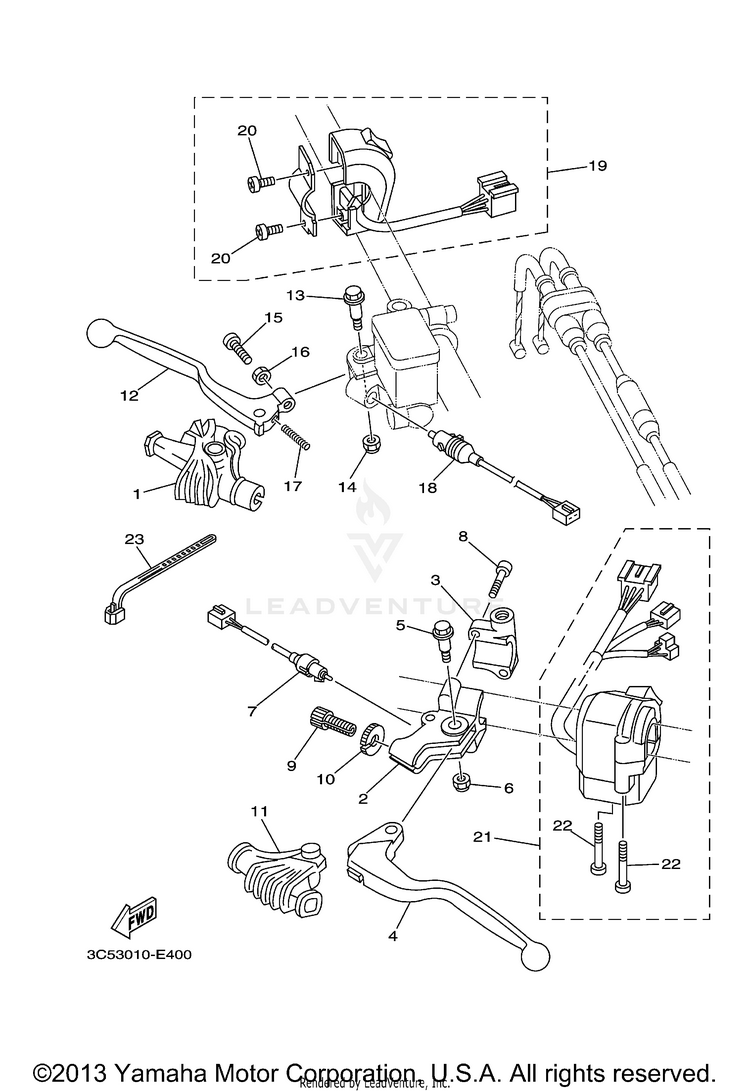

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11T5-26372-00-00COVER, HANDLE LEVER 1$22.99$17.934 In-Stock
25XT-82911-00-00HOLDER, LEVER 1$36.99$28.855 In-Stock
333G-82913-01-00HOLDER, LEVER LOWER 1$21.99$17.159 In-Stock
423X-83912-02-00

(replaces part #
23X-83912-01-00)

LEVER 1$30.99$24.1710+ In-Stock
590109-06799-00BOLT$5.49$4.288 In-Stock
695617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
73C5-82917-00-00SWITCH$45.99$35.871 In-Stock
891317-05020-00BOLT$3.55$3.0510+ In-Stock
990123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
1090179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
111E6-26372-00-00COVER, HANDLE LEVER 1$25.99$20.272 In-Stock
1255Y-83922-02-00

(replaces part #
55Y-83922-01-00)

LEVER 2$41.99$32.756 In-Stock
1390109-06577-00BOLT$6.49$5.0610+ In-Stock
1495617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1590149-06131-00SCREW$9.49$7.4010+ In-Stock
1690170-06010-00NUT$9.49$7.404 In-Stock
1790501-10312-00SPRING, COMPRESSION$9.49$7.405 In-Stock
183C5-83980-00-00FRONT STOP SWITCH ASSY$46.99$38.53Usually ships in 7-10 business days
193C5-83975-11-00

(replaces part #
3C5-83975-00-00)

SWITCH, HANDLE 2$61.99$48.35Usually ships in 7-10 business days
2098507-05018-00SCREW, PAN HEAD$3.55$3.0510+ In-Stock
213C5-83973-00-00SWITCH, HANDLE 3$251.99$196.55Usually ships in 7-10 business days
2298517-05030-00

(replaces part #
98507-05030-00)

SCREW, PAN HEAD$11.49$8.962 In-Stock
2390464-25004-00CLAMP$4.50$3.876 In-Stock
