2011 Yamaha YZ450F Steering Handle Cable OEM Parts Diagram

Submodel YZ450F - YZ450FAL - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

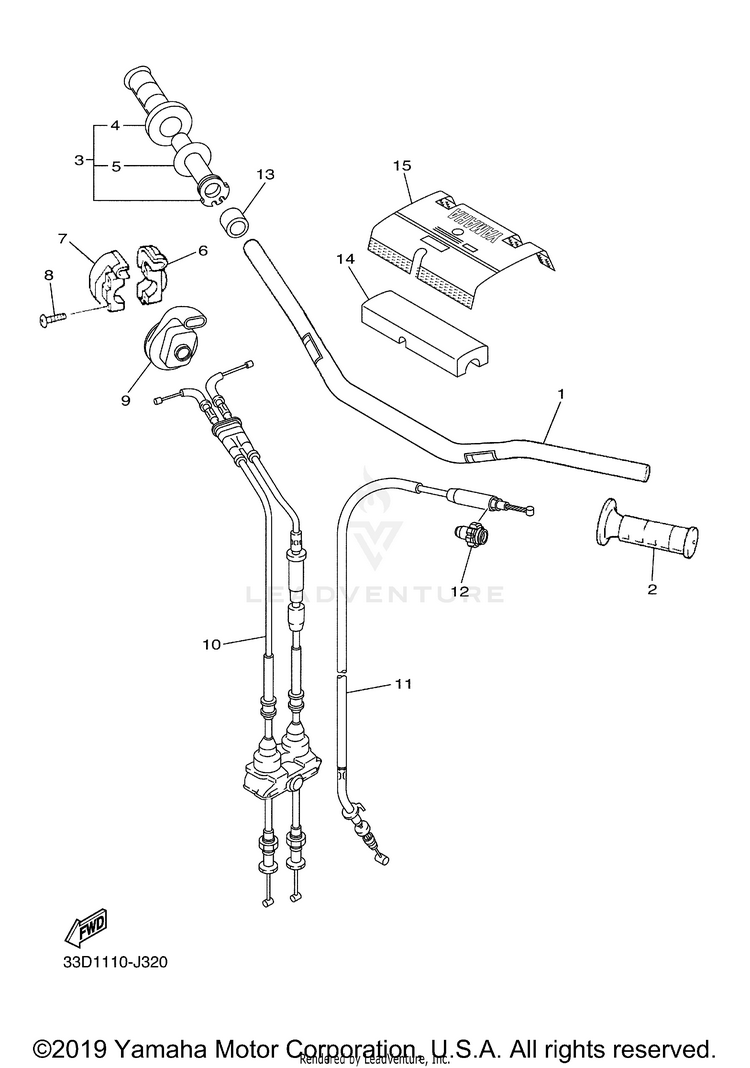

STEERING HANDLE CABLE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15XC-26111-L2-00

(replaces part #
5XC-26111-L1-00)

HANDLEBAR$274.99$214.49Usually ships in 7-10 business days
24GY-26241-00-00GRIP$32.99$25.7310+ In-Stock
35TJ-26240-C0-00GRIP ASSY$79.99$62.393 In-Stock
44GY-26242-00-00GRIP (RIGHT)$32.99$25.7310+ In-Stock
53Y1-26249-00-00RING, LEAF$10.99$8.5710+ In-Stock
65BE-26281-01-00

(replaces part #
5BE-26281-00-00)

CAP, GRIP UPPER$64.99$50.6910+ In-Stock
75BE-26282-00-00CAP, GRIP UNDER$44.99$35.0910+ In-Stock
898517-05020-00

(replaces part #
98507-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
95SF-26287-11-00

(replaces part #
5SF-26287-10-00)

COVER, CAP GRIP$17.99$14.0310+ In-Stock
1033D-26302-00-00THROTTLE CABLE ASSY$82.99$64.73Usually ships in 7-10 business days
1133D-26335-00-00CABLE, CLUTCH$62.99$49.133 In-Stock
1234P-26342-00-00BOOT, CABLE$12.99$10.139 In-Stock
1390387-225N2-00COLLAR$23.99$18.711 In-Stock
1417D-26124-00-00PROTECTOR, HANDLEBAR$48.99$38.212 In-Stock
155XC-26143-L0-00COVER, HANDLEBAR UPPER 1 | UR FOR DPBSE$52.99$41.33Usually ships in 7-10 business days
155XC-26143-M0-00COVER, HANDLEBAR UPPER 1 | UR FOR YB$62.99$49.13Not Shipping
