2011 Yamaha YZF-R1 Headlight OEM Parts Diagram

Submodel YZFR1 - YZFR1ACB - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

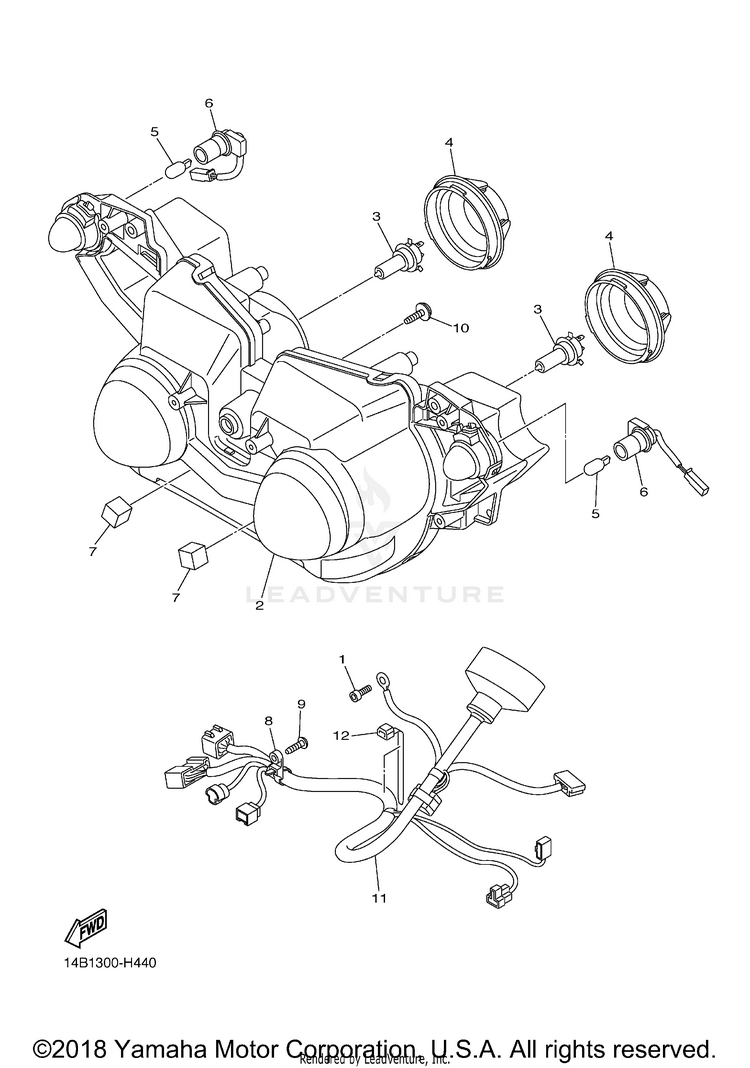

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
191317-05012-00BOLT$2.75$2.3610+ In-Stock
214B-84303-02-00

(replaces part #
14B-84303-01-00)

HEADLIGHT UNIT ASSY$721.99$629.25Usually ships in 7-10 business days
34SV-84314-00-00

(replaces part #
5PS-84314-00-00)

BULB (12V-55W) | HALOGEN$58.99$46.013 In-Stock
414B-84396-00-00COVER$24.99$20.49Usually ships in 7-10 business days
54SV-84347-00-00

(replaces part #
5DM-84347-00-00)

BULB (12V-5W)$9.49$8.544 In-Stock
614B-84312-00-00CORD ASSY$104.99$81.89Usually ships in 7-10 business days
714B-2836U-00-00DAMPER, LOCATING 2$7.49$6.74Usually ships in 7-10 business days
890464-47002-00CLAMP$4.00$3.60Usually ships in 7-10 business days
997702-50016-00SCREW, TAPPING$2.60$2.249 In-Stock
1090160-05007-00SCREW, ROUND TAPPING$9.49$7.405 In-Stock
1114B-84359-10-00CORD, HEADLIGHT$190.99$148.97Usually ships in 7-10 business days
1290464-15195-00CLAMP$4.41$3.7910+ In-Stock
