2012 Yamaha GRIZZLY 300 2x4 Shift Cam Fork OEM Parts Diagram

Submodel GRIZZLY 300 - YFM30GBGR - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

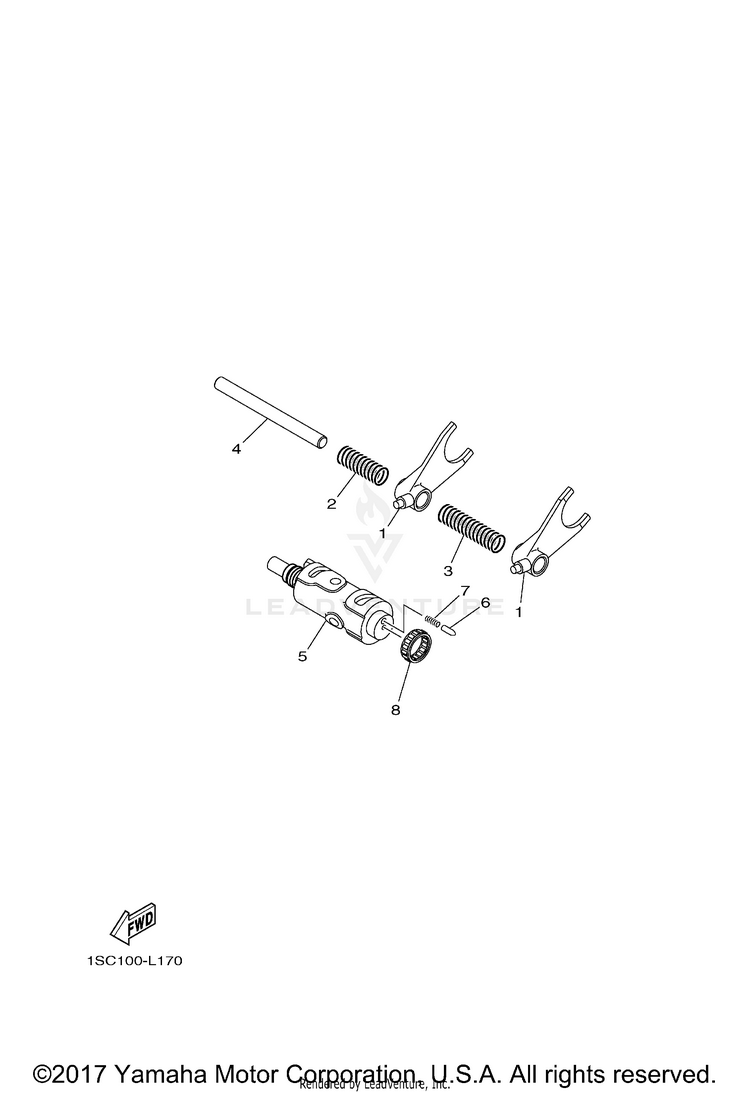

SHIFT CAM FORK

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11SC-E8511-00-00FORK, SHIFT 1$66.99$52.25Usually ships in 7-10 business days
21SC-E8123-00-00SPRING$3.15$2.84Usually ships in 7-10 business days
31SC-E8143-00-00SPRING$3.35$3.02Usually ships in 7-10 business days
41SC-E8531-00-00BAR, SHIFT FORK GUIDE 1$18.99$15.57Usually ships in 7-10 business days
51SC-E8540-00-00SHIFT CAM ASSY$182.99$144.58Usually ships in 7-10 business days
61SC-E8542-00-00POINT, NEUTRAL$3.65$3.28Usually ships in 7-10 business days
71SC-E8545-00-00SPRING$4.10$3.69Usually ships in 7-10 business days
81SC-E5596-00-00BEARING$24.99$20.49Usually ships in 7-10 business days
