2012 Yamaha RAPTOR 125 Crankcase OEM Parts Diagram

Submodel RAPTOR 125 - YFM125RBW - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

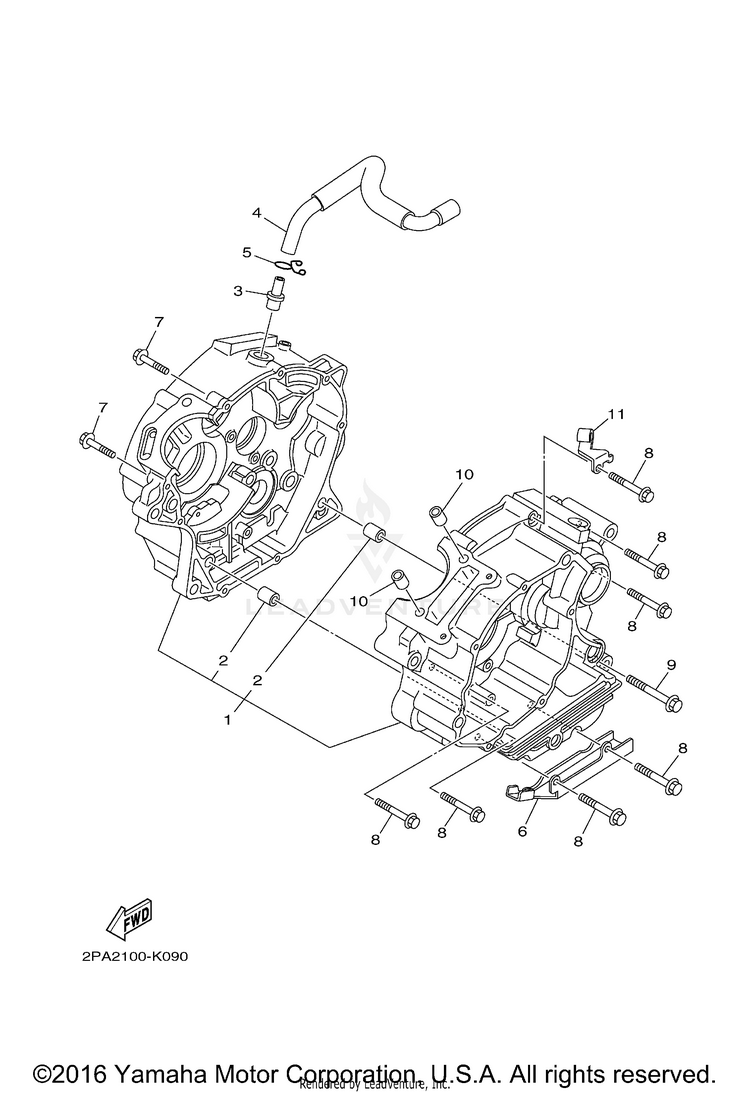

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15VL-W1510-11-00CRANKCASE ASSY$468.99$365.81Usually ships in 7-10 business days
299530-10114-00PIN, DOWEL$2.65$2.4810+ In-Stock
34FP-E1167-00-00PIPE, BREATHER 2$2.50$2.151 In-Stock
42PA-E1166-00-00PIPE, BREATHER 1$27.99$21.833 In-Stock
590467-12052-00

(replaces part #
90467-12828-00)

CLIP$10.49$8.1810+ In-Stock
690462-16801-00CLAMP$4.60$4.14Usually ships in 7-10 business days
795022-06030-00BOLT, FLANGE$1.80$1.5510+ In-Stock
895022-06045-00BOLT, FLANGE$4.65$4.0010+ In-Stock
995022-06055-00BOLT, FLANGE$1.40$1.264 In-Stock
1099530-10114-00PIN, DOWEL$2.65$2.4810+ In-Stock
115VL-E5441-20-00

(replaces part #
5VL-E5441-01-00)

HOLDER, CLUTCH CABLE$4.55$3.912 In-Stock
