2012 Yamaha RAPTOR 250 Intake OEM Parts Diagram

Submodel RAPTOR 250 - YFM25RBW - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

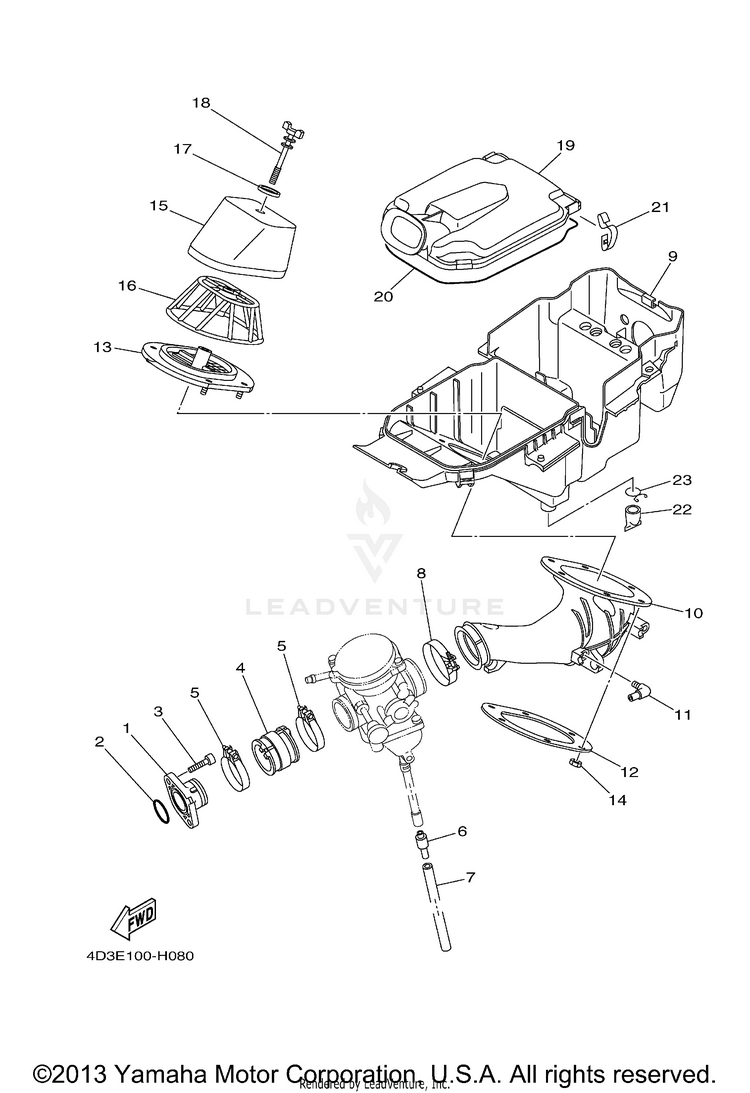

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14D3-13586-00-00JOINT, CARBURETOR 1$64.99$50.69Usually ships in 7-10 business days
293210-35537-00O-RING$15.49$12.0810+ In-Stock
391314-06020-00

(replaces part #
91312-06020-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
44D3-13596-00-00JOINT, CARBURETOR 2$63.99$49.9110+ In-Stock
590450-47002-00HOSE CLAMP ASSY$9.49$7.4010+ In-Stock
624W-14193-00-00PIPE$45.99$35.874 In-Stock
791A21-07020-00

(replaces part #
91A20-07010-00)

HOSE$11.49$8.964 In-Stock
890450-58003-00HOSE CLAMP ASSY$20.99$16.3710+ In-Stock
94D3-14411-00-00CASE, AIR CLEANER 1$80.99$70.176 In-Stock
104D3-14453-01-00

(replaces part #
4D3-14453-00-00)

JOINT, AIR CLEANER 1$114.99$89.696 In-Stock
1131A-14419-00-00PIPE$8.49$6.626 In-Stock
122XJ-14477-00-00PLATE$46.99$36.652 In-Stock
134D3-14459-00-00HOLDER, GUIDE$46.99$36.653 In-Stock
1495617-05100-00

(replaces part #
95602-05100-00)

NUT, U$10.49$8.1810+ In-Stock
152XJ-14451-01-00

(replaces part #
2XJ-14451-00-00)

ELEMENT, AIR CLEANER$35.99$28.077 In-Stock
AFTERMARKET ALTERNATIVE
$12.95$12.8810+ In-Stock
162XJ-14458-00-00GUIDE$34.99$27.2910+ In-Stock
1790209-06096-00WASHER$10.49$8.1810+ In-Stock
1890122-06005-00

(replaces part #
90122-06035-00)

BOLT, WING$13.49$10.5210+ In-Stock
194D3-14412-00-00CAP, CLEANER CASE 1$32.99$25.735 In-Stock
201VJ-14462-00-00

(replaces part #
4D3-14452-00-00)

SEAL$19.99$15.5910+ In-Stock
215TH-14436-00-00

(replaces part #
5GH-14436-00-00)

HOOK$10.99$8.5710+ In-Stock
2259V-14457-00-00SEAL$7.49$5.8410+ In-Stock
2390467-220A1-00CLIP$6.49$5.0610+ In-Stock
