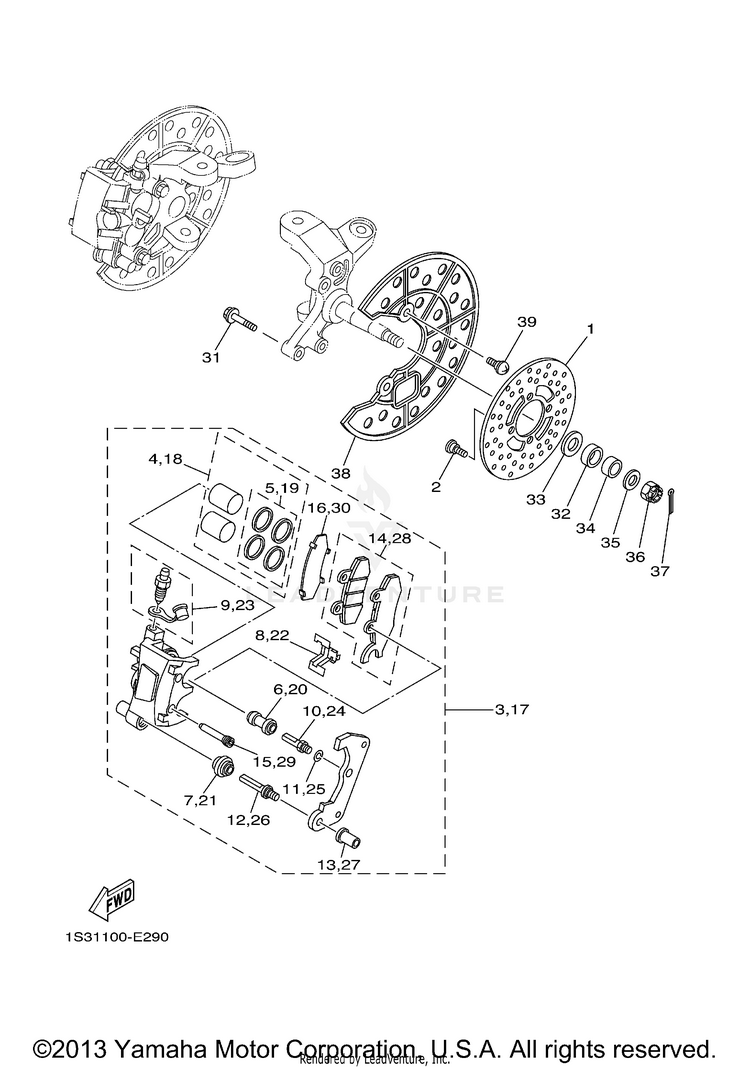

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13GD-2582T-10-00DISC, BRAKE (LEFT)$219.99$171.592 In-Stock
290109-08087-00

(replaces part #
90109-08082-00)

BOLT$3.15$2.7110+ In-Stock
31S3-2580T-01-00CALIPER ASSY (LEFT)$292.99$241.40Usually ships in 7-10 business days
45TG-W0057-00-00PISTON ASSY, CALIPER$84.99$66.291 In-Stock
53LC-W0047-50-00CALIPER SEAL KIT$63.99$49.911 In-Stock
61UY-25937-51-00BOOT 2$15.49$12.0810+ In-Stock
73JD-25917-00-00BOOT, CALIPER$9.49$7.4010+ In-Stock
83JD-25919-00-00SUPPORT, PAD$30.99$24.173 In-Stock
936Y-W0048-00-00

(replaces part #
1UY-W0048-50-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
101UY-25926-51-00BOLT$4.85$4.179 In-Stock
111UY-25938-51-00WASHER, SPRING$9.49$7.402 In-Stock
123JD-25926-00-00BOLT$8.49$6.628 In-Stock
133JD-25961-00-00NUT$9.49$7.40Not Shipping
141S3-W0045-00-00BRAKE PAD KIT | LH$50.99$39.771 In-Stock
155TG-25924-00-00PIN, PAD$17.99$14.0310+ In-Stock
161S3-25828-00-00SHIM, CALIPER$17.99$14.033 In-Stock
171S3-2580U-01-00CALIPER ASSY (RIGHT)$289.99$239.14Usually ships in 7-10 business days
185TG-W0057-00-00PISTON ASSY, CALIPER$84.99$66.291 In-Stock
193LC-W0047-50-00CALIPER SEAL KIT$63.99$49.911 In-Stock
201UY-25937-51-00BOOT 2$15.49$12.0810+ In-Stock
213JD-25917-00-00BOOT, CALIPER$9.49$7.4010+ In-Stock
223JD-25919-00-00SUPPORT, PAD$30.99$24.173 In-Stock
2336Y-W0048-00-00

(replaces part #
1UY-W0048-50-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
241UY-25926-51-00BOLT$4.85$4.179 In-Stock
251UY-25938-51-00WASHER, SPRING$9.49$7.402 In-Stock
263JD-25926-00-00BOLT$8.49$6.628 In-Stock
273JD-25961-00-00NUT$9.49$7.40Not Shipping
281S3-W0045-10-00BRAKE PAD KIT | RH$50.99$39.771 In-Stock
295TG-25924-00-00PIN, PAD$17.99$14.0310+ In-Stock
301S3-25828-00-00SHIM, CALIPER$17.99$14.033 In-Stock
3190105-08184-00BOLT, FLANGE$6.49$5.068 In-Stock
3290387-20005-00COLLAR$28.99$22.6110+ In-Stock
3390201-20022-00WASHER, PLATE$9.49$7.4010+ In-Stock
3490387-150R1-00COLLAR$8.49$6.6210+ In-Stock
3590201-14220-00

(replaces part #
90201-14586-00)

WASHER, PLATE$9.49$7.4010+ In-Stock
3690171-14002-00NUT, CASTLE$10.49$8.1810+ In-Stock
3791401-30025-00

(replaces part #
91402-30025-00)

PIN, COTTER$9.49$7.409 In-Stock
385TG-2514A-00-00RING, WHEEL 1 (LEFT)$12.99$10.136 In-Stock
3990149-06117-00SCREW$9.49$7.4010+ In-Stock
