2012 Yamaha RAPTOR 700 Rear Wheel OEM Parts Diagram

Submodel RAPTOR 700R - YFM7RBL - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR WHEEL

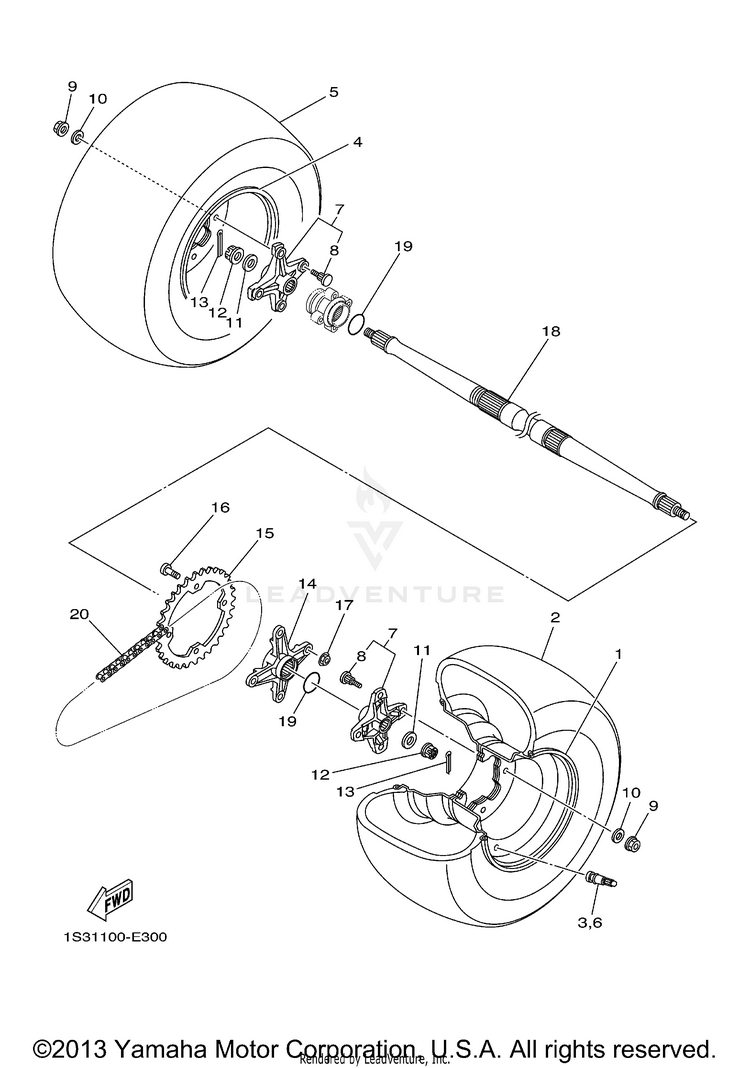

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11S3-25390-00-YX

(replaces part #
1S3-25390-00-00)

REAR WHEEL COMP.$378.99$295.61Usually ships in 7-10 business days
294110-09012-00TIRE(AT20X10-R9 KT345 T/L N) | DUNLOP$210.99$166.75Usually ships in 7-10 business days
393900-00030-00

(replaces part #
93900-00022-00)

VALVE, RIM (TR412) | TAIHEIYO$18.49$14.425 In-Stock
41S3-25390-00-YX

(replaces part #
1S3-25390-00-00)

REAR WHEEL COMP.$378.99$295.61Usually ships in 7-10 business days
594110-09012-00TIRE(AT20X10-R9 KT345 T/L N) | DUNLOP$210.99$166.75Usually ships in 7-10 business days
693900-00030-00

(replaces part #
93900-00022-00)

VALVE, RIM (TR412) | TAIHEIYO$18.49$14.425 In-Stock
71PE-F53K0-00-00

(replaces part #
1S3-25383-20-00)

WHEEL SHAFT COLLAR ASSY$80.99$63.1710+ In-Stock
890114-10013-00BOLT, SERRATION$5.99$4.6710+ In-Stock
995704-10500-00

(replaces part #
95702-10500-00)

NUT, WITH WASHER-$2.285 In-Stock
1092990-10200-00

(replaces part #
92902-10200-00)

WASHER, PLAIN$3.80$3.2710+ In-Stock
1190201-16023-00WASHER, PLATE$9.49$7.4010+ In-Stock
1290171-16002-00NUT, CASTLE$22.99$17.9310+ In-Stock
1390252-03001-00PIN, COTTER$2.10$1.816 In-Stock
141S3-25386-00-00COLLAR, SPROCKET AXLE$179.99$140.393 In-Stock
155TG-25438-10-00SPROCKET, DRIVEN (38T)$46.99$36.6510+ In-Stock
1690109-10013-00BOLT$8.49$6.6210+ In-Stock
1790185-10011-00NUT, SELF-LOCKING$4.95$4.2610+ In-Stock
18BFK-F5381-01-00

(replaces part #
1S3-25381-10-00)

AXLE, WHEEL$349.99$272.995 In-Stock
1993210-36769-00O-RING$12.49$9.7410+ In-Stock
2094582-13098-00CHAIN (DID520MXV 98LE)$150.99$117.772 In-Stock
