2012 Yamaha RAPTOR 90 Starter OEM Parts Diagram

Submodel RAPTOR 90 - YFM90RBL - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

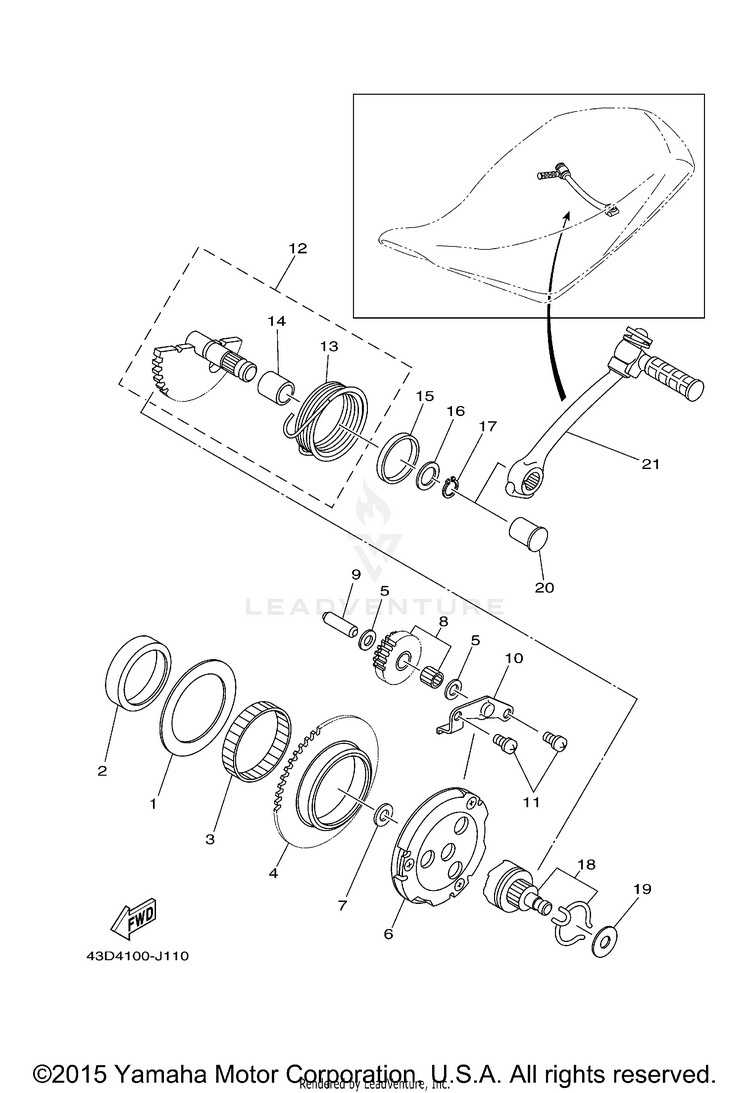

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
190201-551P8-00

(replaces part #
43D-E1558-00-00)

WASHER, PLATE(3WF)$5.60$5.04Usually ships in 7-10 business days
243D-E5538-00-00BOSS, GEAR 2$34.99$28.69Usually ships in 7-10 business days
343D-E5596-00-00BEARING$32.99$27.05Usually ships in 7-10 business days
443D-E5524-00-00WHEEL, STARTER$131.99$102.95Usually ships in 7-10 business days
543D-E3995-00-00WASHER$9.49$7.402 In-Stock
643D-E5570-00-00STARTER CLUTCH ASSY$184.99$144.292 In-Stock
71SC-F4746-00-00

(replaces part #
43D-E2289-00-00)

WASHER, SEAT$2.65$2.284 In-Stock
843D-E5640-00-00KICK GEAR ASSY$24.99$21.09Not Shipping
943D-E3342-00-00SHAFT, IDLE GEAR$4.50$4.05Usually ships in 7-10 business days
1043D-E5532-00-00PLATE, IDLE GEAR$5.49$4.94Usually ships in 7-10 business days
1143D-E1834-00-00SCREW$1.90$1.712 In-Stock
1243D-E5600-00-00KICK SHAFT UNIT ASSY$71.99$56.15Usually ships in 7-10 business days
1343D-E5665-00-00SPRING, KICK$15.49$12.70Usually ships in 7-10 business days
1443D-E5677-00-00BOSS, KICK AXLE$7.49$6.74Usually ships in 7-10 business days
1543D-E5666-00-00SPACER$5.49$4.94Usually ships in 7-10 business days
1643D-E2456-00-00WASHER$8.49$7.64Usually ships in 7-10 business days
1799009-14400-00

(replaces part #
43D-E5597-00-00)

CIRCLIP$3.59$3.091 In-Stock
1843D-E5650-00-00IDLE GEAR ASSY$84.99$66.29Usually ships in 7-10 business days
1943D-E2664-00-00WASHER$7.49$6.74Usually ships in 7-10 business days
2043D-E6773-00-00CAP$5.99$4.673 In-Stock
2143D-E5620-00-00KICK CRANK ASSY$69.99$54.592 In-Stock
