2012 Yamaha RHINO 700 FI 4x4 Auto Exhaust OEM Parts Diagram

Submodel RHINO 700 - YXR7FBGR - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

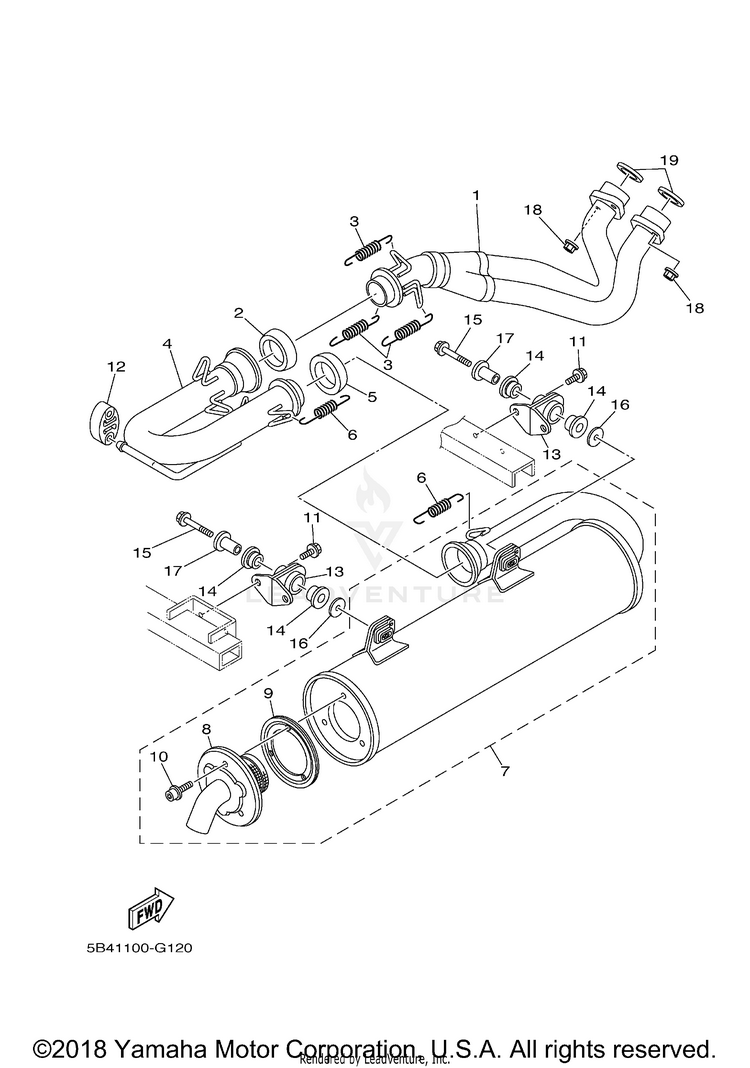

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15B4-E4611-00-00PIPE, EXHAUST 1$250.99$210.53Not Shipping
23B4-14714-00-00GASKET, MUFFLER$32.99$25.735 In-Stock
390506-26010-00SPRING, TENSION$12.49$10.0310+ In-Stock
45B4-E4621-00-00PIPE, EXHAUST 2$194.99$173.67Usually ships in 7-10 business days
53B4-14714-00-00GASKET, MUFFLER$32.99$25.735 In-Stock
690506-26010-00SPRING, TENSION$12.49$10.0310+ In-Stock
75B4-E4710-00-00MUFFLER ASSY 1$943.99$830.26Usually ships in 7-10 business days
85B4-E4752-00-00PIPE, OUTLET$150.99$124.21Usually ships in 7-10 business days
95B4-E4755-00-00GASKET, SILENCER$14.99$12.64Usually ships in 7-10 business days
105B4-E4719-00-00BOLT, MUFFLER$6.49$5.84Usually ships in 7-10 business days
1195817-08014-00

(replaces part #
95812-08014-00)

BOLT, FLANGE$2.50$2.1510+ In-Stock
125UG-14737-00-00DAMPER, MUFFLER$17.99$14.033 In-Stock
135B4-F1440-00-00MUFF. STAY SUB-KUMI$37.99$31.15Usually ships in 7-10 business days
145VY-27424-00-00DAMPER, FOOTREST 2$25.99$20.279 In-Stock
1595814-08045-00

(replaces part #
95802-08045-00)

BOLT, FLANGE$4.75$4.086 In-Stock
1690201-08034-00WASHER, PLATE$9.49$8.547 In-Stock
1790387-08039-00COLLAR$11.49$8.962 In-Stock
1895702-08500-00NUT, WITH WASHER$0.40$0.40Not Shipping
193YF-14613-01-00GASKET, EXHAUST PIPE | INCL. IN TOP END GASKET KIT$14.49$11.3010+ In-Stock
