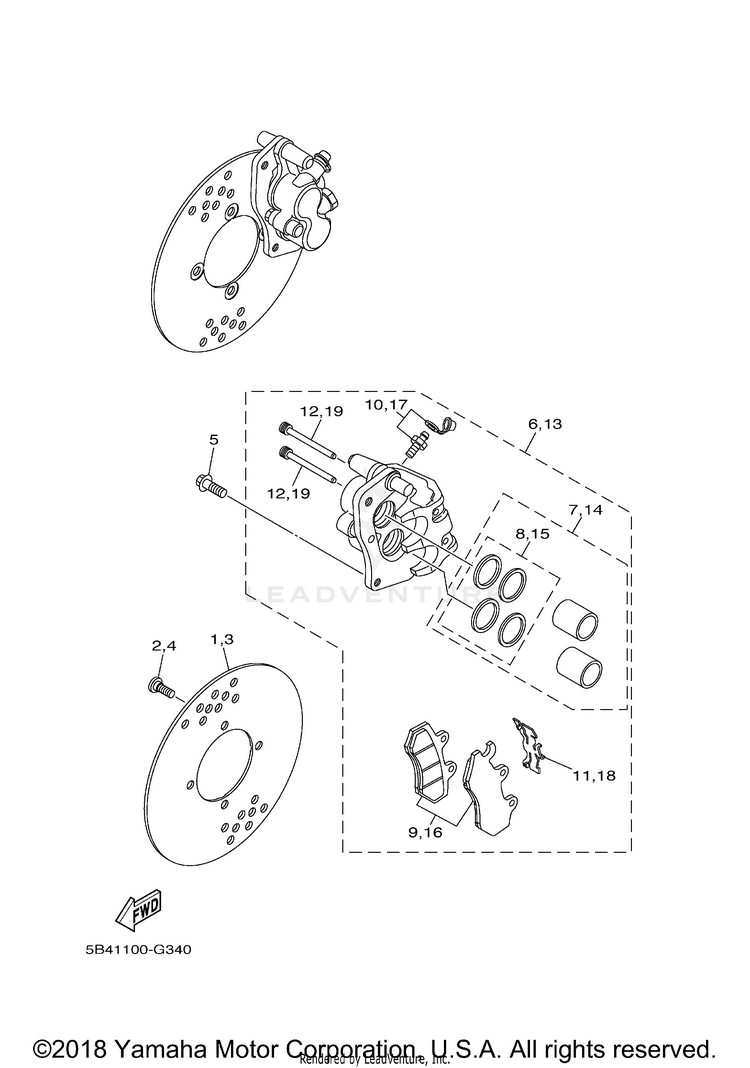

2012 Yamaha RHINO 700 FI 4x4 Auto Front Brake Caliper OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5B4-F582T-00-00	DISC, BRAKE (LEFT)	$70.99	$55.37	5 In-Stock
2	90109-08087-00 (replaces part # 90109-08082-00)	BOLT	$3.15	$2.71	10+ In-Stock
3	5B4-F582T-00-00	DISC, BRAKE (LEFT)	$70.99	$55.37	5 In-Stock
4	90109-08087-00 (replaces part # 90109-08082-00)	BOLT	$3.15	$2.71	10+ In-Stock
5	90105-10265-00	BOLT, FLANGE	$6.49	$5.06	10+ In-Stock
6	5B4-2580T-01-00 (replaces part # 5B4-2580T-00-00)	CALIPER ASSY (LEFT) \| UR LEFT	$479.99	$374.39	Usually ships in 7-10 business days
7	3LD-25802-00-00 (replaces part # 3LD-W0057-00-00)	PISTON ASSY, CALIPER	$58.99	$46.01	4 In-Stock
8	3JD-25803-00-00 (replaces part # 3JD-W0047-00-00)	CALIPER SEAL KIT	$23.99	$18.71	8 In-Stock
9	5B4-W0045-00-00	BRAKE PAD KIT	$58.99	$46.01	9 In-Stock
	AFTERMARKET ALTERNATIVE	$29.99	$19.99	10+ In-Stock
10	36Y-W0048-00-00 (replaces part # 1UY-W0048-50-00)	BLEED SCREW KIT	$10.99	$8.57	10+ In-Stock
11	3LD-25934-01-00	SPRING, PAD	$33.99	$26.51
12	3FV-25924-00-00 (replaces part # 3LD-25924-00-00)	PIN, PAD	$25.99	$20.27	6 In-Stock
13	5B4-2580U-01-00 (replaces part # 5B4-2580U-00-00)	CALIPER ASSY (RIGHT) \| UR RIGHT	$479.99	$374.39	Usually ships in 7-10 business days
	AFTERMARKET ALTERNATIVE	$39.99	$24.99	10+ In-Stock
14	3LD-25802-00-00 (replaces part # 3LD-W0057-00-00)	PISTON ASSY, CALIPER	$58.99	$46.01	4 In-Stock
15	3JD-25803-00-00 (replaces part # 3JD-W0047-00-00)	CALIPER SEAL KIT	$23.99	$18.71	8 In-Stock
16	5B4-W0045-10-00	BRAKE PAD KIT	$58.99	$46.01	6 In-Stock
	AFTERMARKET ALTERNATIVE	$29.99	$19.99	10+ In-Stock
17	36Y-W0048-00-00 (replaces part # 1UY-W0048-50-00)	BLEED SCREW KIT	$10.99	$8.57	10+ In-Stock
18	3LD-25934-01-00	SPRING, PAD	$33.99	$26.51
19	3FV-25924-00-00 (replaces part # 3LD-25924-00-00)	PIN, PAD	$25.99	$20.27	6 In-Stock
