2012 Yamaha Stryker Meter OEM Parts Diagram

Submodel STRYKER - XVS13CBCB - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

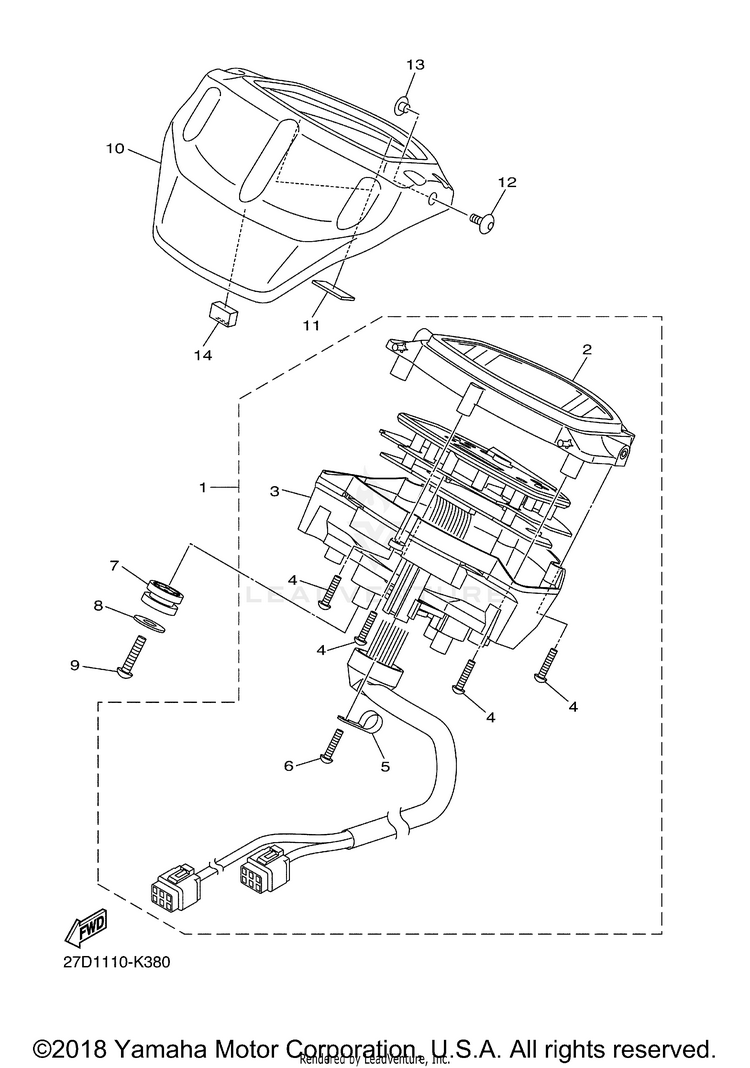

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
127D-83500-00-00METER ASSY (MPH)$784.99$656.69Usually ships in 7-10 business days
23D8-8353E-00-00CASE, METER UPPER$181.99$143.74Usually ships in 7-10 business days
327D-83572-00-00CASE, SPEEDOMETER LOWER$42.99$35.25Usually ships in 7-10 business days
497702-30014-00SCREW, TAPPING$0.75$0.68Usually ships in 7-10 business days
54NK-8357E-00-00CLAMP$2.60$2.34Usually ships in 7-10 business days
697707-40014-00SCREW, TAPPING$8.49$7.64Usually ships in 7-10 business days
74XV-83513-00-00DAMPER$8.49$6.6210+ In-Stock
890201-05029-00WASHER, PLATE$9.49$7.4010+ In-Stock
997707-50016-00SCREW, TRUSS HEAD TAPPING$1.85$1.5910+ In-Stock
1027D-83559-00-00COVER, METER$139.99$109.19Usually ships in 7-10 business days
113D8-83541-00-00DAMPER$8.49$7.64Usually ships in 7-10 business days
1290111-05059-00

(replaces part #
90110-05201-00)

BOLT,HEX. SOCKET BUT$2.80$2.7610+ In-Stock
1390387-05035-00COLLAR$8.49$6.62
143MA-24181-00-00DAMPER, LOCATING 1$8.49$7.64Usually ships in 7-10 business days
