2012 Yamaha TW200 Rear Arm OEM Parts Diagram

Submodel TW200 - TW200BC1 - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

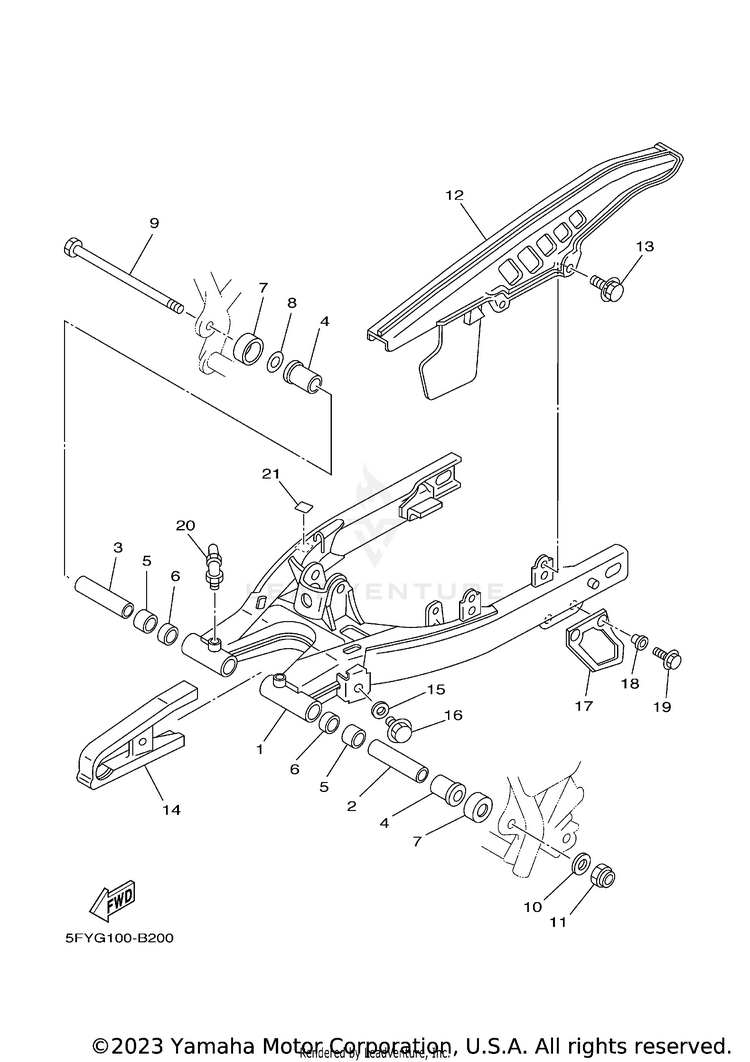

REAR ARM

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12JX-22110-10-35

(replaces part #
2JX-22110-00-35)

REAR ARM COMP. | SL FOR PWS1$553.99$432.11Not Shipping
22JX-22123-00-00BUSH 1$25.99$21.31Usually ships in 7-10 business days
32JX-22124-00-00BUSH 2$37.99$31.15Usually ships in 7-10 business days
490386-18146-00BUSH$18.49$14.425 In-Stock
590380-18139-00BUSH, SOLID$19.49$15.204 In-Stock
693109-18020-00OIL SEAL$14.49$11.305 In-Stock
7401-22128-01-00COVER, THRUST 1$31.99$24.953 In-Stock
8401-22127-00-00SHIM$8.49$6.623 In-Stock
92JX-22141-00-00SHAFT, PIVOT$24.99$20.49Usually ships in 7-10 business days
1090201-120E8-00WASHER, PLATE$8.49$6.624 In-Stock
1190185-12134-00NUT, SELF-LOCKING$13.49$10.524 In-Stock
1234X-22311-01-00

(replaces part #
34X-22311-00-00)

CASE, CHAIN$35.99$28.075 In-Stock
1390119-05062-00

(replaces part #
90119-05059-00)

BOLT, WITH WASHER$10.49$8.185 In-Stock
1434X-22151-01-00SEAL, GUARD$100.99$78.772 In-Stock
1590209-06187-00WASHER$9.49$7.4010+ In-Stock
1690119-05062-00BOLT, WITH WASHER$10.49$8.185 In-Stock
175BT-22199-00-00SUPPORT, CHAIN$25.99$20.273 In-Stock
1890387-06737-00COLLAR$10.49$8.189 In-Stock
1995817-06020-00

(replaces part #
95807-06020-00)

BOLT, FLANGE$3.50$3.0110+ In-Stock
2093700-06009-00NIPPLE, GREASE$12.49$9.749 In-Stock
213MA-27491-00-00PROTECTOR$9.49$8.54Usually ships in 7-10 business days
