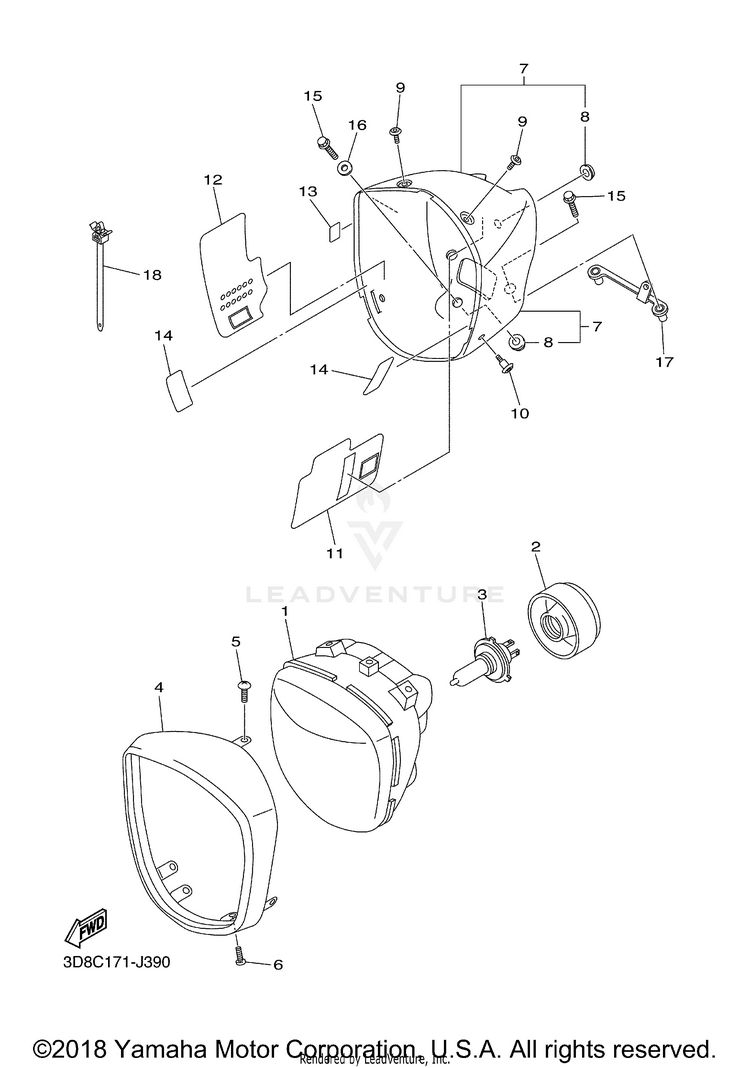

HEADLIGHT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D8-84320-10-00LENS ASSY$435.99$360.69Usually ships in 7-10 business days
25JW-84397-00-00COVER, SOCKET$32.99$27.05Usually ships in 7-10 business days
38V0-84314-10-00

(replaces part #
2F9-84314-00-00)

BULB, HEADLIGHT (12V-60/55W) | (H4) HALOGEN$75.99$60.93Usually ships in 7-10 business days
43D8-84315-00-00RIM, HEADLIGHT$170.99$133.37Usually ships in 7-10 business days
598517-05012-00

(replaces part #
98502-05012-00)

SCREW, PAN HEAD$5.49$4.283 In-Stock
697780-40112-00

(replaces part #
97702-40612-00)

SCREW, TAPPING$4.30$3.87Usually ships in 7-10 business days
73D8-84330-10-00BODY ASSY$265.99$207.47Usually ships in 7-10 business days
842X-84366-00-00DAMPER, HEADLIGHT 1$22.99$18.85Usually ships in 7-10 business days
990111-05007-00BOLT, HEXAGON SOCKET HEAD$9.49$7.40
1090111-05020-00BOLT, HEX. SOCKET BUTTON$4.60$4.142 In-Stock
113D8-8411T-00-00HOLDER, 1$15.49$12.70Usually ships in 7-10 business days
123D8-8411U-00-00HOLDER, 2$16.49$13.52Usually ships in 7-10 business days
133MA-27491-00-00PROTECTOR$9.49$8.54Usually ships in 7-10 business days
143D8-21575-00-00SEAL 1$4.95$4.46Usually ships in 7-10 business days
1595022-06025-00BOLT, FLANGE$1.90$1.6310+ In-Stock
1690387-06175-00COLLAR$9.49$8.54Usually ships in 7-10 business days
173D8-84387-00-00HOLDER$20.99$17.21Usually ships in 7-10 business days
1890464-14006-00CLAMP$5.49$4.94Usually ships in 7-10 business days
