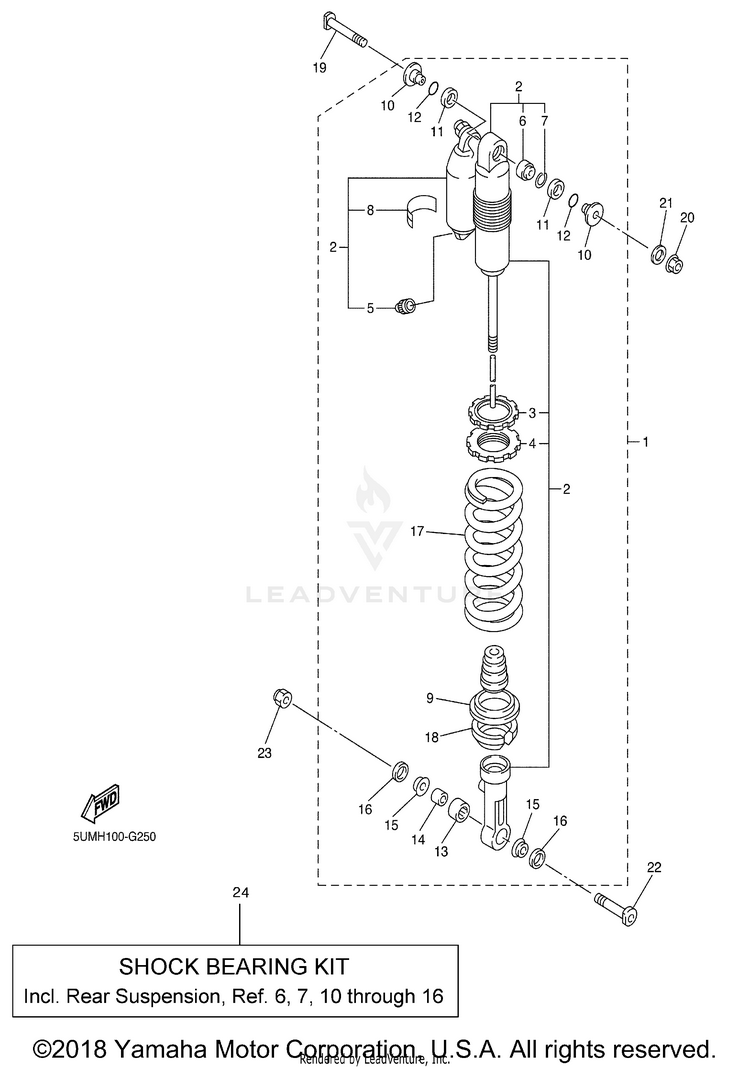

2012 Yamaha WR250F Rear Suspension OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5UM-22210-E1-00	SHOCK ABSORBER ASSY, REAR	$1,132.99	$988.85	Usually ships in 7-10 business days
2	5UM-22201-E0-00	DAMPER SUB ASSY	$1,198.99	$1,004.00	Usually ships in 7-10 business days
3	3SP-22234-00-00	GUIDE, SPRING 3	$47.99	$37.43	6 In-Stock
4	3SP-22213-00-00	SEAT, SPRING UPPER	$50.99	$39.77	2 In-Stock
5	509-23184-L0-00	CAP, AIR VALVE	$7.49	$5.84	4 In-Stock
6	4JX-22226-00-00	BUSH, SHOCK ABSORBER LOWER	$56.99	$44.45	9 In-Stock
	AFTERMARKET ALTERNATIVE	$31.00	$20.99	10+ In-Stock
7	5DH-23183-00-00	CIRCLIP	$5.99	$4.67	3 In-Stock
8	4AA-22259-80-00	LABEL, WARNING	$14.49	$11.30
9	5MV-22224-00-00	GUIDE, SPRING 2	$26.99	$21.05	10+ In-Stock
10	1C3-22253-50-00	COLLAR, DISTANCE	$49.99	$38.99	10+ In-Stock
11	3JE-22475-00-00	SEAL, DUST	$14.49	$11.30	10+ In-Stock
12	4EW-22474-00-00	SEAL, RING	$7.49	$5.84	10+ In-Stock
13	5UN-22176-00-00	BEARING	$35.99	$28.07	10+ In-Stock
14	5MV-22184-00-00	BUSH	$28.99	$22.61	10+ In-Stock
15	5MV-22253-00-00	COLLAR, DISTANCE	$18.99	$14.81	10+ In-Stock
16	5NY-22475-00-00	SEAL, DUST	$14.49	$11.30	10+ In-Stock
17	5UN-22212-50-00	SPRING (K=52N/MM)	$443.99	$346.31	Usually ships in 7-10 business days
18	5XE-22214-00-00	GUIDE, SPRING 1	$70.99	$55.37	Usually ships in 7-10 business days
19	5XE-22242-01-00 (replaces part # 5XE-22242-00-00)	BOLT 2	$7.49	$5.84	10+ In-Stock
20	95602-10200-00	NUT, S/L FLANGE	$2.70	$2.32	10+ In-Stock
21	92990-10200-00 (replaces part # 92902-10200-00)	WASHER, PLAIN	$3.80	$3.27	10+ In-Stock
22	5NY-22241-00-00	BOLT 1	$12.99	$10.13	10+ In-Stock
23	90185-10012-00	NUT, SELF-LOCKING	$3.60	$3.10	10+ In-Stock
