2012 Yamaha YZ125 Handle Switch Lever OEM Parts Diagram

Submodel YZ125 - YZ125B1 - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH LEVER

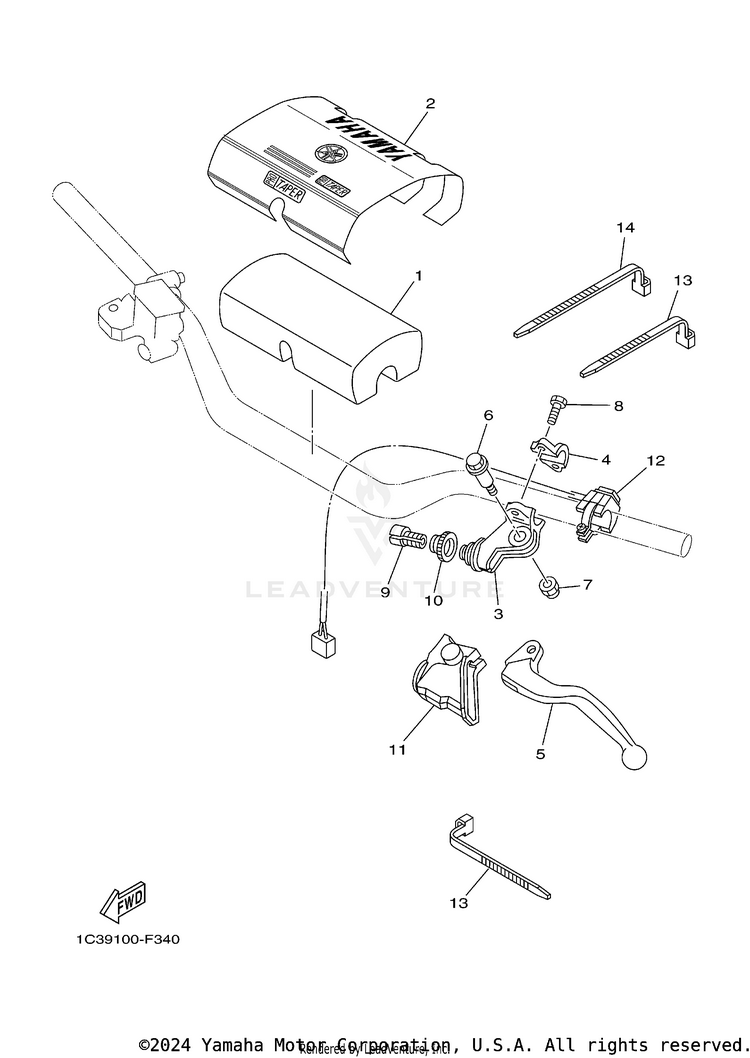

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15XC-26124-90-00PROTECTOR, HANDLEBAR$46.99$36.657 In-Stock
25XC-26143-L0-00COVER, HANDLEBAR UPPER 1$52.99$41.33Usually ships in 7-10 business days
35XE-82911-00-00HOLDER, LEVER 1$35.99$28.075 In-Stock
45TG-82913-00-00HOLDER, LEVER LOWER 1$10.99$8.575 In-Stock
55MV-83912-01-00

(replaces part #
5MV-83912-00-00)

LEVER 1$37.99$29.636 In-Stock
690109-06034-00BOLT$8.49$7.0110+ In-Stock
75LP-84126-10-00NUT, LENS FITTING$7.49$5.8410+ In-Stock
890101-05033-00BOLT$2.55$2.1910+ In-Stock
95HD-26337-00-00BOLT, ADJUSTING$12.99$10.1310+ In-Stock
105HD-83951-01-00

(replaces part #
5HD-83951-00-00)

BOLT, CABLE ADJUST$48.99$38.215 In-Stock
115HD-26372-00-00COVER, HANDLE LEVER 1$18.99$14.8110+ In-Stock
121C3-83976-02-00

(replaces part #
1C3-83976-00-00)

SWITCH, HANDLE 1$37.99$29.636 In-Stock
1390464-13077-00CLAMP$9.49$7.4010+ In-Stock
1490464-15195-00

(replaces part #
90464-13073-00)

CLAMP$4.41$3.7910+ In-Stock
