2012 Yamaha YZ250F Steering OEM Parts Diagram

Submodel YZ250FB - YZ250FBW - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

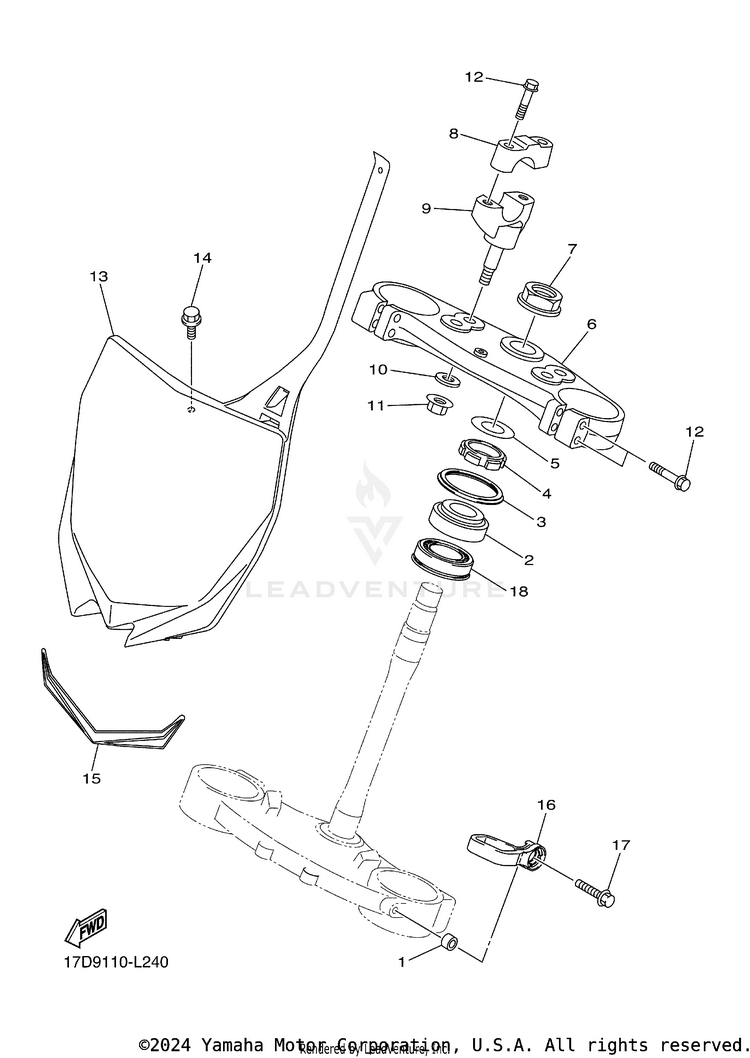

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
190387-06105-00COLLAR$8.49$6.6210+ In-Stock
293332-00078-00

(replaces part #
93332-00068-00)

BEARING$70.99$55.9410+ In-Stock
AFTERMARKET ALTERNATIVE
$48.00$38.9910+ In-Stock
317D-23416-50-00COVER, BALL RACE 2$36.99$28.8510+ In-Stock
490179-28016-00NUT$24.99$20.49Usually ships in 7-10 business days
590201-286K9-00WASHER, PLATE (T1.0)$8.49$6.6210+ In-Stock
633D-23435-00-00CROWN, HANDLE$160.99$127.30Usually ships in 7-10 business days
790179-24004-00NUT$29.99$23.394 In-Stock
818P-23441-00-00HOLDER, HANDLE UPPER$33.99$26.516 In-Stock
917D-23442-10-00HOLDER, HANDLE LOWER$110.99$86.57Usually ships in 7-10 business days
1092990-10200-00

(replaces part #
92902-10200-00)

WASHER, PLAIN$3.80$3.2710+ In-Stock
1195602-10200-00NUT, S/L FLANGE$2.70$2.3210+ In-Stock
1290105-08154-00BOLT, FLANGE$8.49$6.6210+ In-Stock
1317D-23485-50-00PLATE, NUMBER$29.99$27.899 In-Stock
1490105-06064-00BOLT, FLANGE$3.45$2.9710+ In-Stock
1517D-2339E-20-00GRAPHIC 1 | FOR PWS1$6.49$5.84Usually ships in 7-10 business days
1617D-23389-50-00GUIDE, CABLE$15.49$12.0810+ In-Stock
1790105-06170-00BOLT, FLANGE$5.49$4.2810+ In-Stock
1893332-00081-00BEARING$63.99$52.9410+ In-Stock
AFTERMARKET ALTERNATIVE
$47.99$43.9910+ In-Stock
