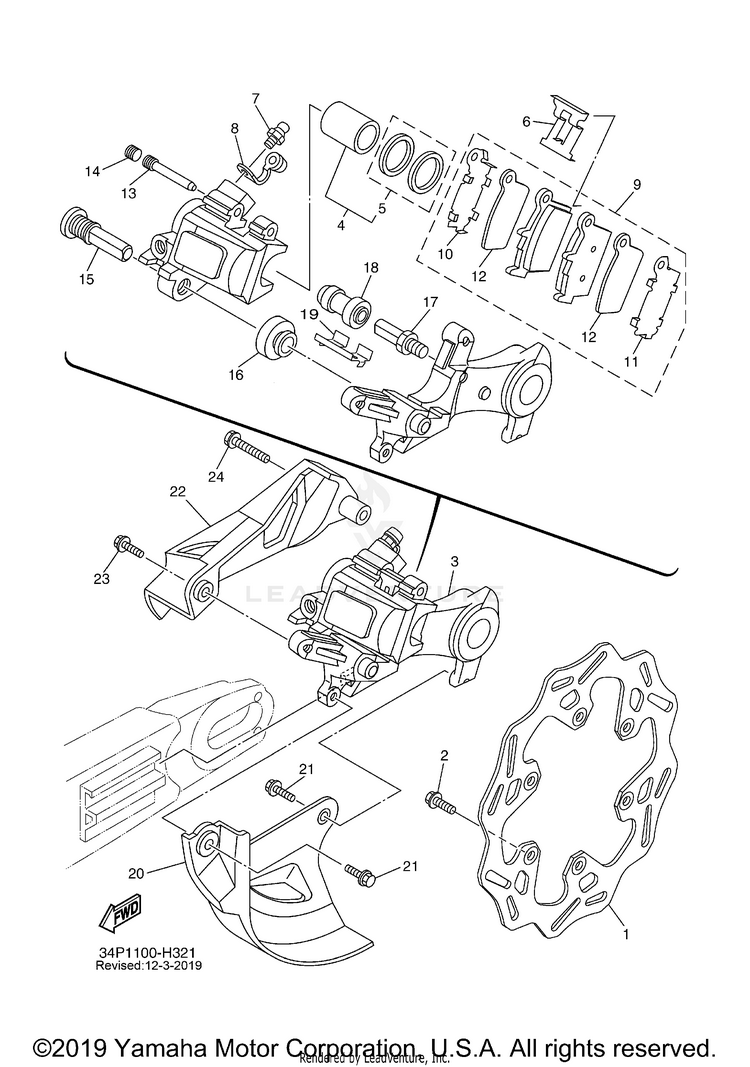

2012 Yamaha YZ450F Rear Brake Caliper OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	B11-2582W-00-00 (replaces part # 2S2-2582W-70-00)	DISC, REAR BRAKE 2	$160.99	$156.89	2 In-Stock
2	90105-06157-00 (replaces part # 90105-06156-00)	BOLT, FLANGE	$8.49	$6.62	10+ In-Stock
3	17D-2580W-01-00	CALIPER ASSY, REAR 2	$354.99	$276.89	3 In-Stock
4	5UN-W0057-50-00	PISTON ASSY, CALIPER	$62.99	$49.13	10+ In-Stock
5	5UN-W0047-50-00	CALIPER SEAL KIT	$17.99	$14.03	4 In-Stock
6	5DH-25919-50-00	SUPPORT, PAD	$22.99	$17.93	10+ In-Stock
7	36Y-W0048-00-00 (replaces part # 1UY-25824-51-00)	BLEED SCREW KIT	$10.99	$8.57	10+ In-Stock
8	36Y-W0048-00-00 (replaces part # 1UY-25825-51-00)	BLEED SCREW KIT	$10.99	$8.57	10+ In-Stock
9	1C3-W0046-50-00	BRAKE PAD KIT 2	$55.99	$48.67	10+ In-Stock
	AFTERMARKET ALTERNATIVE	$29.99	$19.99	10+ In-Stock
10	5UN-25828-60-00	SHIM, CALIPER	$12.99	$10.13	6 In-Stock
11	5UN-25827-60-00	SHIM, CALIPER	$16.49	$12.86	10+ In-Stock
12	5UN-22898-60-00	INSULATOR, HEAT	$21.99	$17.15	10+ In-Stock
13	8CR-25924-00-00	PIN, PAD	$15.49	$12.08	10+ In-Stock
14	5DH-25916-00-00	PLUG	$10.99	$8.57	10+ In-Stock
15	5DH-25914-50-00	PIN, SLIDE	$24.99	$19.49	4 In-Stock
16	3JD-25917-00-00	BOOT, CALIPER	$9.49	$7.40	10+ In-Stock
17	5UN-25914-00-00	PIN, SLIDE	$15.49	$12.08	6 In-Stock
18	1UY-25937-51-00	BOOT 2	$15.49	$12.08	10+ In-Stock
19	5UN-25913-00-00	RETAINER	$19.99	$15.59	10+ In-Stock
20	17D-25718-50-00	PROTECTOR, DISC BRAKE	$32.99	$25.73	7 In-Stock
21	90105-06110-00	BOLT, FLANGE	$9.49	$7.40	10+ In-Stock
22	17D-27491-50-00	PROTECTOR	$24.99	$19.49	10+ In-Stock
23	90105-06107-00	BOLT, FLANGE	$9.49	$7.40	10+ In-Stock
24	90105-06111-00	BOLT, FLANGE	$9.49	$7.40	10+ In-Stock
