SHIFT CAM FORK

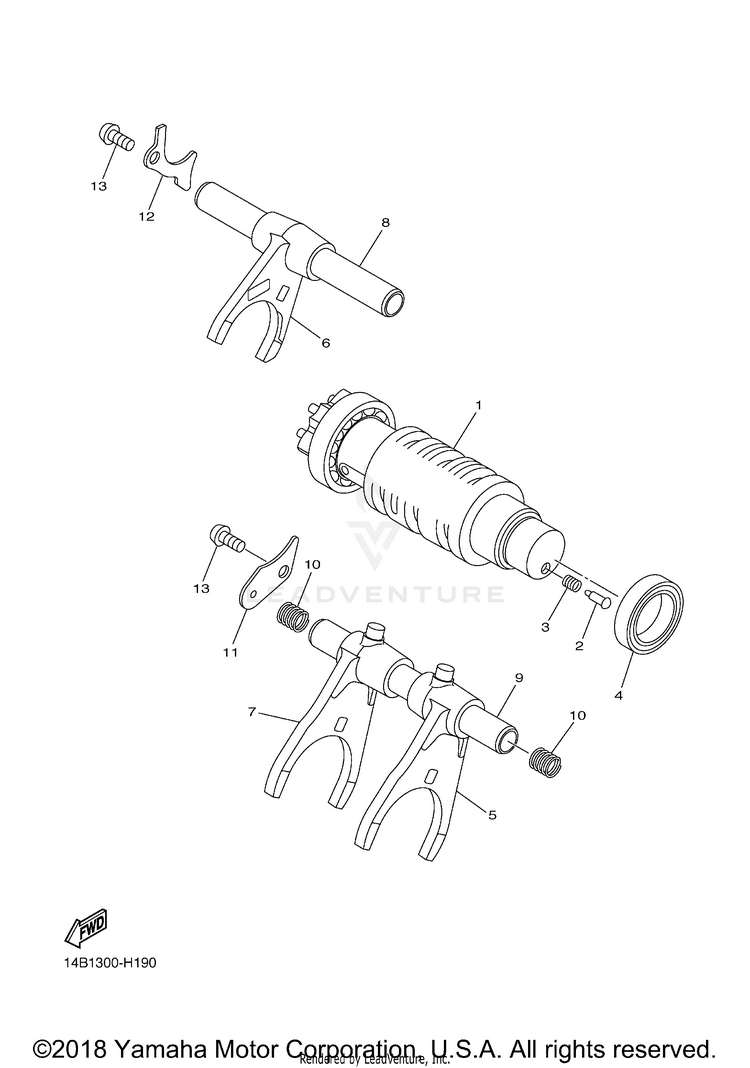

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
114B-18540-00-00SHIFT CAM ASSY$379.99$296.39Usually ships in 7-10 business days
23D7-18542-00-00POINT, NEUTRAL$7.49$5.84
390501-06022-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
493306-80502-00BEARING$42.99$33.5310+ In-Stock
514B-18511-00-00FORK, SHIFT 1$117.99$92.03Usually ships in 7-10 business days
614B-18512-00-00FORK, SHIFT 2$187.99$146.63Usually ships in 7-10 business days
714B-18513-00-00FORK, SHIFT 3$86.99$67.85Usually ships in 7-10 business days
814B-18531-00-00BAR, SHIFT FORK GUIDE 1$42.99$35.25Usually ships in 7-10 business days
92C0-18535-00-00BAR, SHIFT FORK GUIDE 2$46.99$38.53Usually ships in 7-10 business days
1090501-080A2-00SPRING, COMPRESSION$8.49$7.64Usually ships in 7-10 business days
1114B-18536-00-00STOPPER, SHIFT BAR$4.60$4.14Usually ships in 7-10 business days
1214B-18562-00-00PLATE, STOPPER 2$5.49$4.94Usually ships in 7-10 business days
1390149-06156-00

(replaces part #
90149-06158-00)

SCREW$9.49$8.54Usually ships in 7-10 business days
