2012 Yamaha YZF-R6 Headlight OEM Parts Diagram

Submodel YZF-R6 - YZFR6BCB - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

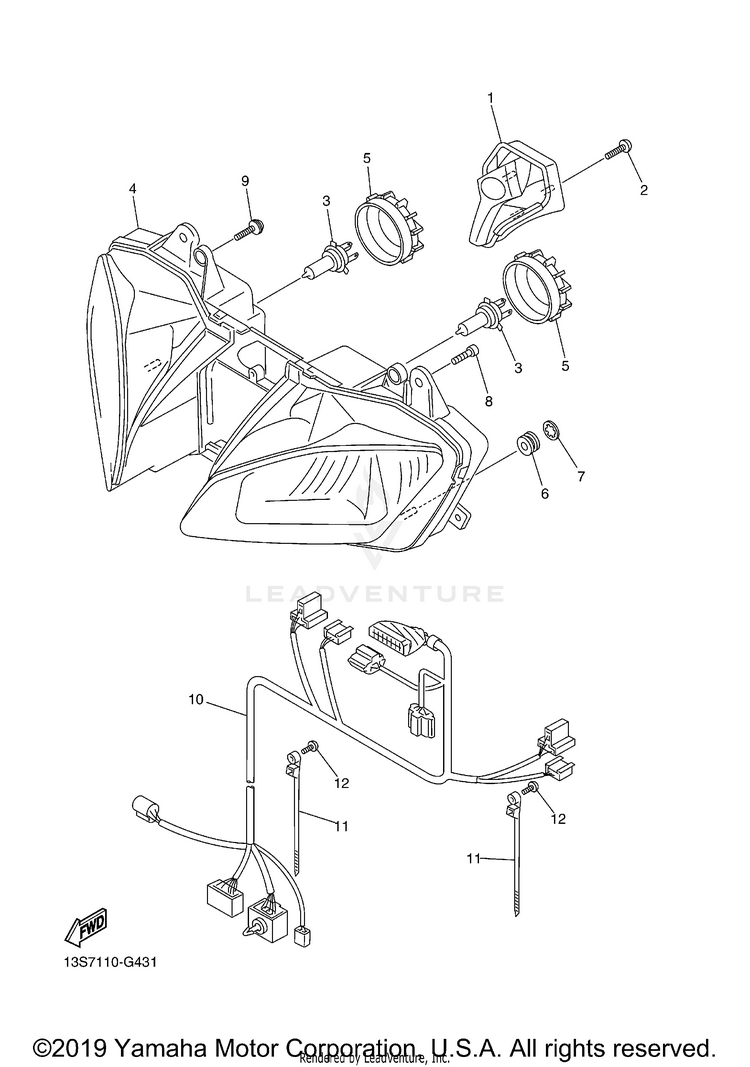

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
113S-84301-10-00PILOT LIGHT ASSY 1$64.99$50.69Usually ships in 7-10 business days
297707-40016-00

(replaces part #
97702-40016-00)

SCREW, TAPPING$9.49$7.4010+ In-Stock
34SV-84314-00-00BULB (12V-55W) | (H7) HALOGEN$58.99$46.013 In-Stock
413S-84303-00-00HEADLIGHT UNIT ASSY$798.99$653.28Usually ships in 7-10 business days
55SL-84397-00-00COVER, SOCKET$17.99$14.751 In-Stock
690480-08264-00GROMMET$9.49$7.406 In-Stock
790209-03274-00WASHER$11.49$9.42Usually ships in 7-10 business days
897707-50016-00SCREW, TRUSS HEAD TAPPING$1.85$1.5910+ In-Stock
990160-05006-00SCREW, ROUND TAPPING$9.49$7.4010+ In-Stock
1013S-84359-40-00CORD, HEADLIGHT$312.99$244.13Usually ships in 7-10 business days
1190464-47001-00CLAMP$4.00$3.60Usually ships in 7-10 business days
1297707-50016-00SCREW, TRUSS HEAD TAPPING$1.85$1.5910+ In-Stock
