2013 Yamaha GRIZZLY 550 4x4 Shift Cam Fork OEM Parts Diagram

Submodel GRIZZLY 550 EPS 4WD HUNTER - YFM5FGPHD - 2013

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT CAM FORK

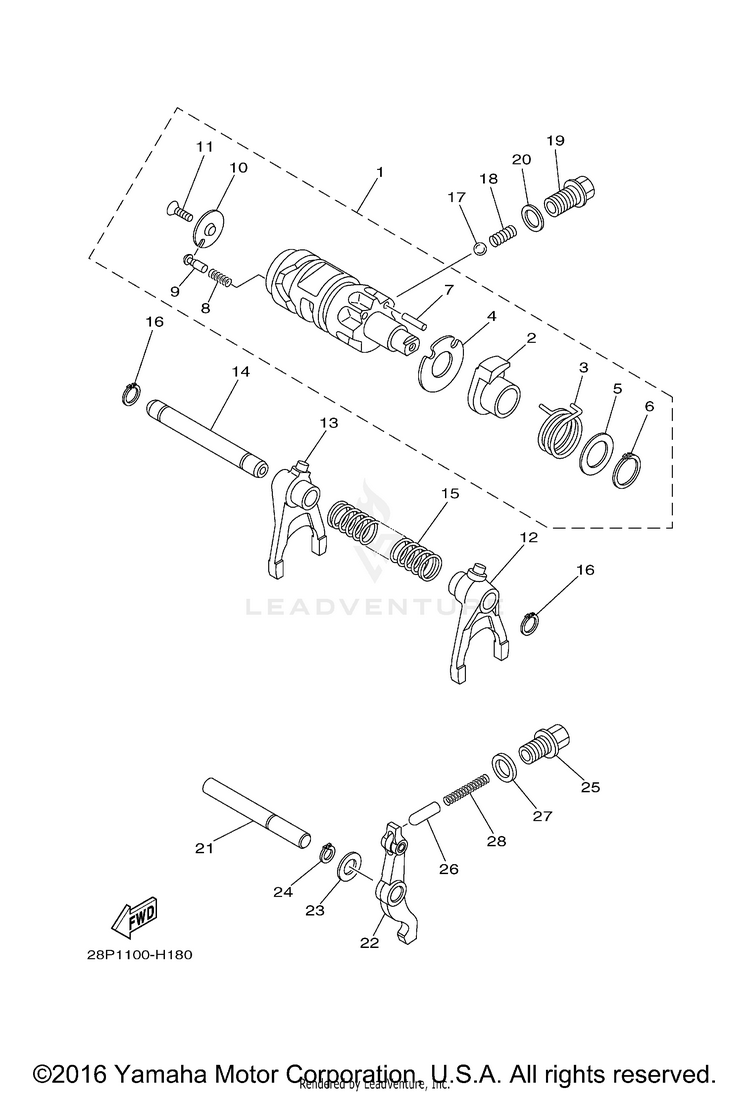

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13B4-18540-21-00SHIFT CAM ASSY$196.99$155.74Usually ships in 7-10 business days
25KM-18171-00-00CAM, LEVER$47.99$39.35Usually ships in 7-10 business days
390508-32132-00SPRING, TORSION$3.90$3.51Usually ships in 7-10 business days
43B4-18331-00-00PLATE, SHIFT CAM$3.30$2.97Usually ships in 7-10 business days
590560-20040-00SPACER$3.15$2.84Usually ships in 7-10 business days
693410-20038-00CIRCLIP, S-TYPE$4.05$3.4810+ In-Stock
793604-18100-00PIN, DOWEL$3.85$3.4610+ In-Stock
890501-06022-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
95KM-18542-00-00POINT, NEUTRAL$16.49$13.52Usually ships in 7-10 business days
104UN-18566-00-00PLATE, SIDE 2$21.99$18.03Usually ships in 7-10 business days
1190149-05015-00

(replaces part #
90149-05016-00)

SCREW$6.49$5.84Usually ships in 7-10 business days
123B4-18511-11-00FORK, SHIFT 1$126.99$99.05Usually ships in 7-10 business days
133B4-18512-11-00FORK, SHIFT 2$129.99$101.39Usually ships in 7-10 business days
143B4-18531-00-00BAR, SHIFT FORK GUIDE 1$20.99$17.21Usually ships in 7-10 business days
1590501-140A2-00SPRING, COMPRESSION$9.49$8.54Usually ships in 7-10 business days
1699009-12400-00CIRCLIP$3.59$3.0910+ In-Stock
1793503-08007-00BALL$4.50$3.879 In-Stock
1890501-10353-00SPRING, COMPRESSION$10.49$8.182 In-Stock
1990105-14003-00BOLT, FLANGE$9.49$8.54Usually ships in 7-10 business days
2090430-14194-00GASKET$9.49$8.548 In-Stock
213B4-18318-00-00SHAFT, SHIFTER$13.49$11.06Usually ships in 7-10 business days
2228P-18140-02-00

(replaces part #
28P-18140-01-00)

STOPPER LEVER ASSY$123.99$96.71Usually ships in 7-10 business days
2390201-127J6-00WASHER, PLATE$9.49$7.408 In-Stock
2499009-12400-00CIRCLIP$3.59$3.0910+ In-Stock
2590109-14002-00BOLT$13.49$11.06Usually ships in 7-10 business days
261J7-18547-00-00STOPPER, CAM$10.99$9.01Usually ships in 7-10 business days
2790430-14043-00GASKET$8.49$6.6210+ In-Stock
2890501-090A1-00SPRING, COMPRESSION$8.49$7.64Usually ships in 7-10 business days
