2013 Yamaha Stryker Electrical 2 OEM Parts Diagram

Submodel STRYKER - XVS13CDCB - 2013

Shop Aftermarket Parts

ELECTRICAL 2

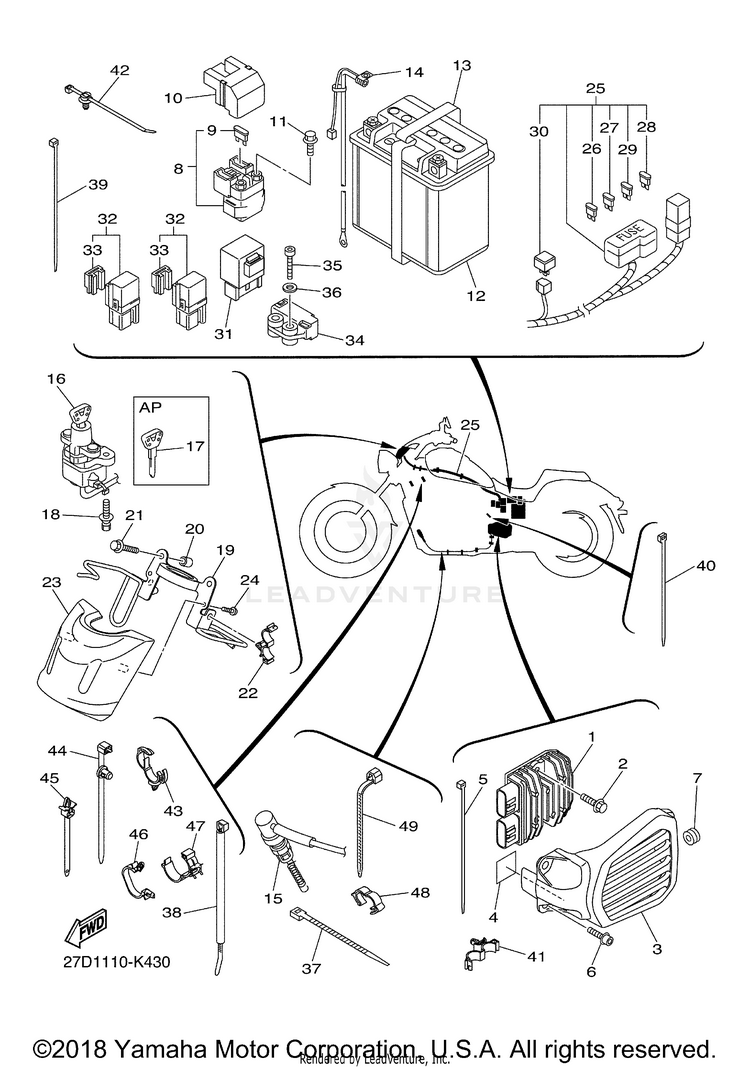

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
127D-81960-00-00RECTIFIER & REGULATOR ASSY$342.99$267.53Usually ships in 7-10 business days
290119-06225-00BOLT, WITH WASHER$10.49$8.1810+ In-Stock
33D8-21247-02-00CASE, REGULATOR$35.99$29.51Usually ships in 7-10 business days
42GH-24185-00-00DAMPER, LOCATING 5$1.20$1.08Usually ships in 7-10 business days
55Y9-12491-00-00CLAMP 1$7.49$6.744 In-Stock
690110-06215-00BOLT, HEXAGON SOCKET HEAD$2.90$2.61Usually ships in 7-10 business days
790480-12550-00GROMMET$9.49$8.54Usually ships in 7-10 business days
83D8-81940-00-00STARTER RELAY ASSY (RC19-074)$123.99$96.71Usually ships in 7-10 business days
942X-82151-00-00FUSE (10A-BL)$4.70$4.0410+ In-Stock
105SL-82119-10-00COVER, LEAD WIRE$5.49$4.2810+ In-Stock
1195022-06008-00BOLT, FLANGE$9.49$7.4010+ In-Stock
12YTX-20LBS-00-00

(replaces part #
4SH-82100-22-00)

YTX20LBS YUASA BATT$165.99$132.604 In-Stock
134AS-82131-01-00BAND, BATTERY$16.49$13.521 In-Stock
1427D-82116-00-00WIRE, MINUS LEAD$29.99$24.59Usually ships in 7-10 business days
1527D-82530-00-00STOP SWITCH ASSY$65.99$51.47Usually ships in 7-10 business days
163D8-82501-02-00

(replaces part #
3D8-82501-01-00)

MAIN SWITCH STEERING LOCK$177.99$138.83Usually ships in 7-10 business days
174BH-82511-09-00BLANK KEY | AP$33.99$26.517 In-Stock
1890109-08196-00

(replaces part #
90109-08195-00)

BOLT$9.49$7.4010+ In-Stock
1927D-2334G-00-00BRACKET 1$63.99$49.91Usually ships in 7-10 business days
2090387-06026-00

(replaces part #
90387-065L7-00)

COLLAR$9.49$7.409 In-Stock
2195027-06025-00BOLT, FLANGE$4.16$3.5810+ In-Stock
2290464-16006-00CLAMP$10.49$8.182 In-Stock
2327D-82568-00-00COVER, MAIN SWITCH$80.99$63.17Usually ships in 7-10 business days
2497707-40014-00

(replaces part #
97702-40014-00)

SCREW, TAPPING$8.49$7.64Usually ships in 7-10 business days
2527D-82590-01-00

(replaces part #
27D-82590-00-00)

WIRE HARNESS ASSY$628.99$526.50Usually ships in 7-10 business days
2667F-82151-40-00

(replaces part #
5JJ-82151-30-00)

FUSE (10A)$7.49$6.743 In-Stock
2767F-82151-50-00

(replaces part #
5JJ-82151-10-00)

FUSE (15A)$4.15$3.74Usually ships in 7-10 business days
285JW-82151-10-00FUSE (50A)$17.99$14.03
295JJ-82151-20-00FUSE (20A-BL)$8.49$7.64Usually ships in 7-10 business days
303XV-81980-00-00DIODE ASSY$19.99$16.39Usually ships in 7-10 business days
315VK-81950-33-00

(replaces part #
5VK-81950-30-00)

RELAY ASSY$61.99$48.3510+ In-Stock
325EA-81950-20-00RELAY ASSY (5EA-02)$62.99$49.1310+ In-Stock
335EA-81952-00-00HOLDER, RELAY$8.49$6.625 In-Stock
345PS-82576-02-00

(replaces part #
5PS-82576-01-00)

SENSOR, LEAN ANGLE$96.99$75.658 In-Stock
3591312-04025-00

(replaces part #
90110-04003-00)

BOLT, HEXAGON SOCKET HEAD$1.95$1.682 In-Stock
3690201-04027-00WASHER, PLATE$2.45$2.117 In-Stock
371UA-82591-00-00BAND$5.49$4.2810+ In-Stock
3827D-82360-00-00CLAMP ASSY$4.20$3.78Usually ships in 7-10 business days
395Y9-12491-00-00CLAMP 1$7.49$6.744 In-Stock
4090464-80002-00CLAMP$6.49$5.84Usually ships in 7-10 business days
4190464-16012-00CLAMP$8.49$6.626 In-Stock
425RU-12491-00-00CLAMP 1$4.55$4.10Usually ships in 7-10 business days
4390464-20181-00CLAMP$4.72$4.0610+ In-Stock
4490464-40001-00CLAMP$2.15$1.94Usually ships in 7-10 business days
4590464-10112-00

(replaces part #
90464-12036-00)

CLAMP$9.49$7.404 In-Stock
4690464-24230-00CLAMP$8.49$7.64Usually ships in 7-10 business days
4790464-25217-00CLAMP$4.45$4.00Usually ships in 7-10 business days
4890464-16003-00CLAMP$7.99$7.19Usually ships in 7-10 business days
4925G-83936-01-00

(replaces part #
90464-12045-00)

BAND, SWITCH CORD$5.49$4.283 In-Stock
