2013 Yamaha Stryker Starter OEM Parts Diagram

Submodel STRYKER - XVS13CDCW - 2013

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

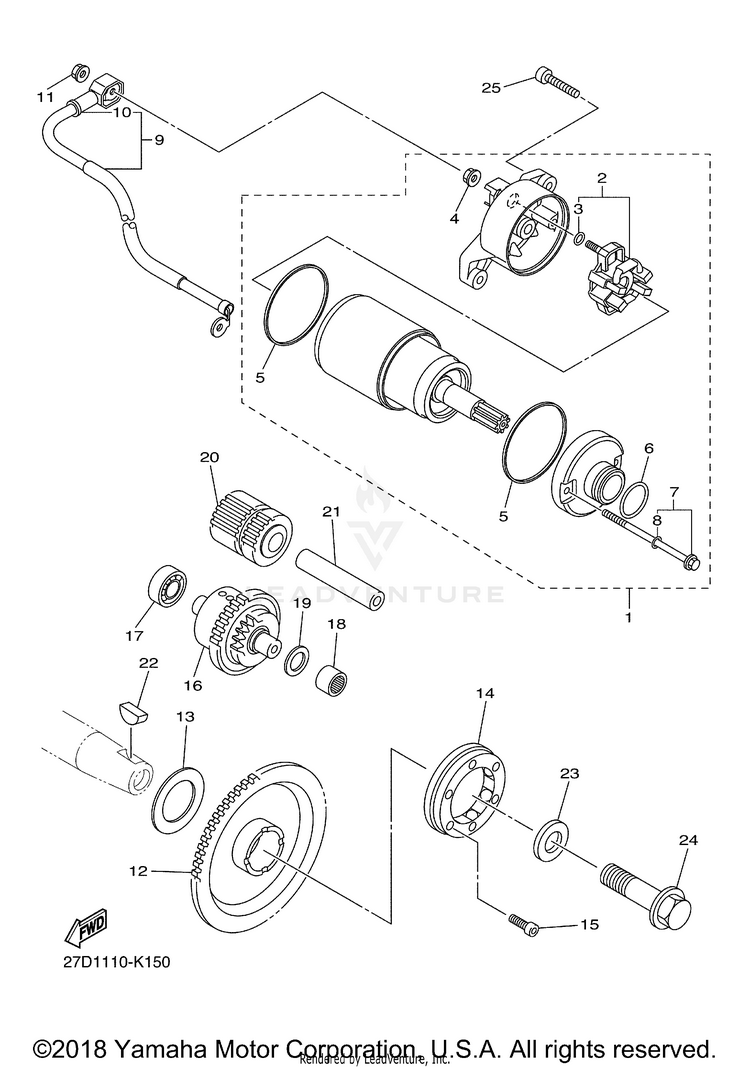

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15S7-81890-10-00

(replaces part #
5S7-81890-00-00)

MOTOR ASSY$435.99$360.33Usually ships in 7-10 business days
24B5-81840-00-00BRUSH HOLDER ASSY$107.99$84.23Usually ships in 7-10 business days
33TB-81847-00-00O-RING$2.49$2.14Not Shipping
44XV-8182A-00-00NUT$8.49$6.626 In-Stock
535C-81844-00-00

(replaces part #
11H-81844-00-00)

GASKET$53.99$42.11Usually ships in 7-10 business days
693210-24235-00

(replaces part #
1FK-81847-00-00)

O-RING$8.49$7.078 In-Stock
728P-81826-00-00BOLT$15.99$13.11Usually ships in 7-10 business days
83TB-81847-00-00O-RING$2.49$2.14Not Shipping
93D8-81815-10-00CORD, STARTER MOTOR$74.99$58.49Usually ships in 7-10 business days
104B5-81871-00-00CAP$11.49$9.42Usually ships in 7-10 business days
114XV-8182A-00-00NUT$8.49$6.626 In-Stock
123D8-15515-10-00GEAR 3$135.99$106.07Usually ships in 7-10 business days
1390201-303P4-00WASHER, PLATE$11.49$9.42Usually ships in 7-10 business days
144NK-15590-00-00STARTER ONE-WAY ASSY$316.99$247.25Usually ships in 7-10 business days
1591317-08025-00

(replaces part #
90110-08067-00)

BOLT$9.49$7.407 In-Stock
163D8-15560-10-00DAMPER ASSY$349.99$291.14Usually ships in 7-10 business days
1793306-00004-00

(replaces part #
93306-00006-00)

BEARING$41.99$32.7510+ In-Stock
1893317-11096-00BEARING$25.99$20.2710+ In-Stock
1990201-08759-00WASHER, PLATE$3.50$3.0110+ In-Stock
203D8-15512-01-00GEAR, IDLER 1$74.99$58.49Usually ships in 7-10 business days
214WM-15522-00-00SHAFT 2$13.99$11.47Usually ships in 7-10 business days
2290280-05001-00

(replaces part #
90280-05048-00)

KEY, WOODRUFF$13.49$10.5210+ In-Stock
2390201-12008-00WASHER, PLATE$16.49$13.52Usually ships in 7-10 business days
2490105-12584-00BOLT, WASHER BASED$20.99$17.21Usually ships in 7-10 business days
2591314-06030-00BOLT, HEXAGON SOCKET HEAD$9.49$8.547 In-Stock
