2013 Yamaha V-Max Rear Suspension OEM Parts Diagram

Submodel VMAX - VMX17DC - 2013

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

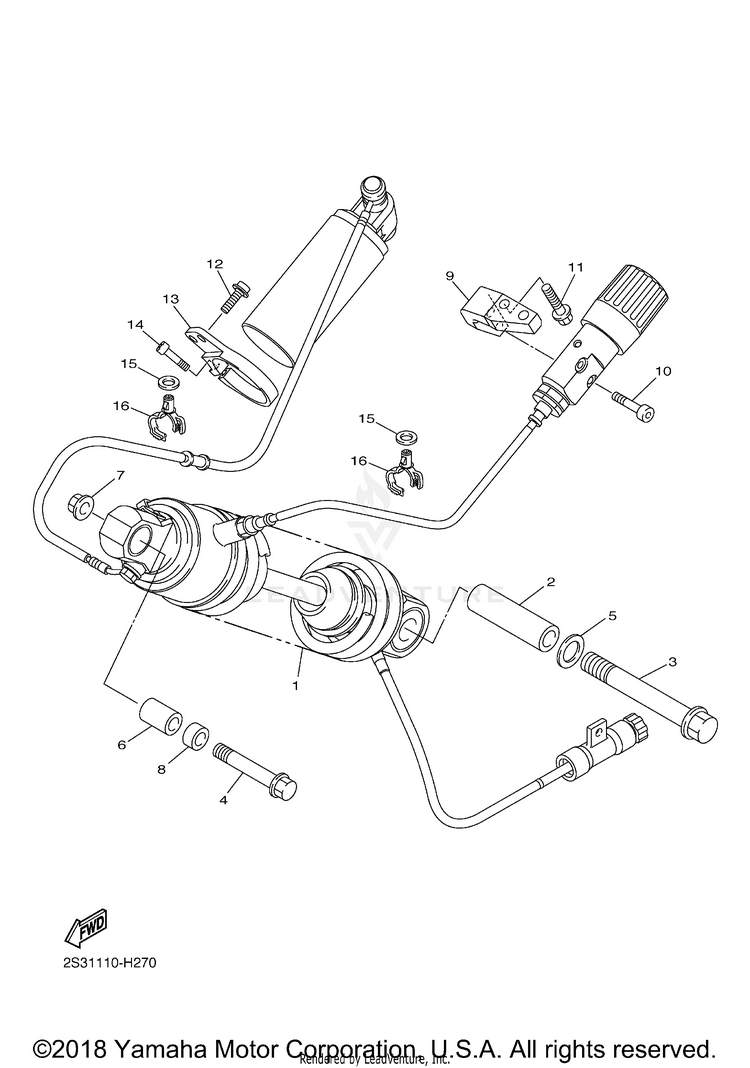

REAR SUSPENSION

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S3-22210-00-00SHOCK ABSORBER ASSY, REAR$1,258.99$1,101.46Usually ships in 7-10 business days
290387-14013-00COLLAR$18.49$15.16Usually ships in 7-10 business days
390105-14006-00

(replaces part #
90105-14004-00)

BOLT, FLANGE$10.49$8.60Usually ships in 7-10 business days
490105-10402-00BOLT, FLANGE$10.49$8.186 In-Stock
590201-16022-00WASHER, PLATE$10.49$8.60Usually ships in 7-10 business days
690387-1012A-00COLLAR$23.99$19.672 In-Stock
795607-10200-00NUT, U FLANGE$4.15$3.5710+ In-Stock
890380-10005-00BUSH, SOLID$8.49$7.64Usually ships in 7-10 business days
92S3-27332-00-00BRACKET$59.99$46.79Usually ships in 7-10 business days
1091314-05025-00BOLT, HEXAGON SOCKET HEAD$0.90$0.81Usually ships in 7-10 business days
1190105-06148-00BOLT, FLANGE$9.49$7.404 In-Stock
1290110-06387-00

(replaces part #
90110-06390-00)

BOLT, HEXAGON SOCKET HEAD$4.65$4.008 In-Stock
132S3-27333-00-00BRKT$78.99$61.61Usually ships in 7-10 business days
1491314-05020-00BOLT, HEXAGON SOCKET HEAD$1.80$1.62Usually ships in 7-10 business days
1590201-06105-00WASHER, PLATE$1.15$1.04Usually ships in 7-10 business days
1690464-18002-00CLAMP$9.49$7.409 In-Stock
