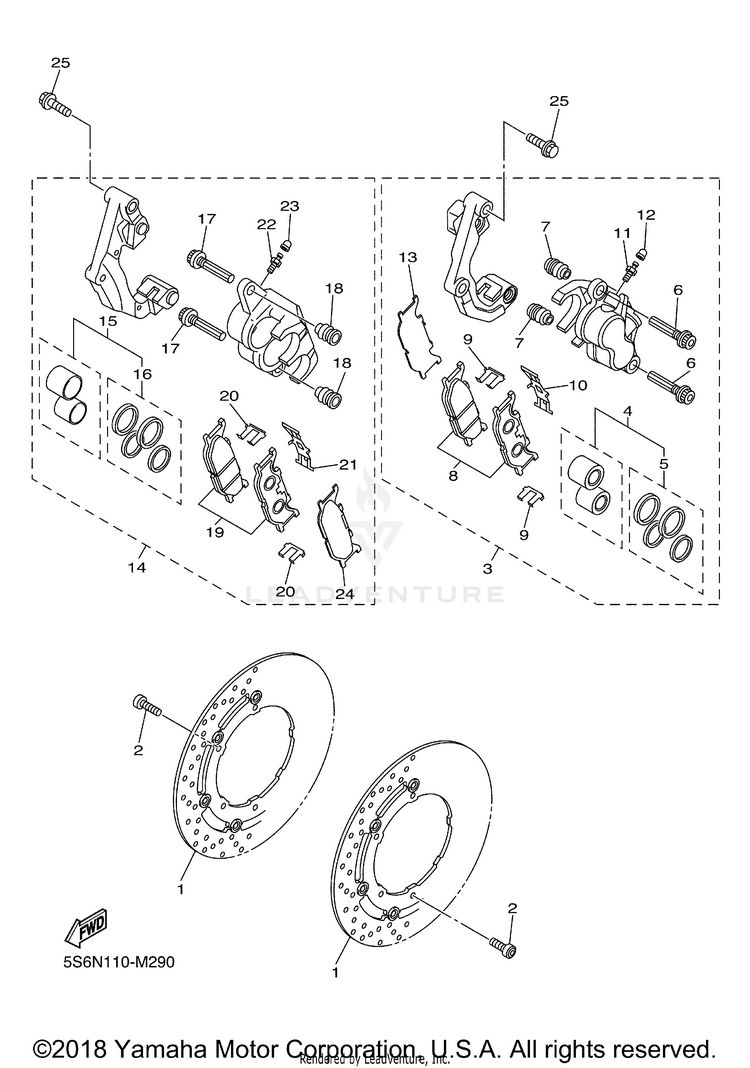

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D8-2581T-10-00DISK BRAKE ASSY$271.99$212.15Usually ships in 7-10 business days
290111-08057-00

(replaces part #
90109-083G4-00)

BOLT$2.50$2.1510+ In-Stock
33D8-2580T-00-00

(replaces part #
3D8-2580T-20-00)

CALIPER ASSY (LEFT)$353.99$294.23Usually ships in 7-10 business days
45KS-25802-00-00PISTON ASSY, CALIPER$75.99$59.27Usually ships in 7-10 business days
54HC-25803-50-00CALIPER SEAL KIT$66.99$52.25Usually ships in 7-10 business days
65JW-25914-10-00PIN, SLIDE$24.99$19.495 In-Stock
74TT-25937-00-00BOOT 2$17.99$14.75Usually ships in 7-10 business days
85VU-25805-00-00BRAKE PAD KIT$48.99$39.064 In-Stock
94BP-25919-00-00SUPPORT, PAD$48.99$40.17Usually ships in 7-10 business days
103YX-25929-00-00SPRING, ANTI RATTLE$35.99$29.51Usually ships in 7-10 business days
1147X-25824-01-00SCREW, BLEED$15.49$12.70Usually ships in 7-10 business days
121D7-25825-00-00CAP$8.49$6.622 In-Stock
135VU-25827-00-00SHIM, CALIPER$15.49$12.70Usually ships in 7-10 business days
143D8-2580U-00-00

(replaces part #
3D8-2580U-20-00)

CALIPER ASSY (RIGHT)$353.99$294.23Usually ships in 7-10 business days
155KS-25802-00-00PISTON ASSY, CALIPER$75.99$59.27Usually ships in 7-10 business days
164HC-25803-50-00CALIPER SEAL KIT$66.99$52.25Usually ships in 7-10 business days
175JW-25914-10-00PIN, SLIDE$24.99$19.495 In-Stock
184TT-25937-00-00BOOT 2$17.99$14.75Usually ships in 7-10 business days
195VU-25805-00-00BRAKE PAD KIT$48.99$39.064 In-Stock
204BP-25919-00-00SUPPORT, PAD$48.99$40.17Usually ships in 7-10 business days
213YX-25929-00-00SPRING, ANTI RATTLE$35.99$29.51Usually ships in 7-10 business days
2247X-25824-01-00SCREW, BLEED$15.49$12.70Usually ships in 7-10 business days
231D7-25825-00-00CAP$8.49$6.622 In-Stock
245VU-25827-00-00SHIM, CALIPER$15.49$12.70Usually ships in 7-10 business days
2590105-10638-00BOLT, WASHER BASED$8.49$6.6210+ In-Stock
