2013 Yamaha WR450F Headlight OEM Parts Diagram

Submodel WR450F - WR450FD - 2013

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

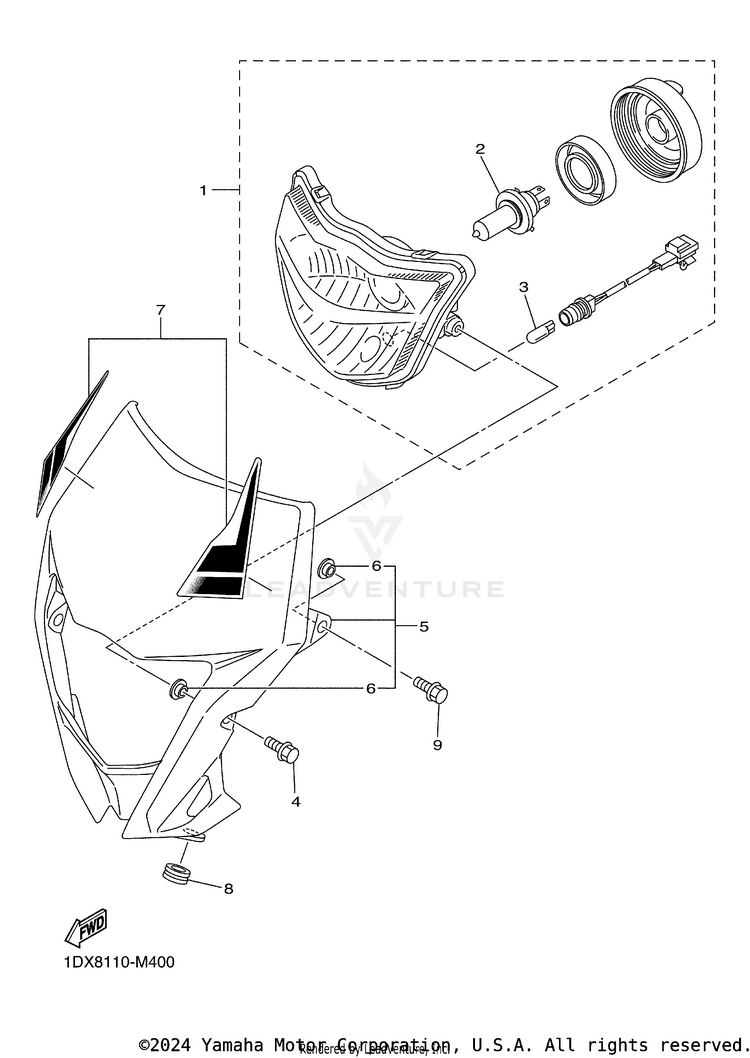

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11DX-84300-00-00HEADLIGHT ASSY$181.99$141.95Usually ships in 7-10 business days
25ST-H4314-10-00

(replaces part #
1DX-84314-00-00)

BULB, HEADLIGHT (1$32.99$25.739 In-Stock
34P7-H4347-00-00

(replaces part #
1DX-84347-00-00)

BULB (12V-3W) W3W$2.40$2.16Not Shipping
490105-06064-00BOLT, FLANGE$3.45$2.9710+ In-Stock
51DX-84330-00-00BODY ASSY$37.99$34.633 In-Stock
690387-06170-00COLLAR$9.49$7.4010+ In-Stock
71DX-8412B-00-00GRAPHIC SET$18.49$15.16Usually ships in 7-10 business days
890480-12020-00GROMMET$10.49$8.1810+ In-Stock
990105-06064-00BOLT, FLANGE$3.45$2.9710+ In-Stock
