2013 Yamaha YZ125 Intake OEM Parts Diagram

Submodel YZ125 - YZ125D2 - 2013

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

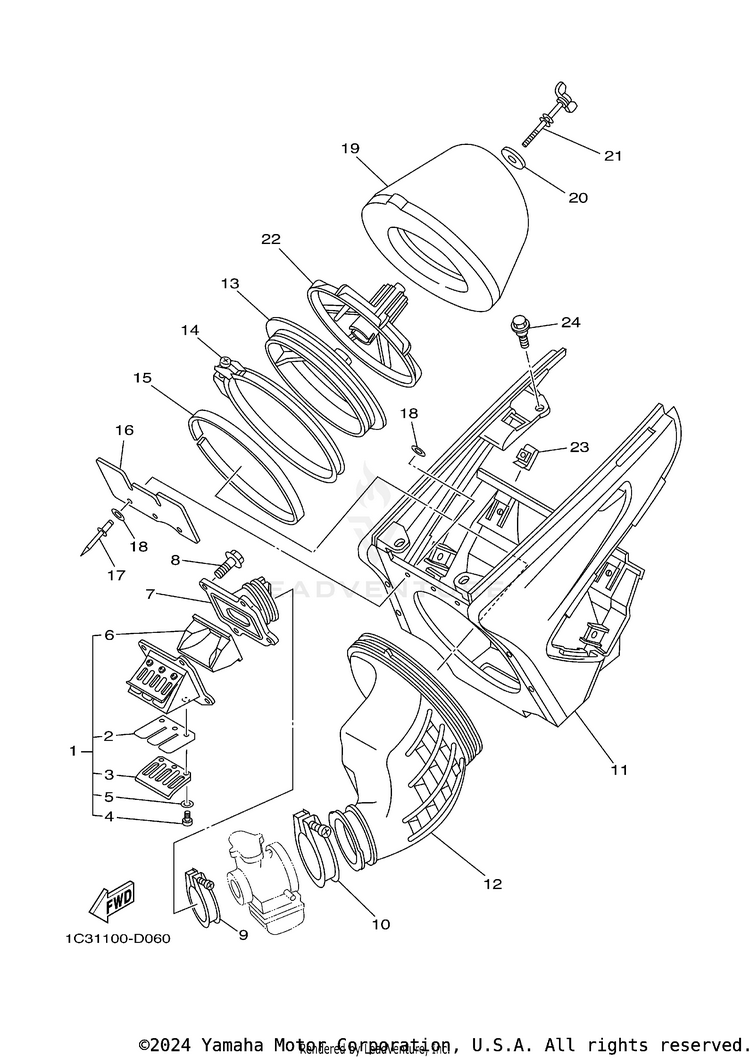

INTAKE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11C3-13610-20-00REED VALVE ASSY$341.99$266.75Usually ships in 7-10 business days
25UN-13613-00-00REED, VALVE$125.99$98.279 In-Stock
35MV-13616-10-00STOPPER, REED VALVE$8.49$6.626 In-Stock
498580-03006-00

(replaces part #
98502-03006-00)

SCREW, PAN HEAD$10.49$8.1810+ In-Stock
592990-03100-00

(replaces part #
92902-03100-00)

WASHER, SPRING$9.49$7.4010+ In-Stock
61C3-13625-10-00SPACER, REED VALVE$50.99$39.77Usually ships in 7-10 business days
71C3-13565-00-00JOINT, CARBURETOR$77.99$60.834 In-Stock
895022-06020-00BOLT, FLANGE$3.90$3.3510+ In-Stock
990450-54007-00HOSE CLAMP ASSY$16.49$12.866 In-Stock
1090450-70002-00HOSE CLAMP ASSY$24.99$21.3910+ In-Stock
115NY-14401-01-00AIR CLEANER CASE ASSY$163.99$127.918 In-Stock
121C3-14453-11-00

(replaces part #
1C3-14453-10-00)

JOINT, AIR CLEANER 1$73.99$57.711 In-Stock
135NY-14459-00-00HOLDER, GUIDE$41.99$32.7510+ In-Stock
145NY-14455-20-00BAND$44.99$35.0910+ In-Stock
155NY-14442-00-00SPACER$25.99$20.278 In-Stock
165NY-14417-01-00

(replaces part #
5NY-14417-00-00)

COVER 1$16.49$12.865 In-Stock
1790267-32070-00RIVET, BLIND$4.35$3.7410+ In-Stock
1890201-03313-00WASHER, PLATE$10.49$8.1810+ In-Stock
194XM-14451-01-00

(replaces part #
4XM-14451-00-00)

ELEMENT, AIR CLEANER$41.99$35.7510+ In-Stock
AFTERMARKET ALTERNATIVE
$19.99$11.8810+ In-Stock
2090209-06096-00WASHER$10.49$8.1810+ In-Stock
2190122-06005-00BOLT, WING$13.49$10.5210+ In-Stock
223JD-14458-01-00GUIDE$76.99$60.0510+ In-Stock
2390183-06023-00NUT, SPRING$10.49$8.1810+ In-Stock
2490109-06245-00BOLT$6.49$5.0610+ In-Stock
