2014 Yamaha FZ1 Taillight OEM Parts Diagram

Submodel FZ1 - FZS10EC - 2014

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

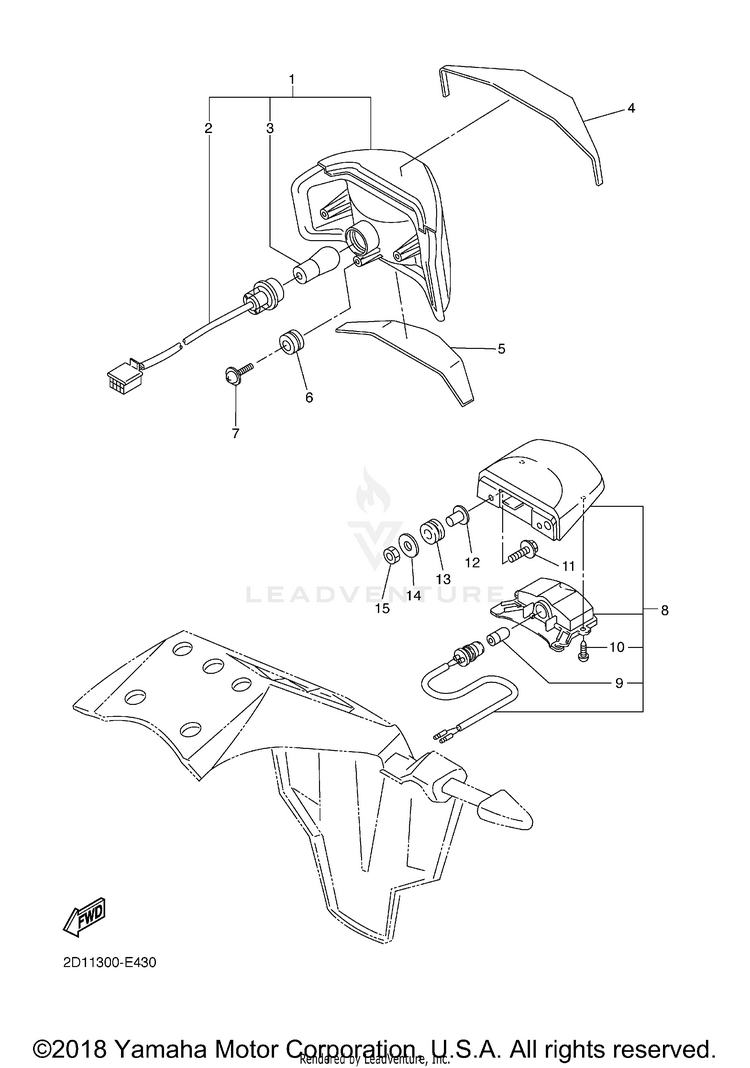

TAILLIGHT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12D1-84710-00-00TAILLIGHT UNIT ASSY$105.99$82.67Usually ships in 7-10 business days
22D1-84735-00-00SOCKET CORD ASSY$35.99$29.51Usually ships in 7-10 business days
31A2-84714-50-00

(replaces part #
1A2-84714-41-00)

BULB (12V-21/5W)$15.49$12.084 In-Stock
43C3-84736-00-00DAMPER, TAIL 1$8.49$7.64Usually ships in 7-10 business days
52D1-84737-00-00DAMPER, TAIL 2$5.99$5.39Usually ships in 7-10 business days
690480-18276-00GROMMET$9.49$7.408 In-Stock
790164-05001-00SCREW, TAPPING$9.49$7.407 In-Stock
82D1-84745-00-00LICENCE LIGHT UNIT ASSY$139.99$109.19Usually ships in 7-10 business days
94SV-84347-00-00

(replaces part #
4HC-84744-00-00)

BULB (12V-5W)$9.49$8.544 In-Stock
1097707-40012-00

(replaces part #
97706-04012-00)

SCREW, TAPPING$9.49$7.4010+ In-Stock
1190159-05035-00SCREW, WITH WASHER$9.49$8.548 In-Stock
1290387-05042-00COLLAR$6.49$5.844 In-Stock
1390480-11009-00GROMMET$1.20$1.08Usually ships in 7-10 business days
1492990-05200-00

(replaces part #
92902-05200-00)

WASHER, PLAIN$5.49$4.2810+ In-Stock
1595617-05100-00

(replaces part #
95602-05100-00)

NUT, U$10.49$8.1810+ In-Stock
