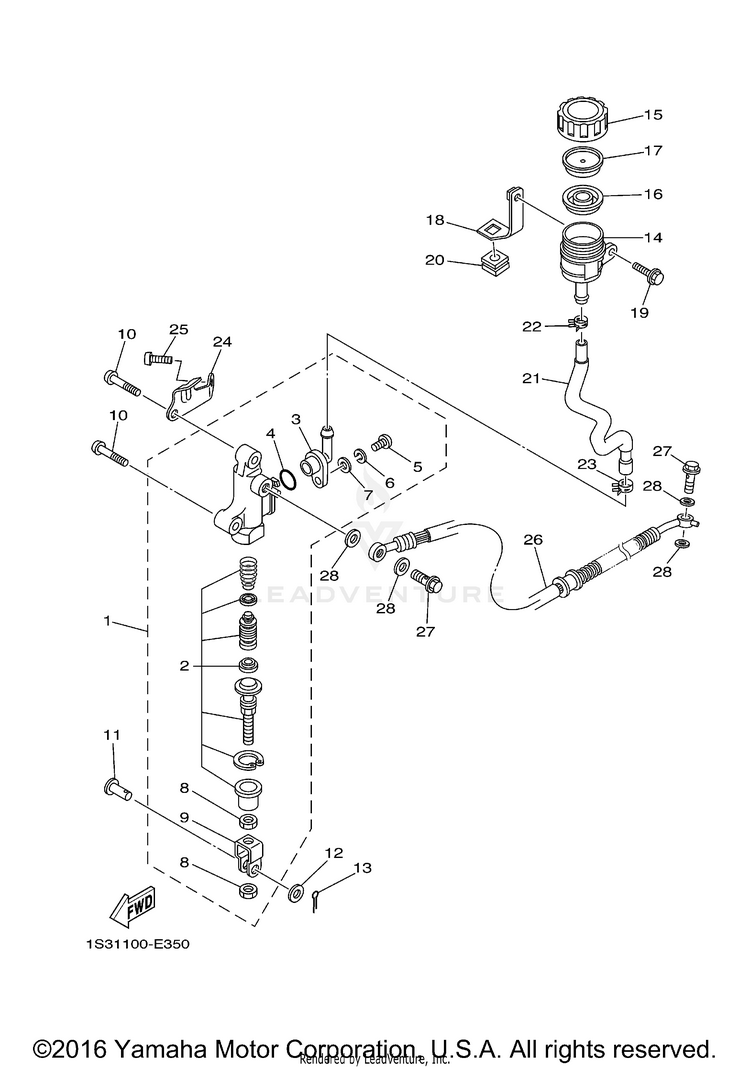

REAR MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11S3-2580E-00-00REAR MASTER CYLINDER ASSY$139.99$109.198 In-Stock
231A-W0042-50-00

(replaces part #
1S3-W0042-50-00)

CYLINDER KIT, MASTER$108.99$85.011 In-Stock
31AE-2582A-00-00JOINT$15.49$12.70Usually ships in 7-10 business days
493210-15566-00

(replaces part #
93210-15620-00)

O-RING$8.49$6.6210+ In-Stock
598517-04012-00

(replaces part #
98506-04012-00)

SCREW,PANHEAD$4.20$3.6110+ In-Stock
692907-04100-00

(replaces part #
92906-04100-00)

WASHER, SPRING$9.49$7.406 In-Stock
792907-04600-00

(replaces part #
92906-04600-00)

WASHER$1.85$1.596 In-Stock
895317-08700-00

(replaces part #
4SS-27218-00-00)

NUT$10.49$8.185 In-Stock
92YK-27222-00-00JOINT$23.99$18.717 In-Stock
1092012-08035-00BOLT, BUTTON HEAD$4.75$4.087 In-Stock
1190240-08005-00PIN, CLEVIS$9.49$7.407 In-Stock
1290201-08083-00WASHER, PLATE$10.49$8.1810+ In-Stock
1391490-16020-00

(replaces part #
91401-16012-00)

PIN, COTTER$6.99$5.456 In-Stock
145JJ-25894-01-00TANK, RESERVOIR$45.99$35.871 In-Stock
153XP-25852-50-00CAP, RESERVOIR$24.99$19.494 In-Stock
162VN-25854-00-00DIAPHRAGM, RESERVOIR$26.99$21.054 In-Stock
172VN-25855-00-00BUSH, DIAPHRAGM$11.99$9.3510+ In-Stock
181S3-26292-00-00STAY$8.49$6.621 In-Stock
1990119-06137-00BOLT, WITH WASHER$9.49$7.406 In-Stock
2090480-15009-00GROMMET$6.49$5.84Usually ships in 7-10 business days
211PE-F5895-00-00HOSE, RESERVOIR$35.99$29.51Usually ships in 7-10 business days
2290467-11044-00CLIP$9.49$7.4010+ In-Stock
2390467-14057-00CLIP$9.49$7.403 In-Stock
241S3-27453-01-00

(replaces part #
1S3-27453-00-00)

COVER 1$19.99$16.39Usually ships in 7-10 business days
2592012-08016-00BOLT, BUTTON HEAD$10.49$8.1810+ In-Stock
261PE-F5874-02-00

(replaces part #
1PE-F5874-00-00)

HOSE, BRAKE 3$29.99$24.59Usually ships in 7-10 business days
2790401-10015-00BOLT, UNION$12.49$9.7410+ In-Stock
2890201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
