2014 Yamaha Super Tenere 1200 Crankcase OEM Parts Diagram

Submodel SUPER TENERE - XTZ12ECL - 2014

Shop Aftermarket Parts

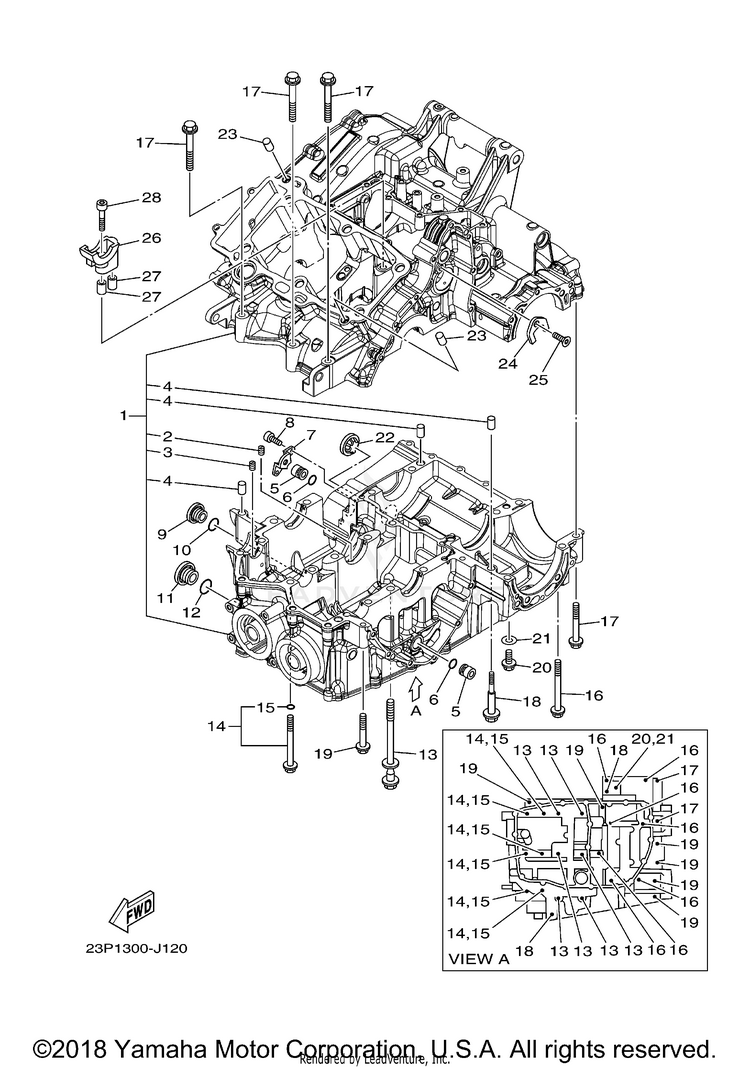

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
123P-15100-09-00CRANKCASE ASSY$2,026.99$1,772.91Usually ships in 7-10 business days
24KM-13572-01-00

(replaces part #
4H7-15138-00-00)

NOZZLE$7.99$7.19Usually ships in 7-10 business days
32UJ-15138-00-00NOZZLE 1$4.60$4.14Usually ships in 7-10 business days
499530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
590338-16262-00PLUG$16.49$13.52Usually ships in 7-10 business days
693210-12790-00O-RING$8.49$6.628 In-Stock
723P-15128-00-00HOLDER$4.25$3.82Usually ships in 7-10 business days
891317-06016-00

(replaces part #
90110-06161-00)

BOLT (4MY)-$1.4210+ In-Stock
936Y-15189-01-00

(replaces part #
36Y-15189-00-00)

PLUG-$16.695 In-Stock
1093210-16325-00O-RING$8.49$6.6210+ In-Stock
114H7-15189-00-00PLUG$33.99$26.518 In-Stock
1293210-20802-00

(replaces part #
93210-207A0-00)

O-RING$0.95$0.8210+ In-Stock
1390119-10051-00BOLT, WITH WASHER$18.49$15.16Usually ships in 7-10 business days
1423P-15156-00-00BOLT, CRANKCASE JOURNAL$11.99$9.83Usually ships in 7-10 business days
1593210-07540-00O-RING$7.49$5.8410+ In-Stock
1695817-08080-00

(replaces part #
95812-08080-00)

BOLT, FLANGE$5.49$4.94Usually ships in 7-10 business days
1795817-08060-00

(replaces part #
95812-08060-00)

BOLT, FLANGE$4.80$4.134 In-Stock
1890109-06100-00BOLT$9.49$8.54Usually ships in 7-10 business days
1995812-06050-00BOLT, FLANGE$2.00$1.80Usually ships in 7-10 business days
2095022-08016-00BOLT, FLANGE-$1.22Usually ships in 7-10 business days
2190430-08119-00GASKET$7.49$5.848 In-Stock
222H7-15361-00-00GAUGE, LEVEL$105.99$82.67Usually ships in 7-10 business days
2399530-10114-00PIN, DOWEL$2.65$2.4810+ In-Stock
243LD-15191-00-00PLATE$6.49$5.84Usually ships in 7-10 business days
2590151-06023-00

(replaces part #
90151-06024-00)

SCREW, COUNTERSUNK$9.49$7.4010+ In-Stock
2623P-15118-00-00HOLDER$41.99$34.43Usually ships in 7-10 business days
2791808-16023-00

(replaces part #
99530-08016-00)

PIN, DOWEL$7.99$6.2310+ In-Stock
2891312-06035-00

(replaces part #
90110-06208-00)

BOLT, HEXAGON SOCKET HEAD$3.90$3.356 In-Stock
