2014 Yamaha WR450F Rear Suspension OEM Parts Diagram

Submodel WR450F - WR450FE - 2014

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR SUSPENSION

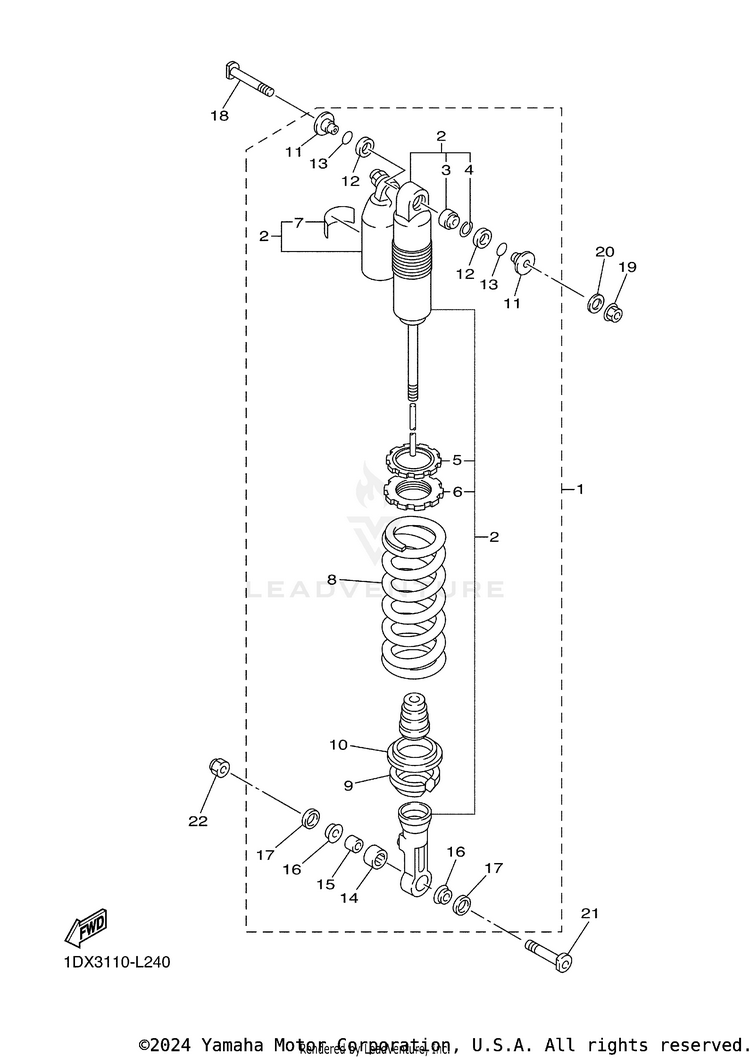

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11DX-22200-10-00SHOCK ABSORBER ASSY, REAR$1,081.99$905.69Usually ships in 7-10 business days
21DX-22201-10-00DAMPER SUB ASSY$776.99$650.24Usually ships in 7-10 business days
34JX-22226-00-00BUSH, SHOCK ABSORBER LOWER$56.99$44.459 In-Stock
AFTERMARKET ALTERNATIVE
$31.00$20.9910+ In-Stock
45DH-23183-00-00CIRCLIP$5.99$4.673 In-Stock
53SP-22234-00-00GUIDE, SPRING 3$47.99$37.436 In-Stock
63SP-22213-00-00SEAT, SPRING UPPER$50.99$39.772 In-Stock
74AA-22259-80-00LABEL, WARNING$14.49$11.30
81DX-22212-20-00SPRING (K=54N/MM)$256.99$213.18Usually ships in 7-10 business days
95XE-22214-00-00GUIDE, SPRING 1$70.99$55.37Usually ships in 7-10 business days
105MV-22224-00-00GUIDE, SPRING 2$26.99$21.0510+ In-Stock
111C3-22253-50-00COLLAR, DISTANCE$49.99$38.9910+ In-Stock
123JE-22475-00-00SEAL, DUST$14.49$11.3010+ In-Stock
134EW-22474-00-00SEAL, RING$7.49$5.8410+ In-Stock
145UN-22176-00-00BEARING$35.99$28.0710+ In-Stock
155MV-22184-00-00BUSH$28.99$22.6110+ In-Stock
165MV-22253-00-00COLLAR, DISTANCE$18.99$14.8110+ In-Stock
175NY-22475-00-00SEAL, DUST$14.49$11.3010+ In-Stock
185XE-22242-01-00

(replaces part #
5XE-22242-00-00)

BOLT 2$7.49$5.8410+ In-Stock
1995602-10200-00NUT, S/L FLANGE$2.70$2.3210+ In-Stock
2092990-10200-00

(replaces part #
92902-10200-00)

WASHER, PLAIN$3.80$3.2710+ In-Stock
215NY-22241-00-00BOLT 1$12.99$10.1310+ In-Stock
2290185-10012-00NUT, SELF-LOCKING$3.60$3.1010+ In-Stock
