2014 Yamaha YZ450F Intake 2 OEM Parts Diagram

Submodel YZ450F - YZ450FEL - 2014

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE 2

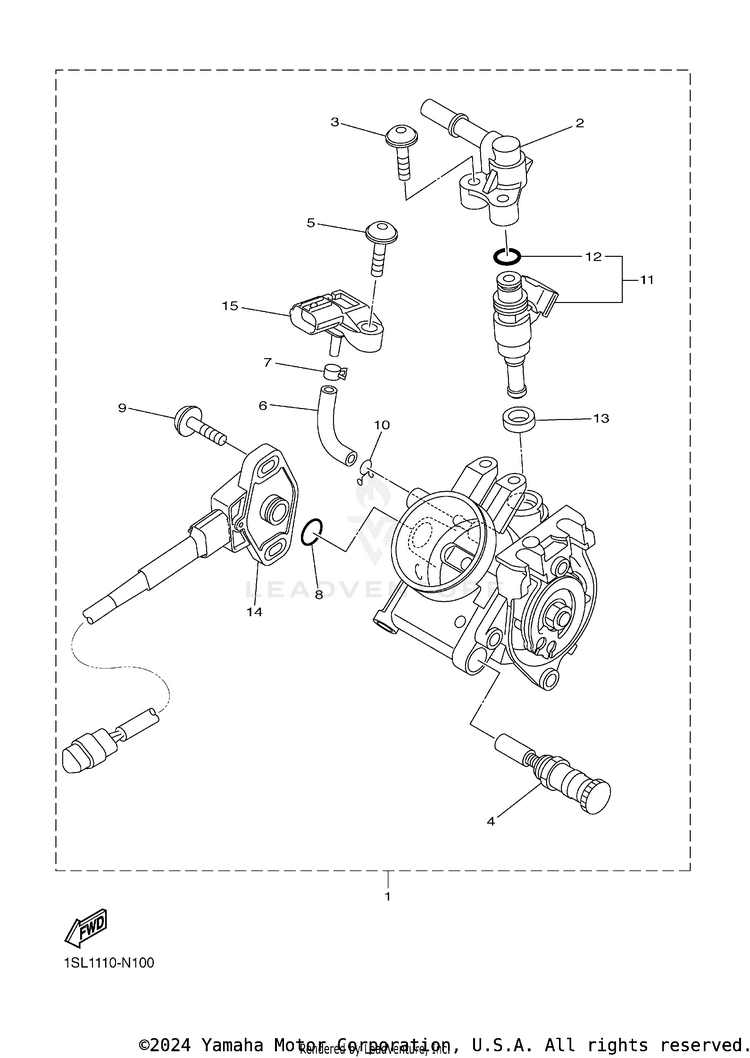

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11SL-13750-00-00THROTTLE BODY ASSY$532.99$463.65Usually ships in 7-10 business days
233D-13938-00-00PIPE$105.99$82.67Usually ships in 7-10 business days
333D-14486-00-00SCREW, ROD$16.49$12.862 In-Stock
41SL-14171-01-00

(replaces part #
1SL-14171-00-00)

PLUNGER, STARTER$149.99$116.991 In-Stock
533D-14325-00-00SCREW, PAN HEAD$7.49$6.74Usually ships in 7-10 business days
633D-14348-00-00PIPE 1$15.49$12.082 In-Stock
733D-13577-00-00CLIP$5.49$4.942 In-Stock
81DX-14562-00-00O-RING$7.49$5.843 In-Stock
91DX-14216-00-00SCREW$5.99$4.676 In-Stock
103TJ-14137-40-00CLIP$8.49$6.6210+ In-Stock
113B4-13761-00-00INJECTOR$250.99$195.7710+ In-Stock
125PS-14147-00-00O-RING$14.49$11.3010+ In-Stock
1390430-09002-00GASKET$12.49$9.7410+ In-Stock
141SL-85885-03-00

(replaces part #
1SL-85885-00-00)

THROTTLE SENSOR ASSY$186.99$145.853 In-Stock
151WS-82380-00-00

(replaces part #
2C0-82380-00-00)

SENSOR, PRESSURE$209.99$163.798 In-Stock
