2014 Yamaha YZ85 Cylinder OEM Parts Diagram

Submodel YZ85 - YZ85E - 2014

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

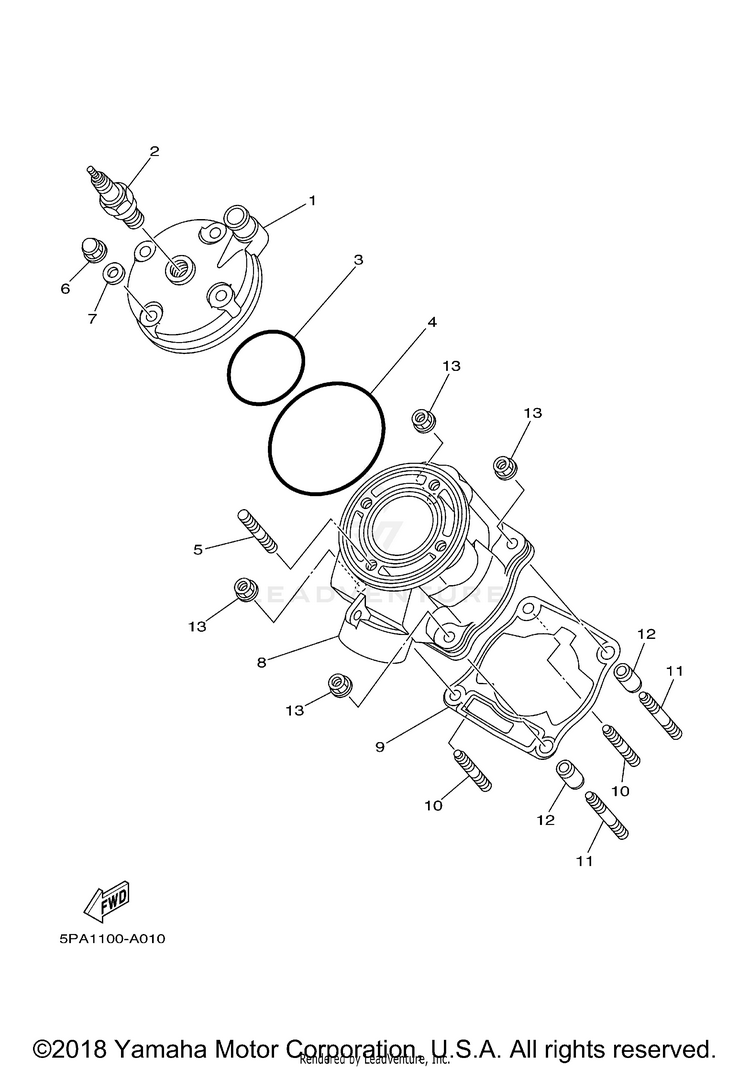

CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15PA-11111-01-00

(replaces part #
5PA-11111-00-00)

HEAD, CYLINDER 1$347.99$287.39Usually ships in 7-10 business days
2BR1-0EG00-00-00

(replaces part #
94702-00368-00)

BR10EG NGK SPLUG 4$7.99$6.2310+ In-Stock
393210-56459-00O-RING | INCL. IN TOP END GASKET KIT$14.49$11.3010+ In-Stock
493210-84724-00O-RING | INCL. IN TOP END GASKET KIT$11.49$8.9610+ In-Stock
590116-08027-00BOLT, STUD$4.10$3.5310+ In-Stock
690176-08005-00NUT, CROWN$2.40$2.0610+ In-Stock
790201-080L8-00WASHER, PLATE | INCL. IN TOP END GASKET KIT$3.65$3.4510+ In-Stock
85PA-11311-30-00

(replaces part #
5PA-11311-20-00)

CYLINDER 1$941.99$734.755 In-Stock
94ES-11351-00-00GASKET, CYLINDER | INCL. IN TOP END GASKET KIT$21.99$17.158 In-Stock
1090116-08031-00BOLT, STUD$10.49$8.1810+ In-Stock
1190116-08028-00BOLT, STUD$9.49$7.4010+ In-Stock
1299590-10114-00PIN, DOWEL$5.99$4.6710+ In-Stock
1390179-08019-00NUT$8.49$6.6210+ In-Stock
145PA-W0002-00-00TOP END GASKET KIT | NOT SHOWN$0.00$0.00Not Shipping
