2015 Yamaha Bolt C-Spec Front Master Cylinder OEM Parts Diagram

Submodel BOLT C SPEC - XVS95CRFCS - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

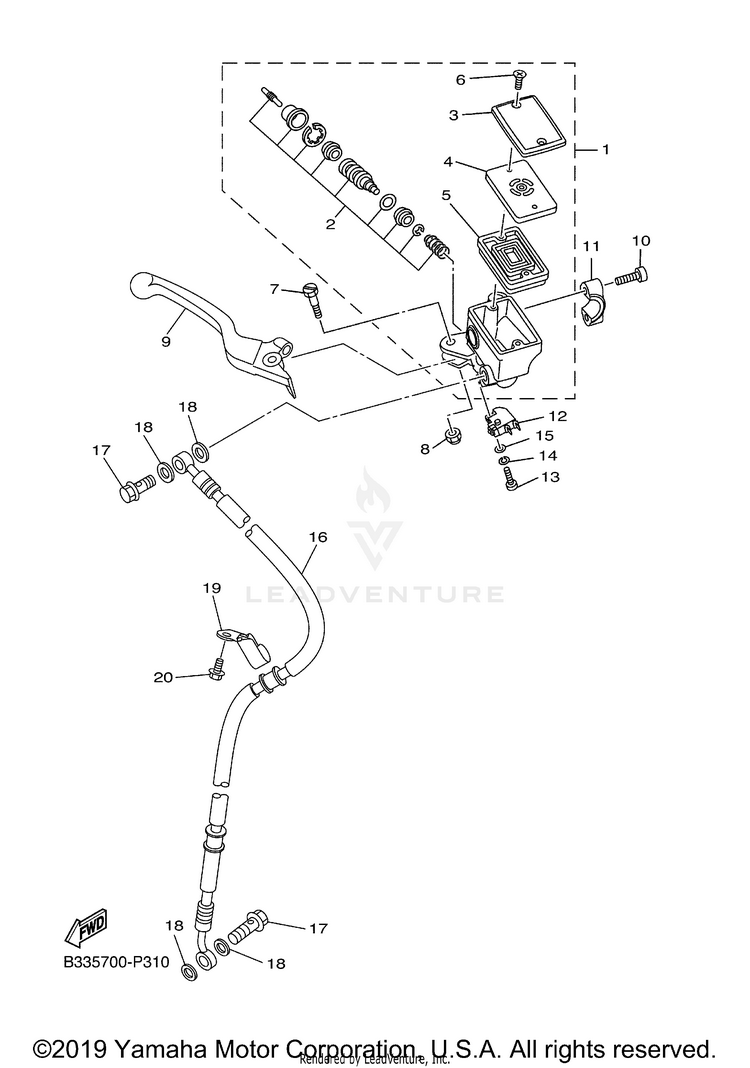

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B33-2580A-00-00MASTER CYLINDER SUB ASSY 2$170.99$133.37Usually ships in 7-10 business days
24B5-25807-00-00CYLINDER KIT, MASTER$61.99$48.35Usually ships in 7-10 business days
35VS-25852-00-00CAP, RESERVOIR$30.99$25.41Usually ships in 7-10 business days
45VS-25855-00-00BUSH, DIAPHRAGM$17.99$14.75Usually ships in 7-10 business days
520S-25854-00-00DIAPHRAGM, RESERVOIR$31.99$26.23Usually ships in 7-10 business days
65VS-2589H-00-00SCREW$4.45$3.834 In-Stock
75VS-2589F-00-00BOLT, LEVER$15.49$12.082 In-Stock
895617-06100-00NUT, U$2.90$2.4910+ In-Stock
9B33-83922-00-00LEVER 2$45.99$37.71Usually ships in 7-10 business days
105VS-26332-00-00BOLT$4.95$4.264 In-Stock
115VS-25867-00-00BRACKET, MASTER CYLINDER$39.99$32.79Usually ships in 7-10 business days
121HP-83980-03-00

(replaces part #
1HP-83980-01-00)

FRONT STOP SWITCH AS$34.99$27.294 In-Stock
1398517-04012-00

(replaces part #
98502-04012-00)

SCREW,PANHEAD$4.20$3.6110+ In-Stock
1492990-04100-00

(replaces part #
92902-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1592990-04600-00

(replaces part #
92902-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
16B33-25872-00-00HOSE, BRAKE 1$89.99$70.19Usually ships in 7-10 business days
1790401-10020-00BOLT, UNION$10.49$8.602 In-Stock
1890430-10005-00GASKET$9.49$7.4010+ In-Stock
191TP-25886-00-00HOLDER, BRAKE HOSE$16.49$13.52Usually ships in 7-10 business days
2095027-06010-00BOLT, FLANGE$3.55$3.0510+ In-Stock
