2015 Yamaha Bolt Oil Pump OEM Parts Diagram

Submodel BOLT - XVS95CFCL - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

OIL PUMP

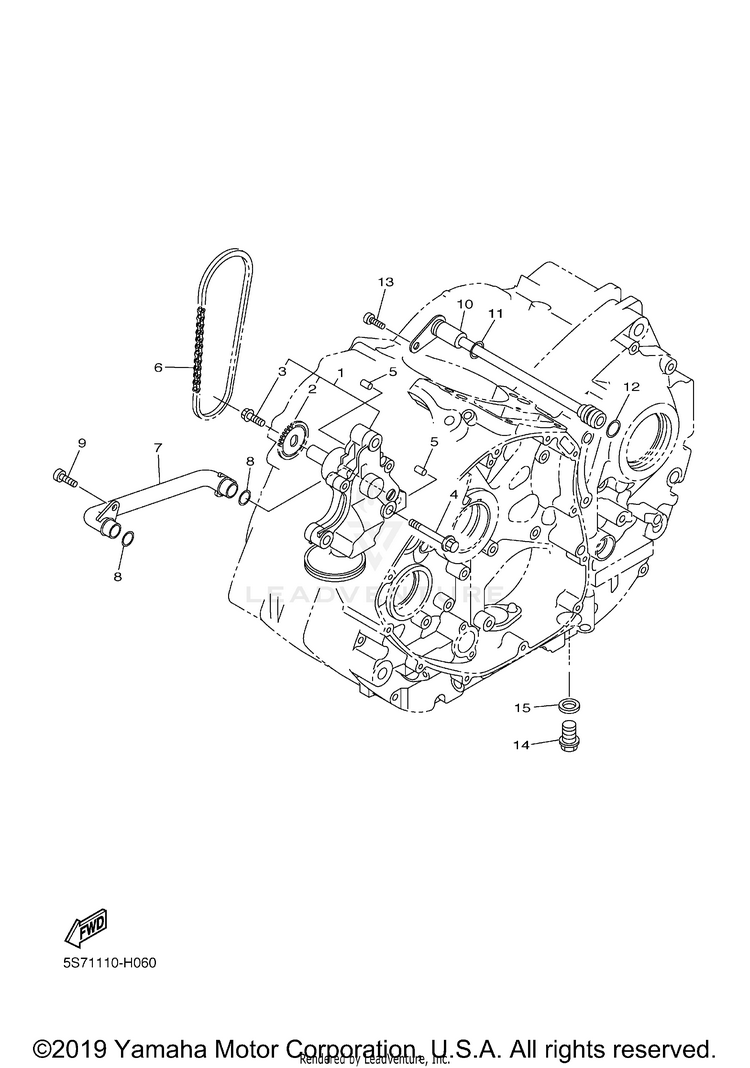

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15S7-13300-00-00OIL PUMP ASSY$241.99$188.75Usually ships in 7-10 business days
23D8-13355-00-00SPROCKET, DRIVEN$22.99$18.85Usually ships in 7-10 business days
390105-06066-00BOLT, FLANGE$9.49$8.54Usually ships in 7-10 business days
495814-08045-00

(replaces part #
95812-08045-00)

BOLT, FLANGE$4.75$4.086 In-Stock
599530-08012-00PIN, DOWEL$6.99$5.4510+ In-Stock
694580-25062-00CHAIN (DID25 62L)$12.49$10.48Usually ships in 7-10 business days
73D8-13416-00-00PIPE, OIL 1$48.99$40.17Usually ships in 7-10 business days
893210-14003-00O-RING$9.49$7.4010+ In-Stock
991317-06016-00

(replaces part #
90110-06161-00)

BOLT (4MY)-$1.4210+ In-Stock
105S7-13171-00-00PIPE, DELIVERY 2$58.99$46.01Usually ships in 7-10 business days
1193210-09350-00

(replaces part #
93210-09165-00)

O-RING$7.49$5.8410+ In-Stock
1293210-07540-00

(replaces part #
93210-06564-00)

O-RING$7.49$5.8410+ In-Stock
1391317-06016-00

(replaces part #
90110-06161-00)

BOLT (4MY)-$1.4210+ In-Stock
1490340-14132-00PLUG, STRAIGHT SCREW$3.15$2.7110+ In-Stock
15214-11198-01-00GASKET$3.17$2.8910+ In-Stock
