2015 Yamaha FZ-07 Flasher Light OEM Parts Diagram

Submodel FZ07 - FZ07FCR - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FLASHER LIGHT

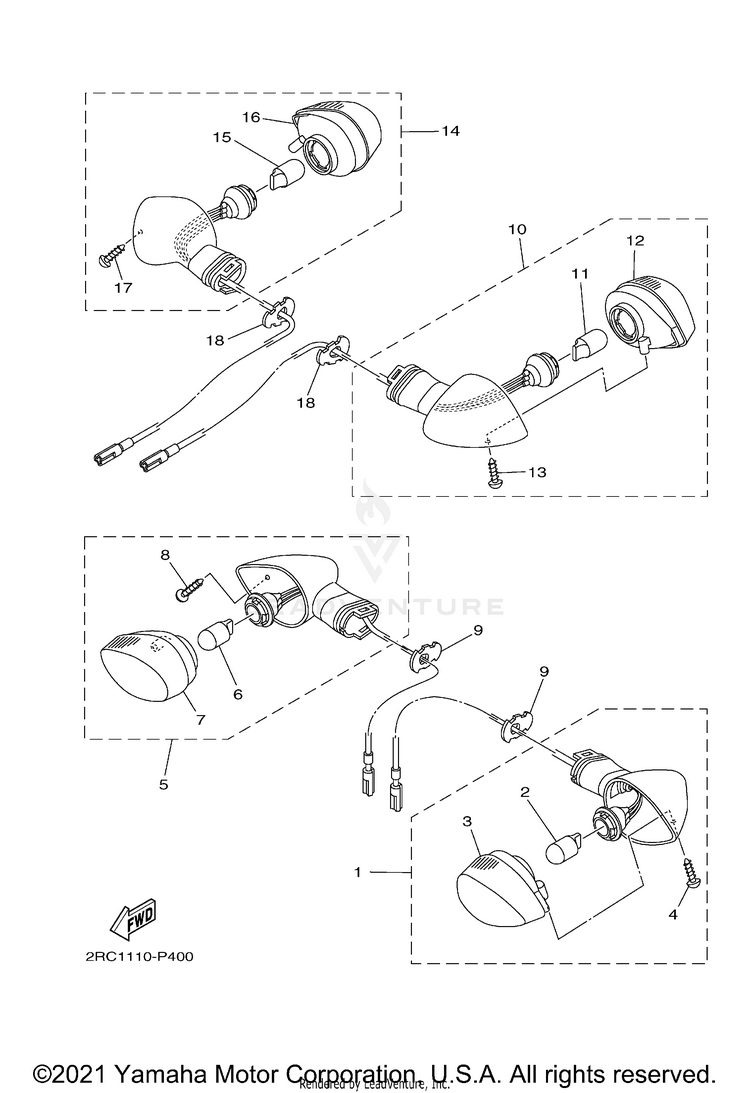

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15PW-83310-10-00FRONT FLASHER LIGHT ASSY 1$117.99$92.03Usually ships in 7-10 business days
25GJ-83331-00-00BULB, FLASHER (12V-21/5W T20)$16.49$12.862 In-Stock
35PW-8333A-10-00LENS COMP 1$36.99$28.853 In-Stock
497707-40012-00

(replaces part #
97706-04012-00)

SCREW, TAPPING$9.49$7.4010+ In-Stock
55PW-83320-11-00

(replaces part #
5PW-83320-10-00)

FRONT FLASHER LIGHT ASSY 2$56.99$44.45Usually ships in 7-10 business days
65GJ-83331-00-00BULB, FLASHER (12V-21/5W T20)$16.49$12.862 In-Stock
75PW-8334A-10-00LENS COMP 2$36.99$30.33Usually ships in 7-10 business days
897707-40012-00

(replaces part #
97706-04012-00)

SCREW, TAPPING$9.49$7.4010+ In-Stock
93D7-83318-10-00STAY, FLASHER 1$9.49$8.54Usually ships in 7-10 business days
105YU-83330-11-00

(replaces part #
5YU-83330-10-00)

REAR FLASHER LIGHT A$55.99$43.673 In-Stock
115PW-83331-00-00BULB (12V-21/5W T20)$15.49$12.70Usually ships in 7-10 business days
125PW-8334A-10-00LENS COMP 2$36.99$30.33Usually ships in 7-10 business days
1397707-40012-00

(replaces part #
97706-04012-00)

SCREW, TAPPING$9.49$7.4010+ In-Stock
145YU-83340-11-00

(replaces part #
5YU-83340-10-00)

REAR FLASHER LIGHT A$55.99$43.67Usually ships in 7-10 business days
155PW-83331-00-00BULB (12V-21/5W T20)$15.49$12.70Usually ships in 7-10 business days
165PW-8333A-10-00LENS COMP 1$36.99$28.853 In-Stock
1797707-40012-00

(replaces part #
97706-04012-00)

SCREW, TAPPING$9.49$7.4010+ In-Stock
183D7-83318-10-00STAY, FLASHER 1$9.49$8.54Usually ships in 7-10 business days
