2015 Yamaha FZ-07 Shift Cam Fork OEM Parts Diagram

Submodel FZ07 - FZ07FCW - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT CAM FORK

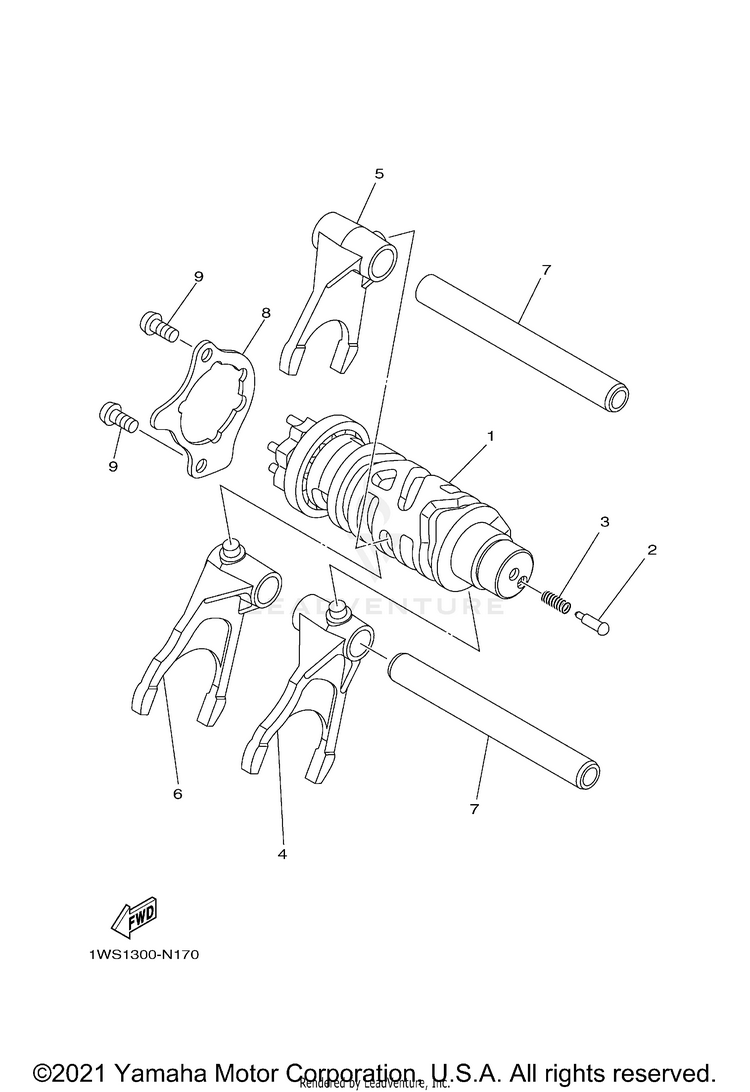

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WS-18540-00-00SHIFT CAM ASSY$144.99$113.09Usually ships in 7-10 business days
23D7-18542-00-00POINT, NEUTRAL$7.49$5.84
390501-06022-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
41WS-18511-00-00FORK, SHIFT 1$101.99$79.55Usually ships in 7-10 business days
51WS-18512-00-00FORK, SHIFT 2$98.99$77.21Usually ships in 7-10 business days
61WS-18513-00-00FORK, SHIFT 3$101.99$79.55Usually ships in 7-10 business days
720S-18535-00-00BAR, SHIFT FORK GUIDE 2$42.99$35.25Usually ships in 7-10 business days
81WS-18536-00-00STOPPER, SHIFT BAR$42.99$35.25Usually ships in 7-10 business days
990149-06156-00

(replaces part #
90149-06158-00)

SCREW$9.49$8.54Usually ships in 7-10 business days
