2015 Yamaha Super Tenere 1200 ES Electrical 3 OEM Parts Diagram

Submodel SUPER TENERE ES CA - XTZ12EFCR - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 3

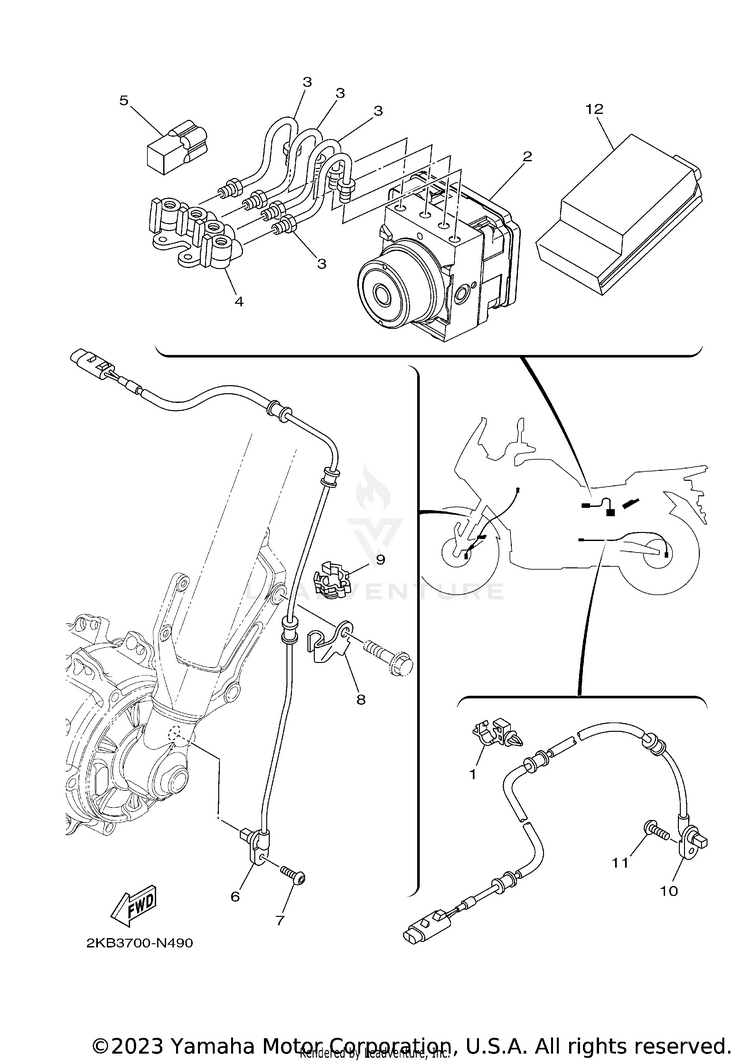

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
190464-10008-00CLAMP$3.80$3.42Usually ships in 7-10 business days
223P-85930-19-00HYDRAULIC UNIT ASSY$2,161.99$1,888.96Usually ships in 7-10 business days
323P-25871-01-00

(replaces part #
23P-25871-00-00)

PIPE, BRAKE$11.49$9.42Usually ships in 7-10 business days
423P-25885-00-00JOINT$91.99$71.75Usually ships in 7-10 business days
53YA-82378-00-00CONNECTOR$11.49$9.42Usually ships in 7-10 business days
623P-85970-00-00WHEEL SENSOR ASSY, FRONT$232.99$181.73Usually ships in 7-10 business days
792014-06014-00BOLT, BUTTON HEAD$4.05$3.486 In-Stock
823P-23318-00-00HOLDER, CABLE 1$15.49$12.70Usually ships in 7-10 business days
990464-12013-00CLAMP$9.49$8.54Usually ships in 7-10 business days
1023P-85980-00-00WHEEL SENSOR ASSY, REAR$174.99$136.49Usually ships in 7-10 business days
1192014-06014-00BOLT, BUTTON HEAD$4.05$3.486 In-Stock
122KB-85902-01-00

(replaces part #
2KB-85902-00-00)

SUSPENSION CONTROL UNIT ASSY$1,138.99$994.65Usually ships in 7-10 business days
