2015 Yamaha Viking 700 FI 4x4 Headlight OEM Parts Diagram

Submodel VIKING HUNTER - YXM700DHFH - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

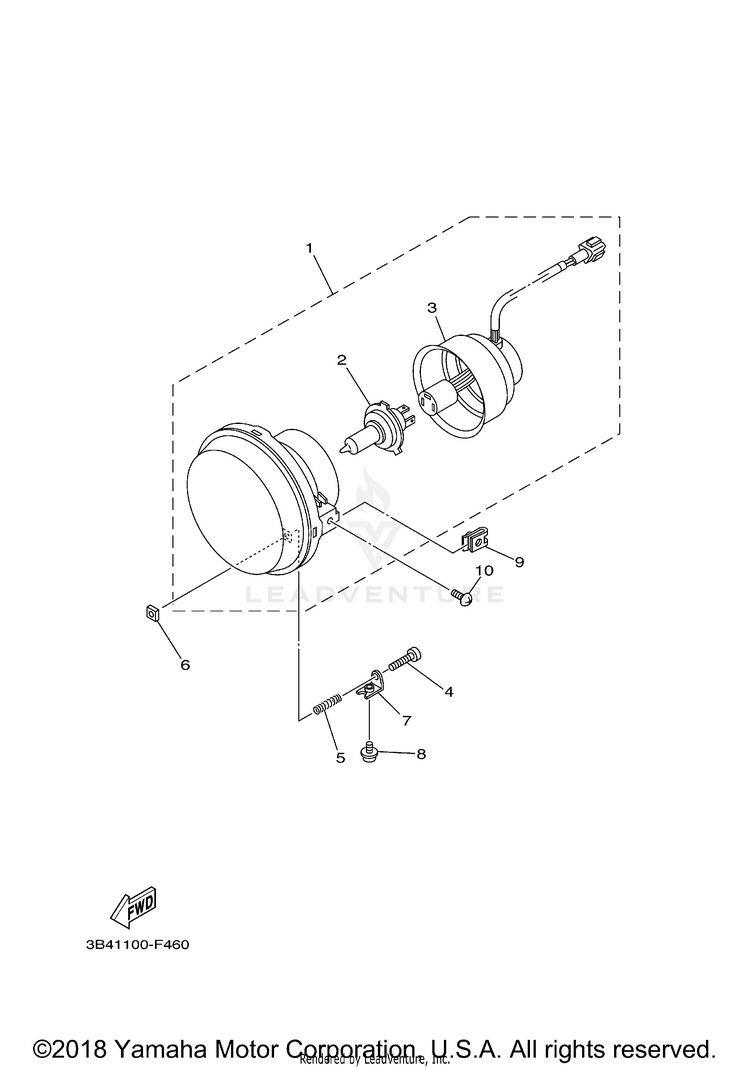

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
128P-84300-00-00HEADLIGHT ASSY$151.99$118.55Usually ships in 7-10 business days
25ST-H4314-10-00

(replaces part #
28P-84314-00-00)

BULB, HEADLIGHT (1$32.99$25.739 In-Stock
33B4-84340-00-00SOCKET CORD ASSY 1$62.99$49.131 In-Stock
498502-03530-00SCREW, PAN HEAD$4.65$4.005 In-Stock
590501-05764-00SPRING, COMPRESSION$2.20$1.896 In-Stock
62GU-84334-00-00NUT, ADJUSTING$8.49$6.627 In-Stock
75GH-84703-10-00BRACKET$5.99$5.39Usually ships in 7-10 business days
890159-05044-00SCREW, WITH WASHER$4.65$4.004 In-Stock
990183-05008-00NUT, SPRING$10.49$8.1810+ In-Stock
1090154-05021-00SCREW, BINDING$9.49$7.406 In-Stock
