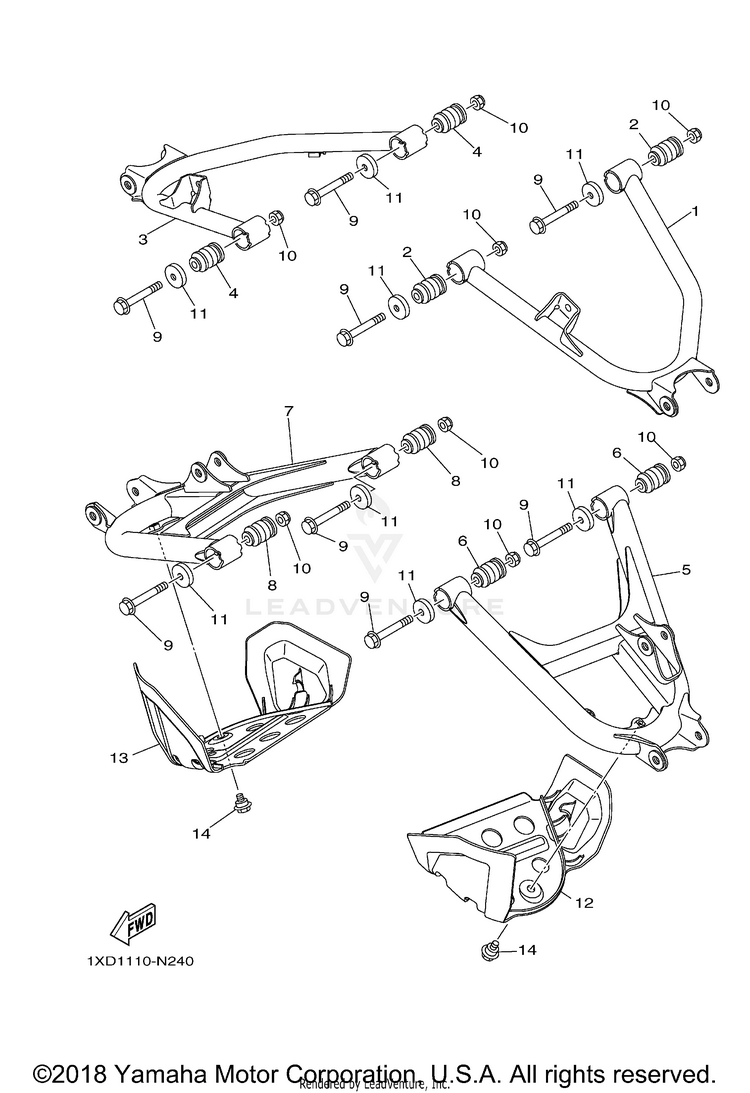

REAR ARM

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11XD-F2171-00-00ARM, REAR 1$53.99$42.11Usually ships in 7-10 business days
21HP-F3526-00-00BUSH$24.99$19.4910+ In-Stock
31XD-F2172-00-00ARM, REAR 2$88.99$69.41Usually ships in 7-10 business days
41HP-F3526-00-00BUSH$24.99$19.4910+ In-Stock
51XD-F217M-01-00ARM 1$76.99$60.05Usually ships in 7-10 business days
61HP-F3526-00-00BUSH$24.99$19.4910+ In-Stock
71XD-F217N-01-00ARM 2$75.99$59.27Usually ships in 7-10 business days
81HP-F3526-00-00BUSH$24.99$19.4910+ In-Stock
990105-10267-00BOLT, FLANGE$10.49$8.188 In-Stock
1090185-10012-00NUT, SELF-LOCKING$3.60$3.1010+ In-Stock
115KM-22149-10-00WASHER$8.49$6.6210+ In-Stock
121XD-F2128-01-00

(replaces part #
1XD-F2128-00-00)

COVER, THRUST 1$11.99$9.352 In-Stock
131XD-F2129-01-00

(replaces part #
1XD-F2129-00-00)

COVER, THRUST 2$11.99$9.833 In-Stock
1490109-06220-00BOLT$11.49$8.968 In-Stock
