2015 Yamaha Viking 700 FI 4x4 Steering OEM Parts Diagram

Submodel VIKING EPS - YXM700PFG - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

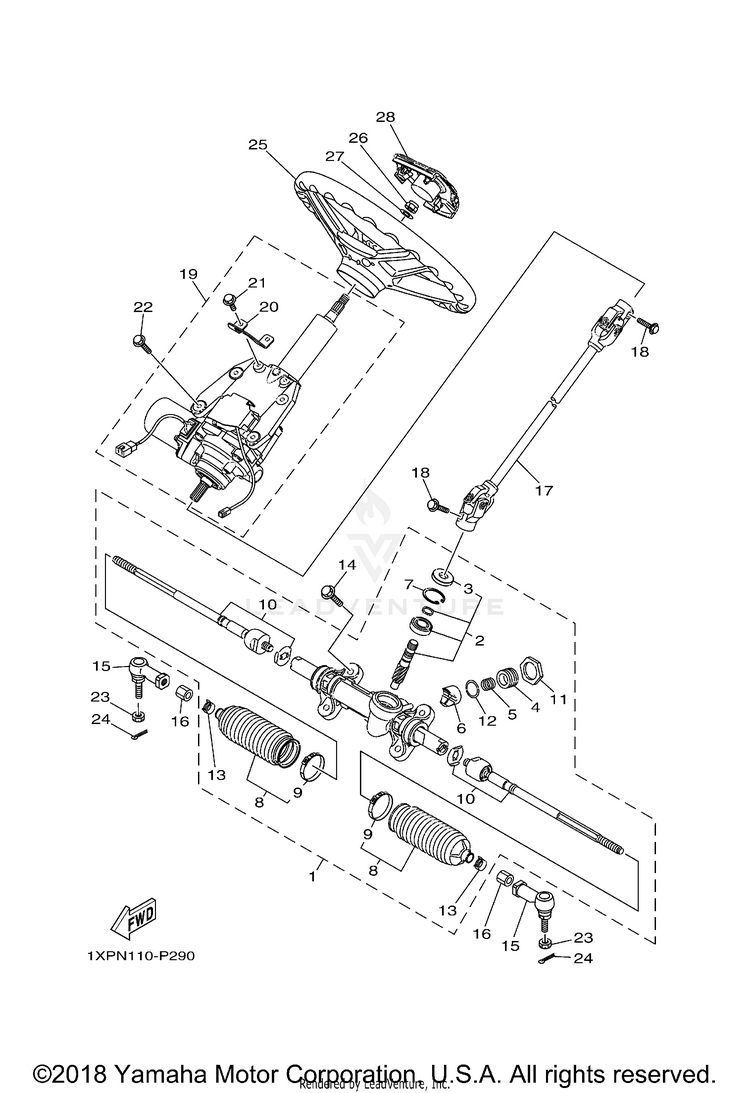

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11XD-F3400-02-00

(replaces part #
1XD-F3400-00-00)

STEERING ASSY-$167.642 In-Stock
21XD-F38G0-00-00STEERING PINION SET$44.99$36.89Usually ships in 7-10 business days
31XD-F3844-00-00SEAL$5.49$4.941 In-Stock
41XD-F387G-00-00COVER, ADJUST$3.15$2.84Usually ships in 7-10 business days
51XD-F387K-00-00SPRING, PRESSURE$1.90$1.77Usually ships in 7-10 business days
61XD-F387F-00-00PAD, PRESSURE$15.49$12.70Usually ships in 7-10 business days
71XD-F387J-00-00RING, STOPPER$1.05$0.96Usually ships in 7-10 business days
81XD-F1208-00-00SEAL SET, 1 | INCL LH AND RH SEALS$22.99$17.936 In-Stock
91XD-F3489-00-00BAND$3.05$2.6210+ In-Stock
101XD-F38H0-00-00RACK END SET$93.99$73.314 In-Stock
111XD-F178K-00-00LOCK ASSY$2.60$2.34Usually ships in 7-10 business days
121XD-F3165-00-00WASHER, FELT$2.10$1.89Usually ships in 7-10 business days
131XD-F3447-00-00CLIP$2.10$1.818 In-Stock
1495022-10030-00BOLT, FLANGE$8.49$7.64Usually ships in 7-10 business days
155B4-23841-00-00JOINT, UNIVERSAL 1$75.99$59.275 In-Stock
AFTERMARKET ALTERNATIVE
$69.99$59.9910+ In-Stock
162PG-F3833-00-00NUT 1$3.00$2.582 In-Stock
171XD-F3840-01-00

(replaces part #
1XD-F3840-00-00)

STEERING SHAFT ASS$72.99$56.93Usually ships in 7-10 business days
1895022-08025-00BOLT, FLANGE$9.49$7.403 In-Stock
191XP-238D0-03-00

(replaces part #
1XP-238D0-00-00)

STEERING COLUMN SET$2,221.99$1,944.21Usually ships in 7-10 business days
201XP-23881-00-00BRACKET 1$6.99$6.29Usually ships in 7-10 business days
2195817-06016-00

(replaces part #
95822-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
2295812-08020-00BOLT, FLANGE$2.80$2.4110+ In-Stock
2390171-12001-00NUT, CASTLE$3.55$3.0510+ In-Stock
2491490-20025-00

(replaces part #
91402-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
252HC-F3838-09-00

(replaces part #
16B-F3838-00-00)

STEERING WHEEL KIT$182.99$142.73Usually ships in 7-10 business days
2690185-12008-00NUT, SELF-LOCKING$10.49$8.182 In-Stock
2792990-12200-00

(replaces part #
92902-12200-00)

WASHER, PLAIN$9.49$7.406 In-Stock
281XD-F3818-00-00COVER, STEERING$7.49$6.74Usually ships in 7-10 business days
