2015 Yamaha Viking VI 700 4x4 Crankshaft Piston OEM Parts Diagram

Submodel VIKING VI HUNTER - YXC700DHFH - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

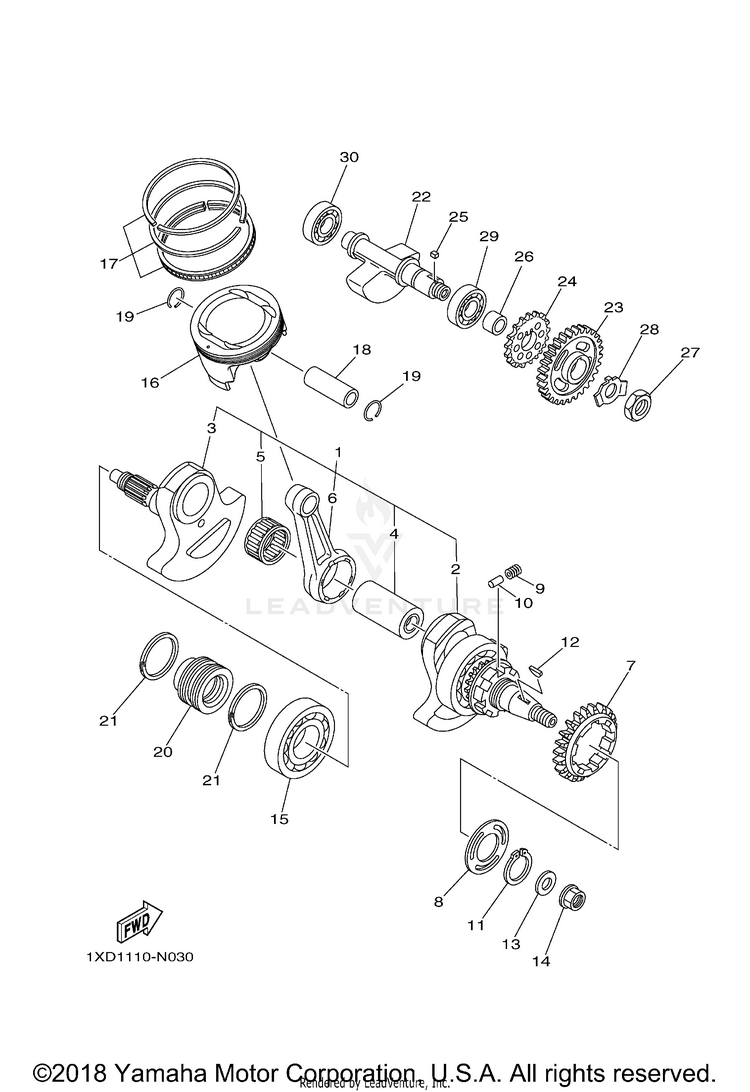

CRANKSHAFT PISTON

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12BG-11400-10-00

(replaces part #
2BG-11400-00-00)

CRANKSHAFT ASSY$684.99$551.991 In-Stock
23B4-11401-09-00CRANK SUB ASSY 1$334.99$277.93Usually ships in 7-10 business days
33B4-11402-09-00CRANK SUB ASSY 2$271.99$215.26Usually ships in 7-10 business days
45VK-11681-01-00PIN, CRANK 1$105.99$82.67Usually ships in 7-10 business days
593310-84037-00BEARING$90.99$70.97Usually ships in 7-10 business days
62BG-11651-00-00ROD, CONNECTING$158.99$124.01Usually ships in 7-10 business days
71HP-11536-00-00GEAR, DRIVE (44T)$161.99$126.35Usually ships in 7-10 business days
85KM-11565-00-00WASHER, BEARING COVER$15.49$12.081 In-Stock
990501-220A1-00SPRING, COMPRESSION$8.49$6.6210+ In-Stock
1093606-09002-00PIN, DOWEL$4.45$3.8310+ In-Stock
1193410-35M10-00

(replaces part #
99009-35400-00)

CIRCLIP (6U2)$8.49$6.622 In-Stock
1290280-05001-00KEY, WOODRUFF$13.49$10.5210+ In-Stock
1390201-16013-00WASHER, PLATE$15.49$12.081 In-Stock
1490179-16004-00NUT$17.49$13.646 In-Stock
1593306-30810-00BEARING$82.99$64.7310+ In-Stock
162BG-11631-00-00PISTON (STD)$172.99$134.939 In-Stock
171S3-11603-10-00PISTON RING SET (STD)$66.99$52.2510+ In-Stock
185VK-11633-00-00PIN, PISTON$45.99$35.8710+ In-Stock
1993450-24154-00CIRCLIP$3.40$2.9210+ In-Stock
203B4-16181-00-00SPACER 1$111.99$87.35Usually ships in 7-10 business days
212BG-11447-01-00

(replaces part #
2BG-11447-00-00)

SEAL, CRANK$18.99$14.819 In-Stock
222BG-11454-00-00WEIGHT 1$131.99$102.95Usually ships in 7-10 business days
231HP-11531-10-00GEAR, BALANCE WEIGHT$140.99$109.97Usually ships in 7-10 business days
241HP-13354-00-00SPROCKET, DRIVE$65.99$51.47Usually ships in 7-10 business days
2590282-05065-00

(replaces part #
90282-05013-00)

KEY, STRAIGHT$10.49$8.188 In-Stock
2690387-24001-00COLLAR$32.99$27.05Usually ships in 7-10 business days
2790170-18003-00NUT$16.49$12.866 In-Stock
2890215-18001-00WASHER, LOCK$13.49$10.5210+ In-Stock
2993306-30560-00

(replaces part #
93306-30534-00)

BEARING$85.99$67.076 In-Stock
3093306-30421-00

(replaces part #
93306-30438-00)

BEARING$71.99$56.1510+ In-Stock
