2015 Yamaha YFZ450R Front Wheel OEM Parts Diagram

Submodel YFZ450R SPECIAL EDIT - YFZ450RSFB - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT WHEEL

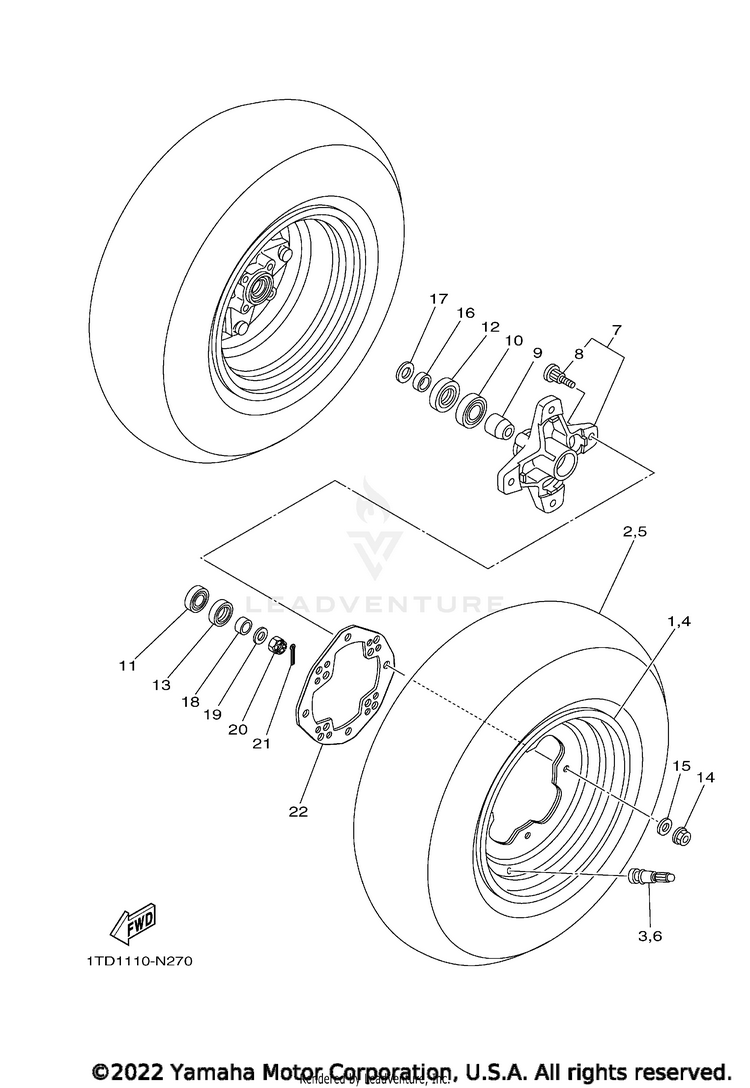

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11TD-F5180-11-00

(replaces part #
1TD-F5180-10-00)

WHEEL COMP.$183.99$170.282 In-Stock
294107-10802-00TIRE (AT21X7R10 MS21**TL) | MAXXIS$285.99$223.07Usually ships in 7-10 business days
393900-00812-00

(replaces part #
93900-00813-00)

VALVE, RIM (TR413) | MAXXIS$9.49$7.405 In-Stock
41TD-F5180-11-00

(replaces part #
1TD-F5180-10-00)

WHEEL COMP.$183.99$170.282 In-Stock
594107-10802-00TIRE (AT21X7R10 MS21**TL) | MAXXIS$285.99$223.07Usually ships in 7-10 business days
693900-00812-00

(replaces part #
93900-00813-00)

VALVE, RIM (TR413) | MAXXIS$9.49$7.405 In-Stock
71PE-F510D-00-00HUB ASSY 2$80.99$63.173 In-Stock
890114-10006-00BOLT, SERRATION$6.49$5.0610+ In-Stock
95LP-25117-00-00SPACER, BEARING$18.99$14.817 In-Stock
1093306-00446-00BEARING$47.99$37.4310+ In-Stock
1193306-20231-00BEARING$25.99$20.2710+ In-Stock
1293105-26026-00OIL SEAL$13.49$10.5210+ In-Stock
1393102-22216-00OIL SEAL$12.49$9.7410+ In-Stock
1495704-10500-00

(replaces part #
95702-10500-00)

NUT, WITH WASHER-$2.285 In-Stock
1592990-10200-00

(replaces part #
92902-10200-00)

WASHER, PLAIN$3.80$3.2710+ In-Stock
1690387-20005-00COLLAR$28.99$22.6110+ In-Stock
1790201-20022-00WASHER, PLATE$9.49$7.4010+ In-Stock
1890387-150R1-00COLLAR$8.49$6.6210+ In-Stock
1990201-14220-00

(replaces part #
90201-14586-00)

WASHER, PLATE$9.49$7.4010+ In-Stock
2090171-14002-00NUT, CASTLE$10.49$8.1810+ In-Stock
2191401-30025-00

(replaces part #
91402-30025-00)

PIN, COTTER$9.49$7.409 In-Stock
221S3-25127-01-00COVER, PLATE$8.49$6.628 In-Stock
