2015 Yamaha YZ85 Frame OEM Parts Diagram

Submodel YZ85 - YZ85F - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

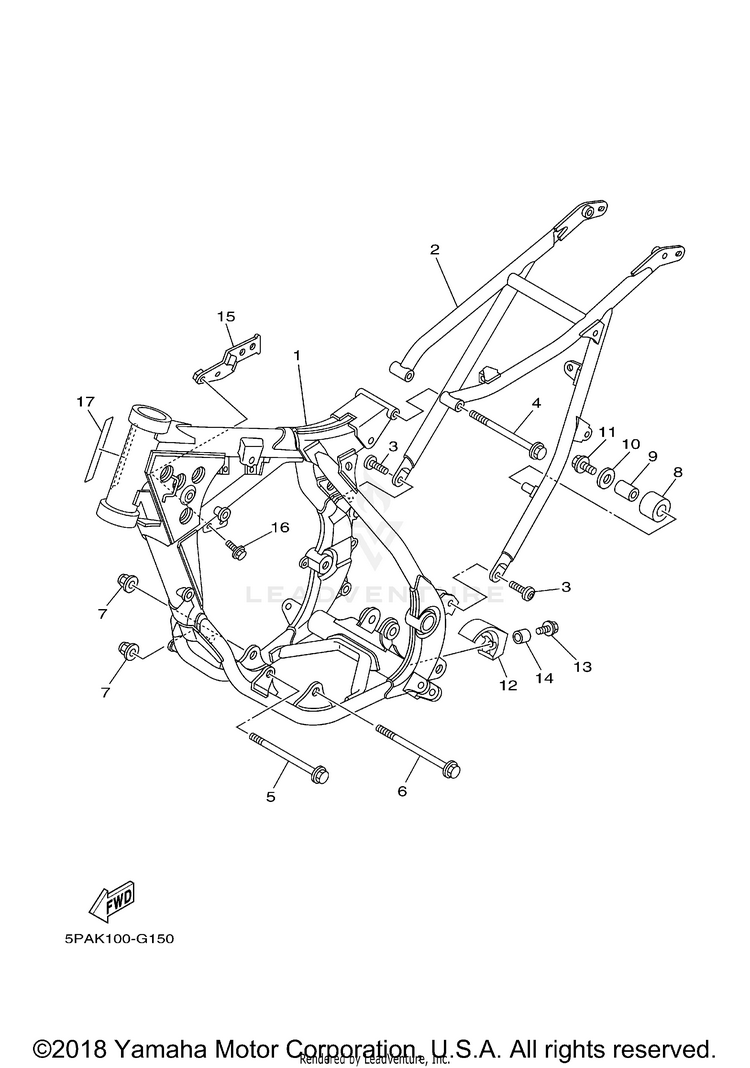

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
199999-04414-00

(replaces part #
5PA-21101-12-33)

FRONT FRAME SET. | YB FOR DPBSE$1,132.99$991.01Usually ships in 7-10 business days
25PA-21190-02-33

(replaces part #
5PA-21190-00-33)

REAR FRAME COMP. | YB FOR DPBSE$325.99$254.271 In-Stock
390111-08029-00BOLT, HEX. SOCKET BUTTON$9.49$7.403 In-Stock
495812-08125-00BOLT, FLANGE$4.45$3.834 In-Stock
590105-10220-00BOLT, FLANGE$11.49$8.964 In-Stock
690105-10219-00BOLT, FLANGE$8.49$6.624 In-Stock
795602-10200-00NUT, S/L FLANGE$2.70$2.3210+ In-Stock
830X-22178-00-00TENSIONER$38.99$30.4110+ In-Stock
94V4-22184-00-00BUSH$4.80$4.1310+ In-Stock
1090201-08078-00WASHER, PLATE$4.00$3.441 In-Stock
1195022-08012-00BOLT, FLANGE$13.49$10.524 In-Stock
1299999-04397-00

(replaces part #
4ES-22178-00-00)

TENSIONER SET$20.99$16.375 In-Stock
1390119-06159-00BOLT, WITH WASHER$9.49$7.403 In-Stock
1490387-067K6-00COLLAR$11.49$8.967 In-Stock
155PA-21274-10-00BRACKET, C.D.I. UNIT$14.49$11.883 In-Stock
1695022-06012-00BOLT, FLANGE$3.55$3.0510+ In-Stock
173HA-24141-00-00PROTECTOR, FUEL TANK$15.49$12.70Usually ships in 7-10 business days
