2016 Yamaha FZ-07 Steering Handle Cable OEM Parts Diagram

Submodel FZ07 - FZ07GCS - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING HANDLE CABLE

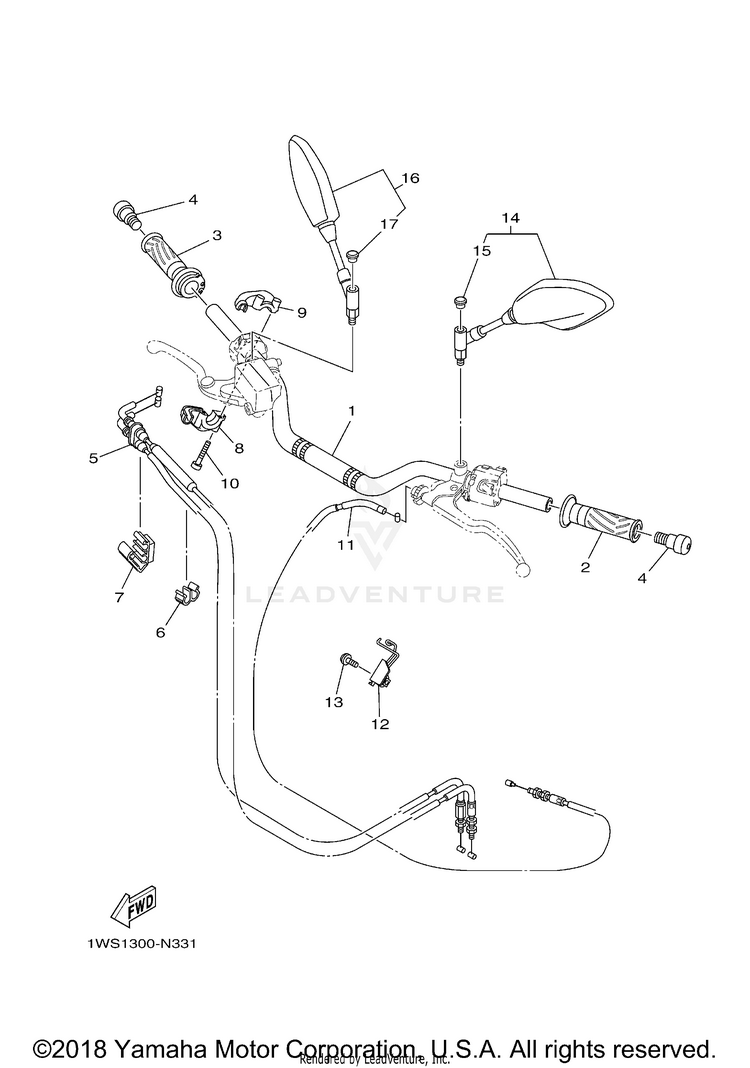

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WS-26111-00-00HANDLEBAR$115.99$90.47Usually ships in 7-10 business days
24YR-26241-03-00

(replaces part #
4YR-26241-02-00)

GRIP$12.99$10.135 In-Stock
31WS-26240-01-00

(replaces part #
1WS-26240-00-00)

GRIP ASSY$30.99$25.41Usually ships in 7-10 business days
45RU-26246-00-00END, GRIP$34.99$27.291 In-Stock
51WS-26301-00-00THROTTLE CABLE ASSY$62.99$49.13Usually ships in 7-10 business days
690468-15139-00CLIP$8.49$7.64Usually ships in 7-10 business days
739P-2627E-00-00CLAMP, WIRE$5.99$5.39Usually ships in 7-10 business days
81WS-26281-00-00CAP, GRIP UPPER$14.49$11.88Usually ships in 7-10 business days
91WS-26282-00-00CAP, GRIP UNDER$15.49$12.084 In-Stock
1091317-05040-00BOLT, HEX. SOCKET HEAD$3.10$2.79Usually ships in 7-10 business days
111WS-26335-00-00CABLE, CLUTCH$30.99$24.173 In-Stock
121WS-2612E-00-00BRACKET$31.99$26.23Usually ships in 7-10 business days
1390111-06101-00BOLT, HEX. SOCKET BUTTON$8.49$7.64Usually ships in 7-10 business days
141RC-26280-09-00

(replaces part #
1RC-26280-00-00)

REAR VIEW MIRROR ASSY (LEFT)$66.99$52.252 In-Stock
1523P-26133-00-00CAP$7.49$5.846 In-Stock
161RC-26290-09-00

(replaces part #
1RC-26290-00-00)

REAR VIEW MIRROR ASSY (RIGHT)$66.99$52.252 In-Stock
1723P-26133-00-00CAP$7.49$5.846 In-Stock
