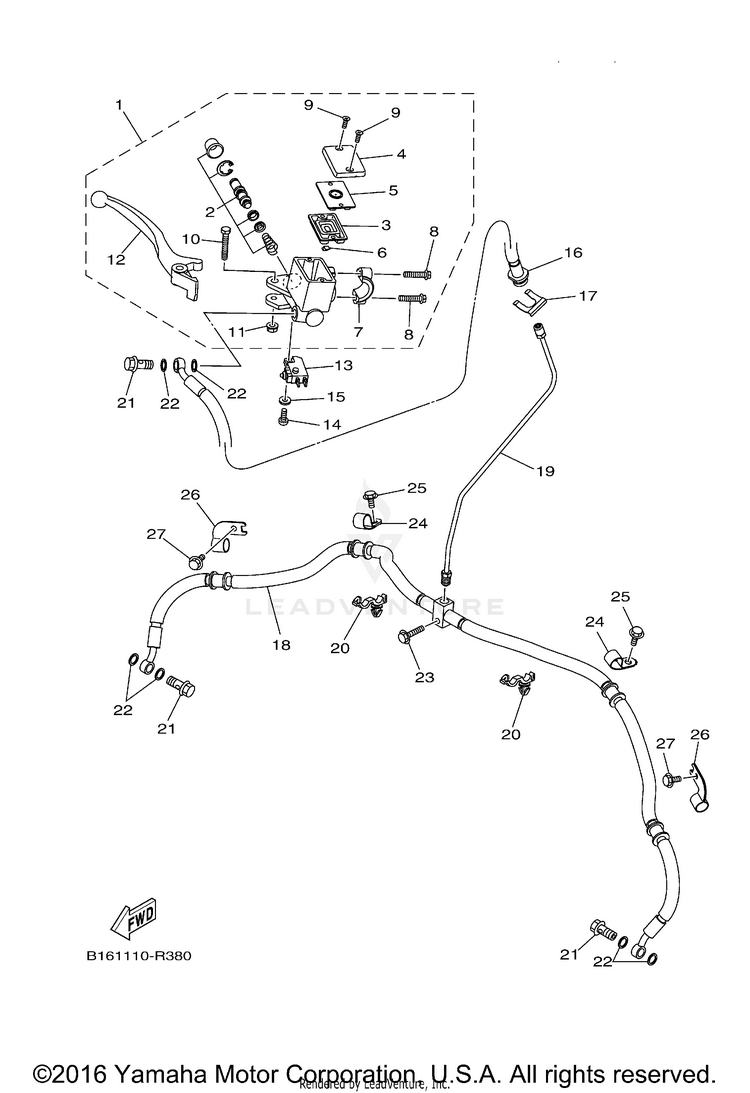

2016 Yamaha Kodiak 700 4x4 Front Master Cylinder OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	B16-F583T-01-00 (replaces part # B16-F583T-00-00)	MASTER CYLINDER ASSY	$83.99	$65.51	1 In-Stock
2	B16-F5807-00-00	CYLINDER KIT, MASTER	$33.99	$27.87	Usually ships in 7-10 business days
3	B16-F5854-00-00	DIAPHRAGM, RESERVOIR	$4.55	$4.10	Usually ships in 7-10 business days
4	B16-F5852-00-00	CAP, RESERVOIR	$8.49	$7.64	Usually ships in 7-10 business days
5	B16-F585B-00-00	PLATE, DIAPHRAGM	$6.49	$5.84	Usually ships in 7-10 business days
6	B16-F5889-00-00	SEPARATOR	$0.75	$0.68	Usually ships in 7-10 business days
7	B16-F5867-00-00	BRACKET, MASTER CYLINDER	$10.49	$8.60	Usually ships in 7-10 business days
8	B16-F6332-00-00	BOLT	$5.49	$4.94	Usually ships in 7-10 business days
9	98707-04012-00 (replaces part # 98702-04012-00)	SCREW, FLAT HEAD	-	$1.94	10+ In-Stock
10	B16-F589F-10-00	BOLT, LEVER	$4.60	$4.14	Usually ships in 7-10 business days
11	95702-06500-00	NUT, WITH WASHER	$2.60	$2.24	10+ In-Stock
12	B16-F3922-00-00	LEVER, BRAKE	$31.99	$24.95	3 In-Stock
13	1HP-83980-03-00 (replaces part # 1HP-83980-01-00)	FRONT STOP SWITCH AS	$34.99	$27.29	4 In-Stock
14	98517-04012-00 (replaces part # 98502-04012-00)	SCREW,PANHEAD	$4.20	$3.61	10+ In-Stock
15	92990-04600-00 (replaces part # 92902-04600-00)	WASHER, PLATE	$0.99	$0.90	7 In-Stock
16	B16-F5872-02-00 (replaces part # B16-F5872-00-00)	HOSE, BRAKE 1	$22.99	$18.85	Usually ships in 7-10 business days
17	2GU-25866-00-00	CIRCLIP	$10.99	$8.57	3 In-Stock
18	1HP-F5873-01-00 (replaces part # 1HP-F5873-00-00)	HOSE, BRAKE 2	$72.99	$56.93	Usually ships in 7-10 business days
19	1HP-F5871-00-00	PIPE, BRAKE	$9.49	$8.54	Usually ships in 7-10 business days
20	90464-20010-00	CLAMP	$3.50	$3.01	5 In-Stock
21	90401-10015-00	BOLT, UNION	$12.49	$9.74	10+ In-Stock
22	90201-10118-00	WASHER, PLATE	$3.80	$3.27	10+ In-Stock
23	95817-06025-00 (replaces part # 95812-06025-00)	BOLT, FLANGE	$5.49	$4.28	10+ In-Stock
24	3B4-25886-00-00	HOLDER, BRAKE HOSE	$7.49	$6.74	6 In-Stock
25	95817-06012-00 (replaces part # 95812-06012-00)	BOLT, FLANGE	$1.95	$1.77	10+ In-Stock
26	2PG-25876-00-00	HOLDER, BRAKE HOSE 2	$3.55	$3.20	Usually ships in 7-10 business days
27	95817-06012-00 (replaces part # 95812-06012-00)	BOLT, FLANGE	$1.95	$1.77	10+ In-Stock
